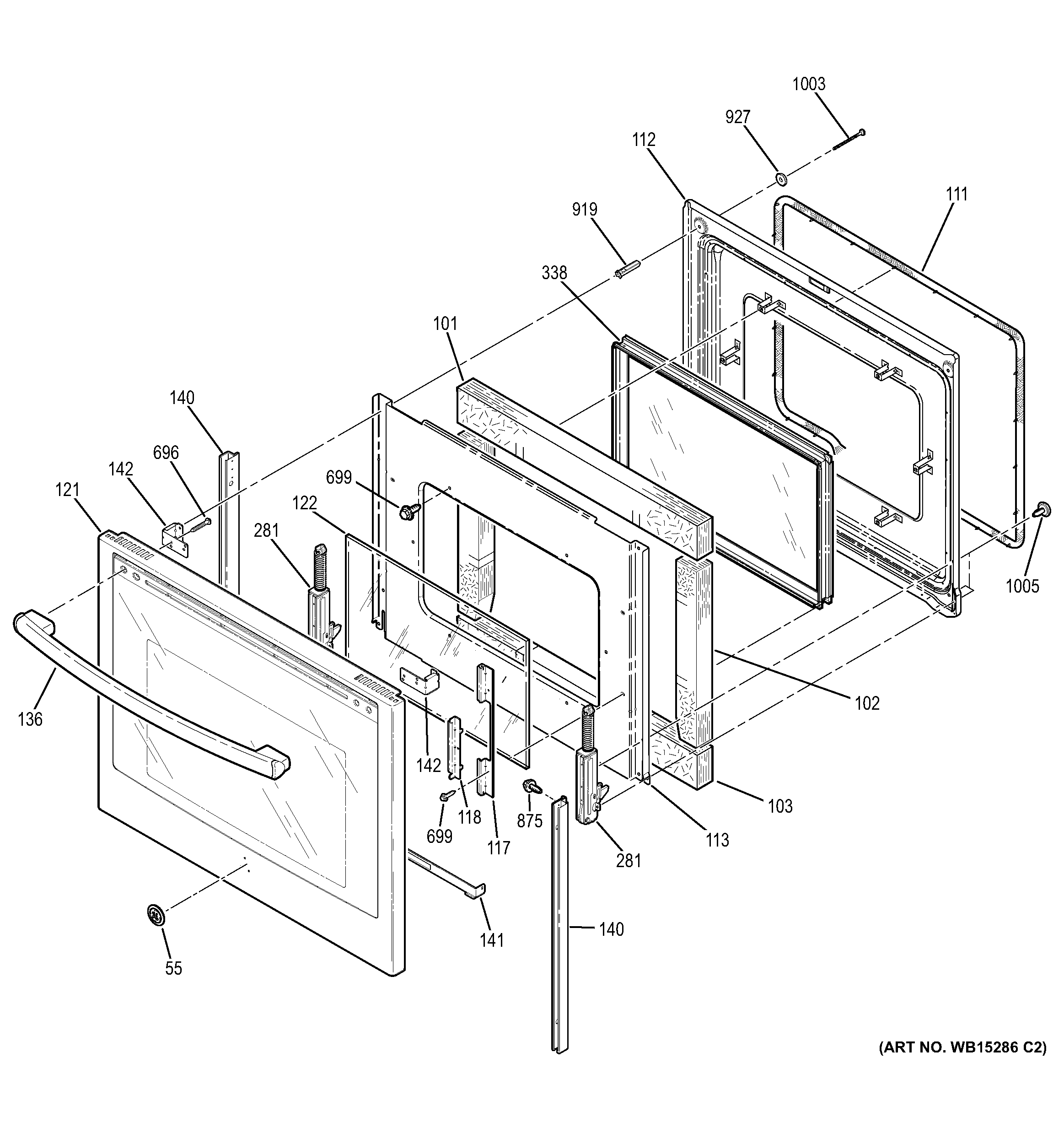

JB750EF1ES DOOR

Products

Position	Product
55	WB02T10589 GE Range Gray Nameplate Badge
101	WB35T10077 GE Oven Door Insulation
102	INSULATION DOOR
103	WB35T10255 GE Oven Insulation Door
111	GASKET OVEN
112	WB55T10203 GE Oven Door Liner Assembly (Black)
113	WB56T10178 GE Oven Door Insulation Retainer
117	WB56T10320 GE Oven Glass Door Retainer
118	WB56T10321 GE Oven Door Glass Retainer
121	PANEL ASM BONDED HE (TZ)
122	WB57K5230 GE Oven Inner Glass Door
136	HANDLE AND END CAP ASM
140	WB56T10287 GE Oven Door Side Frame (Black)
142	WB02T10611 GE Bracket
281	WB10T10143 GE Oven Hinge Assembly
338	WB56T10105 GE Oven Inner Window Assembly
696	WB01T10103 GE Oven Screw 10-16 AB HXW .532
699	WB1M1 GE Oven Screw
875	WZ4X245D GE Screw Package
919	SPACER
927	WB1X119D GE Oven Range Washer
1003	WB02X24268 GE Oven Screw 10-32 CA TRT15
1005	WB01T10008 GE Oven Screw 10-32
