JB755BJ6TS CONTROL PANEL

JB755BJ6TS CONTROL PANEL

Written by

in

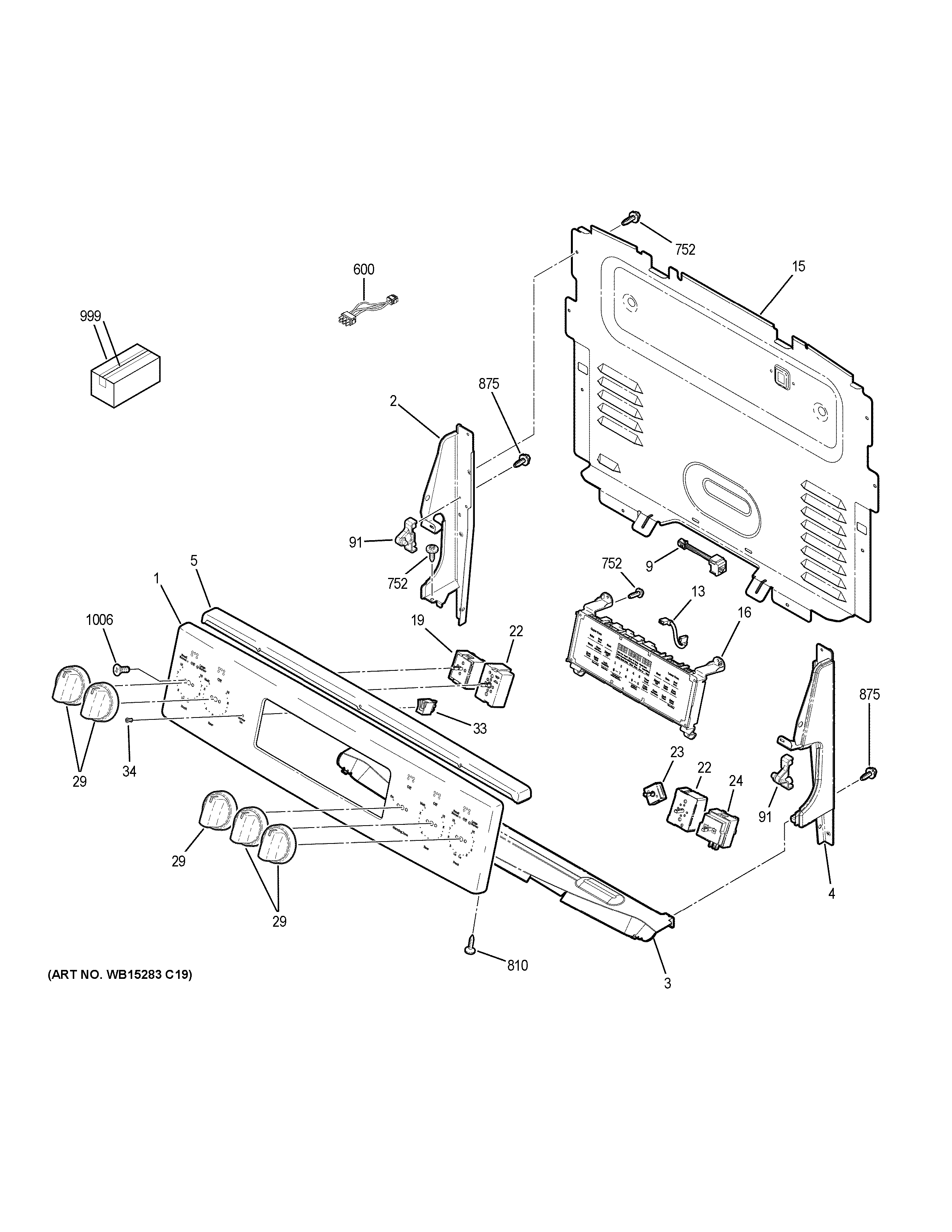

JB755BJ6TS CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL TRIM ASM TS
1LABEL WIRE DIAGRAM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
5WB07X28582 GE Oven Top Trim Assembly
9WB27X30706 GE RJ45 Connector Harness
13WB18X30704 GE Jumper
15WB34X29576 GE Oven Back Control Panel Cover
16WB27X33125 GE Oven Control and Overlay Assembly
19WB24X25013 GE Oven Control Infinite Switch
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X25302 GE Oven Rotary Switch
24WB24X25152 GE Oven Infinite Switch Control
29WB03X29165 GE Oven Knob Assembly
33WB25X20005 GE Oven Light Indicator Pilot
34WB25T10103 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
600WB18X32663 GE Maintop and Infrared Switches
752WB1K5200 GE Oven Screw 340531
810WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WH2X930 GE Screw
999PM MANUAL MINI & WD ASM
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM QUICK GUIDE
999PM INSTALL INSTRUCTIONS
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
