JB755EJ9ES CONTROL PANEL

JB755EJ9ES CONTROL PANEL

Written by

in

JB755EJ9ES CONTROL PANEL

Products

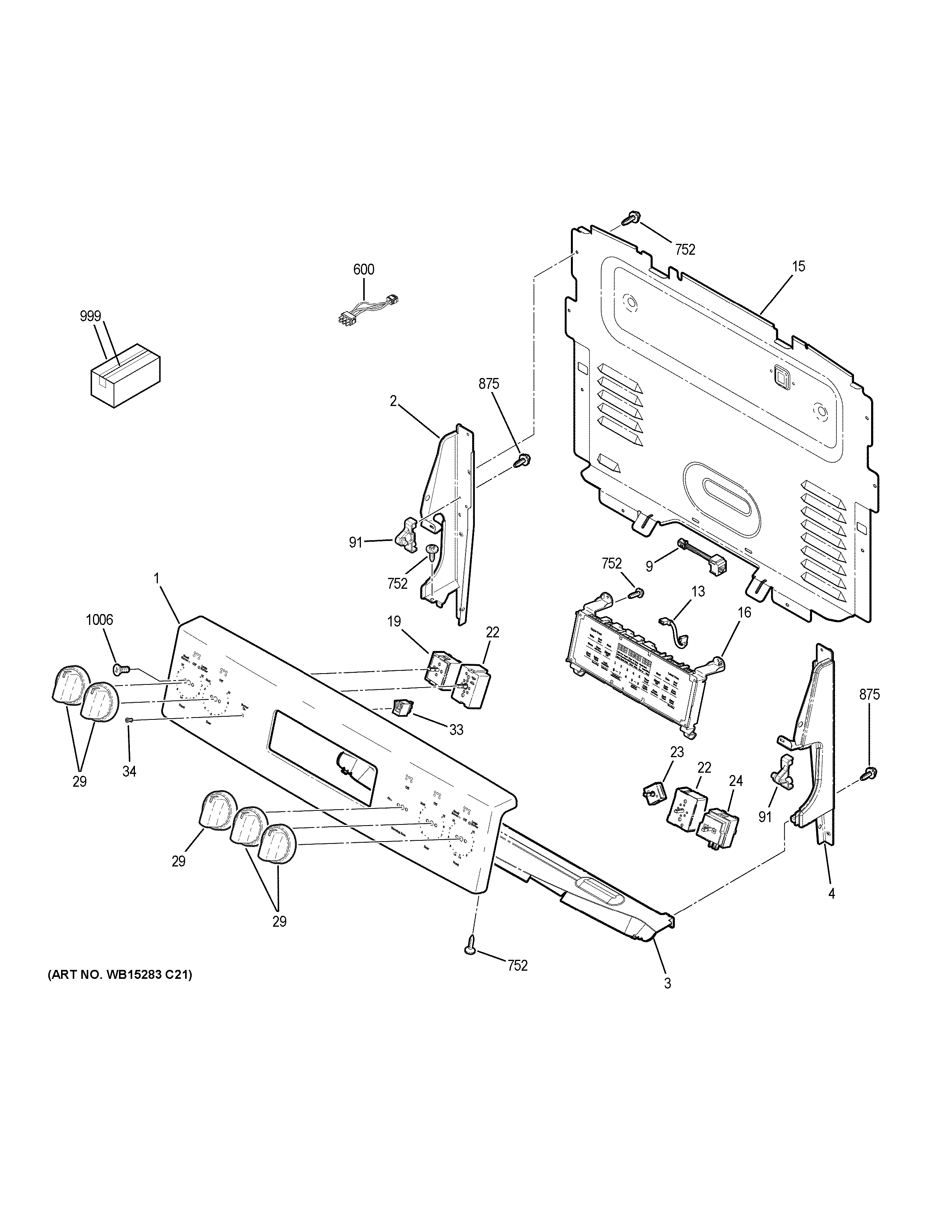

PositionProduct
1LABEL WIRE DIAGRAM
1WB07X32011 GE Oven Control Panel Trim Assembly TZ
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
9WB27X30706 GE RJ45 Connector Harness
13WB18X30704 GE Jumper
15WB34X29576 GE Oven Back Control Panel Cover
16WB27X33125 GE Oven Control and Overlay Assembly
19WB24X25013 GE Oven Control Infinite Switch
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X25302 GE Oven Rotary Switch
24WB24X25152 GE Oven Infinite Switch Control
29WB03X24965 GE Oven Infinite Control Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
600WB18X32663 GE Maintop and Infrared Switches
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999PM MANUAL MINI & WD ASM
999PM INSTRUCTIONS INSTALL
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM QUICK GUIDE
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
