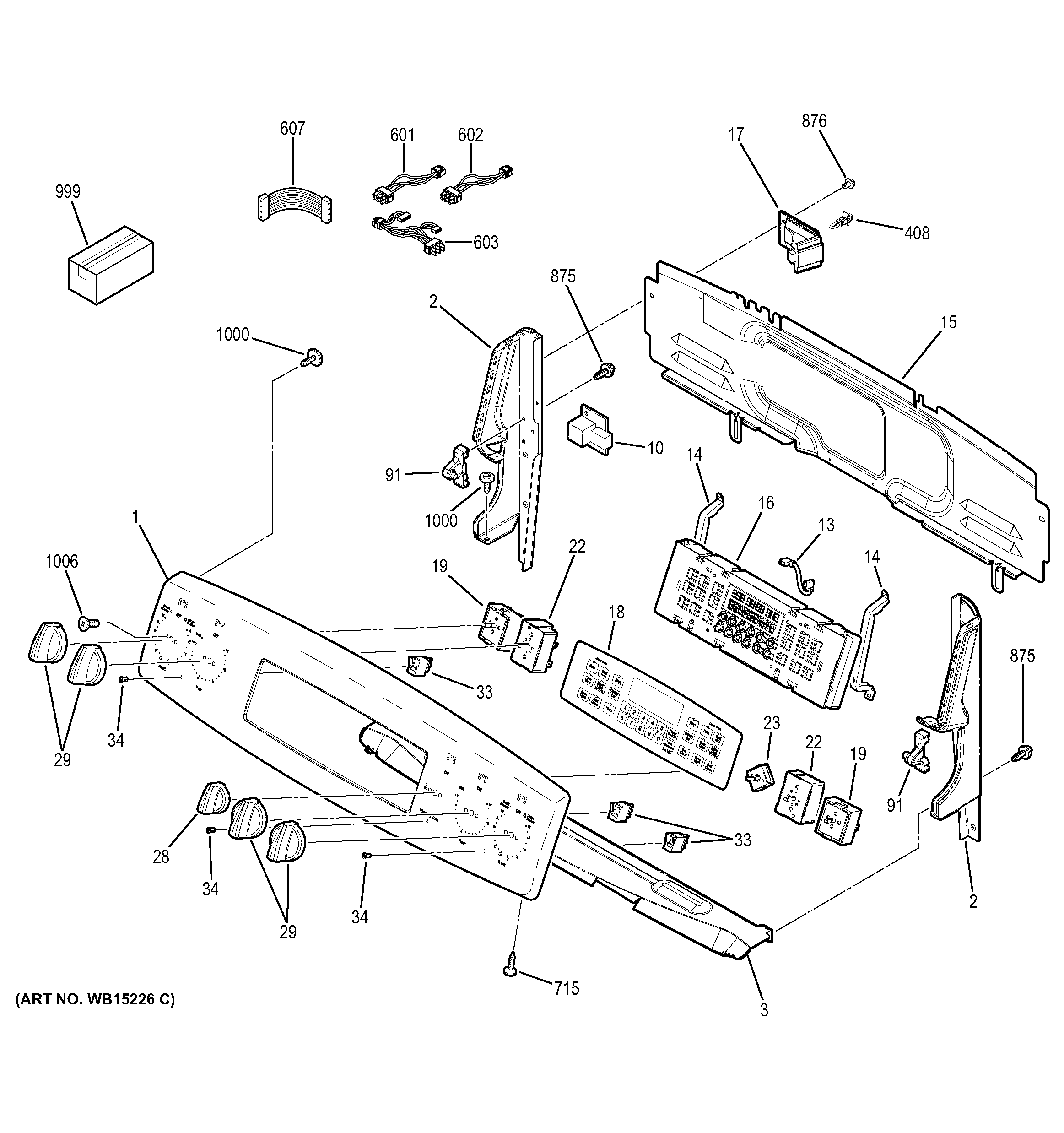

JB850DF1BB CONTROL PANEL

JB850DF1BB CONTROL PANEL

Written by

in

JB850DF1BB CONTROL PANEL

Products

PositionProduct
1GEN WB07X20007
1GEN 229C6305P001
2WB07X27823 GE End Plate LT (Black)
2WB36T11204 GE Oven Right End Plate
3WB02X20711 GE Oven Heat Shield Back Guard
10WB27X20933 GE Oven RJ45 Housing Assembly
13WB18X30704 GE Jumper
14GEN WB34X20003
14GEN WB34X20004
15WB34X20932 GE Control Cover
16WB27X25359 GE Oven Electronic Control Board
18FACEPLATE GRAPHICS (BK)
19WB24T10153 GE Oven Infinite Switch Control
22WB24T10029 GE Oven Infinite Burner Switch
23GEN WB24T10181
28KNOB ASM
29WB03T10332 GE Stove Burner Control Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25T10103 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
408WB02T10477 GE Standoff PCB
601WB18X20001 GE Infinite Wire Harness
602GEN WB18T10497
603HARNESS WIRE UI COM
607GEN WB18X20006
715WD2X432 GE Dishwasher Screw
875WH2X930 GE Screw
999GEN 31-17048
999INSTR INSTALL OVN DOOR
999GEN 49-80597
999GEN 31-10781
999GEN 31-10816
999GEN 49-80633
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WB1X500D GE Oven Screw Package
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
