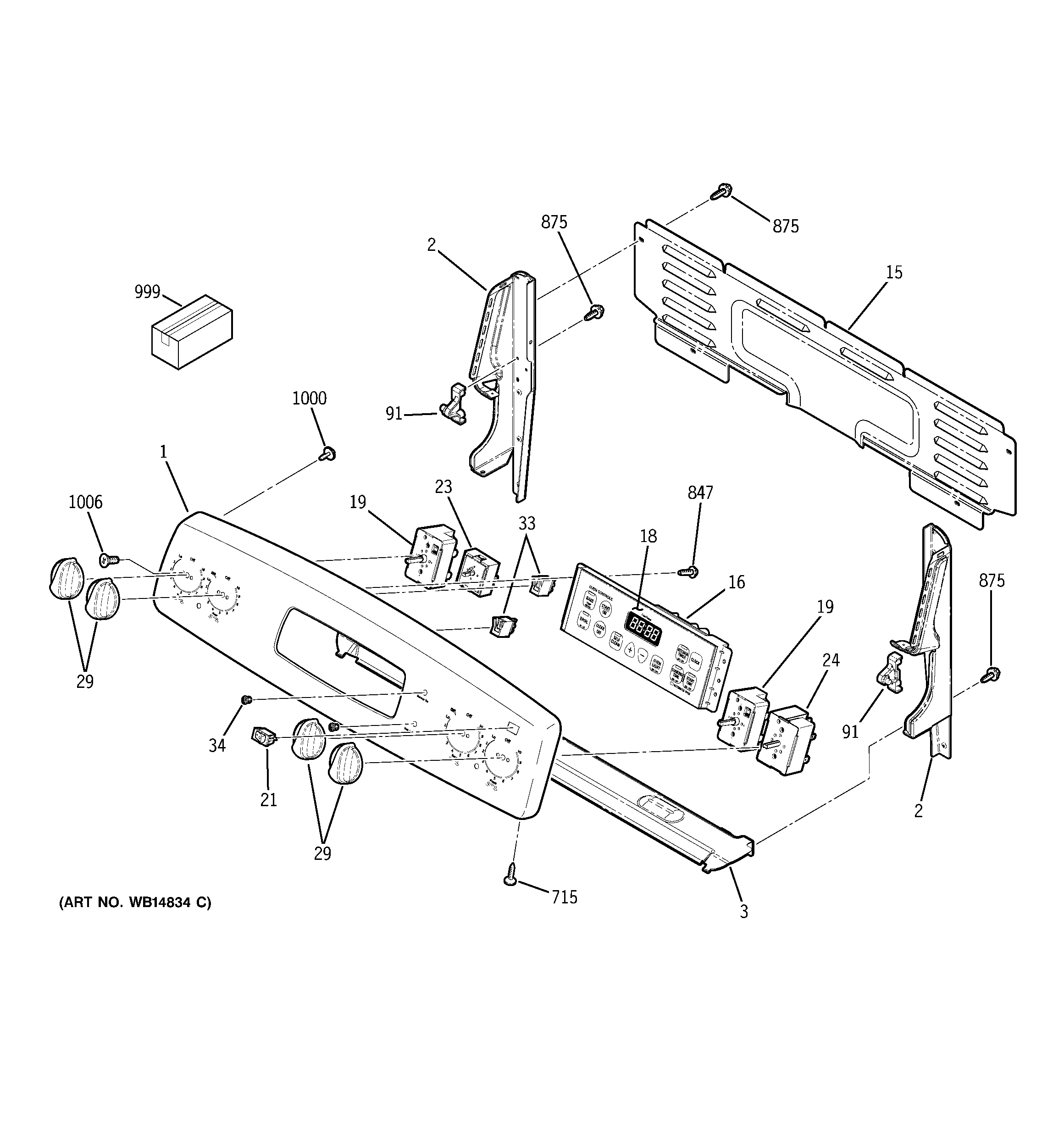

JB850DP1BB CONTROL PANEL

Products

Position	Product
1	GEN WB36T11230
1	GEN WB36T11231
2	GEN WB36T11042
2	GEN WB36T11043
2	GEN WB36T11040
2	WB36T11039 GE Oven End Plate Right (Black)
3	SHIELD HEAT BKGD
15	GEN WB02T10499
16	WB27T11148 GE Oven Control
18	GEN WB27T11181
18	GEN WB27T11182
19	WB24T10146 GE Oven Surface Element Control
21	WB24T10165 GE Oven Rocker Switch Element Black
21	WB24T10167 GE Oven Rocker Switch Element (White)
23	WB24T10145 GE Oven Burner Switch
24	INFINITE CONTROL SWITCH
29	WB03T10282 GE Oven Infinite Knob (White)
29	KNOB INFINITE (BK)
29	WB03T10284 GE Range Infinite Burner Knob Cooktop Element
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
91	WB10T10116 GE Range Top Hinge Pin
715	WD2X432 GE Dishwasher Screw
847	WB1X500D GE Oven Screw Package
875	WZ4X245D GE Screw Package
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	GEN 49-80602
999	GEN 31-10677
999	GEN 31-14832
1000	WB01T10016 GE Oven Screw 8-18 AB Hex
1006	WB01T10053 GE Oven 8-32 TPT FLR Screw
