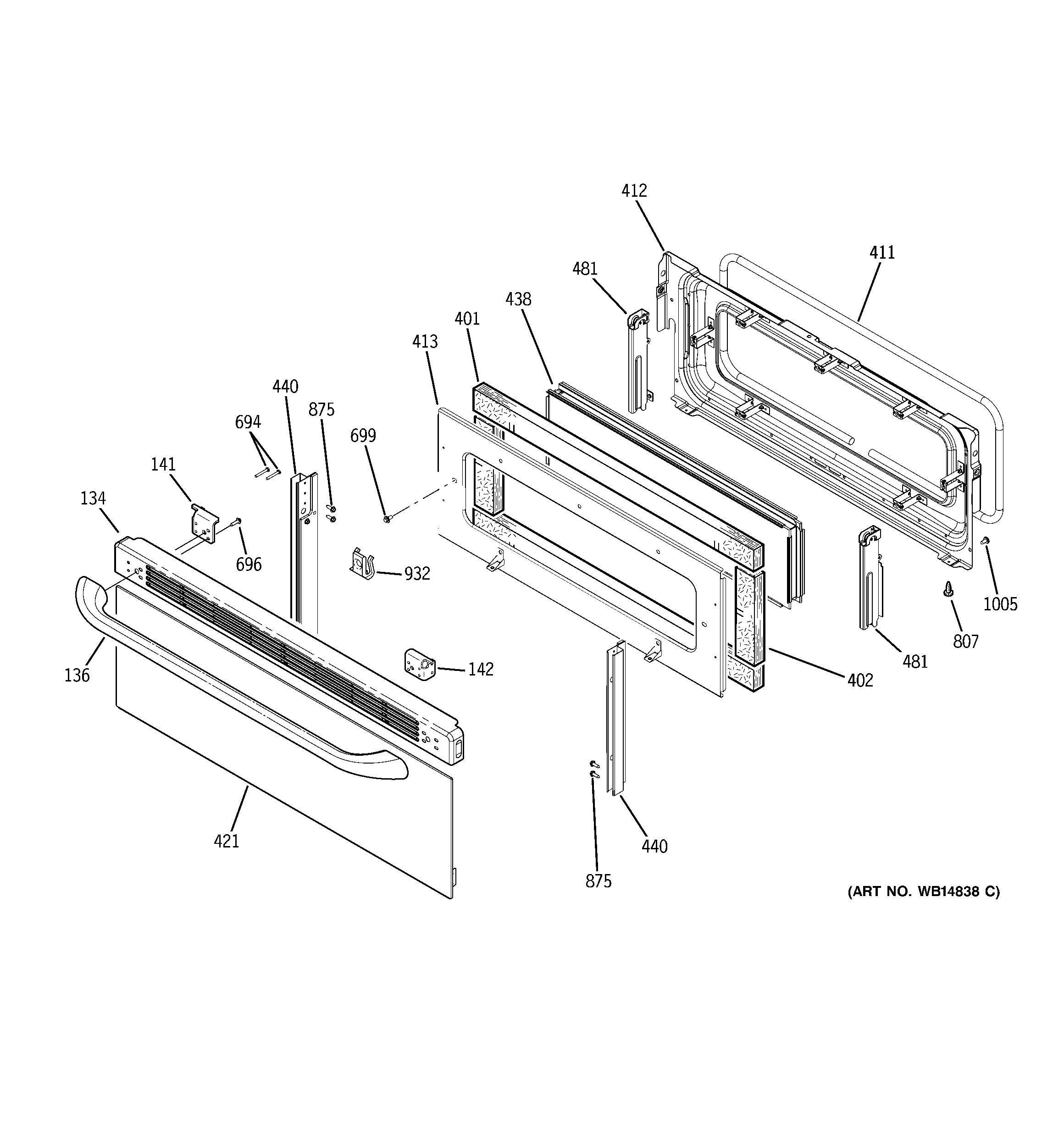

JB850DP1WW UPPER DOOR

JB850DP1WW UPPER DOOR

Written by

in

JB850DP1WW UPPER DOOR

Products

PositionProduct
134WB07X27236 GE Oven Vent Door Trim (White)
134WB07X27233 GE Oven Trim Vent Door (Black)
136WB15T10188 GE Oven Handle White
136WB15T10187 GE Oven Handle Black
141WB34X42027 GE Right Hand Door Trim Bracket
142WB34X42670 GE Left Hand Door Handle Bracket
401WB35T10167 GE Oven Door Top Insulation Up
402WB35T10168 GE Oven Upper Side Insulation Door
412WB55T10186 GE Oven Door Lining Assembly
412GEN WB04T10067
413WB02T10371 GE Oven Retainer Insulation
421GEN WB56T10296
421GEN WB56T10298
438WB56T10244 GE Oven Upper Window Pack Assembly
440GEN WB56T10305
440GEN WB56T10302
481WB10T10104 GE Oven Hinge Assembly
481WB10T10105 GE Oven Hinge Assembly
694WB1K5157 GE Oven Black Screw
696WB1K5156 GE Oven Screw
699WB1M1 GE Oven Screw
807WB1K5165 GE Oven Black Screw
807WR01X10788 GE White Screw
875WZ4X245D GE Screw Package
932GEN WB02T10497
1005WB01T10008 GE Oven Screw 10-32
