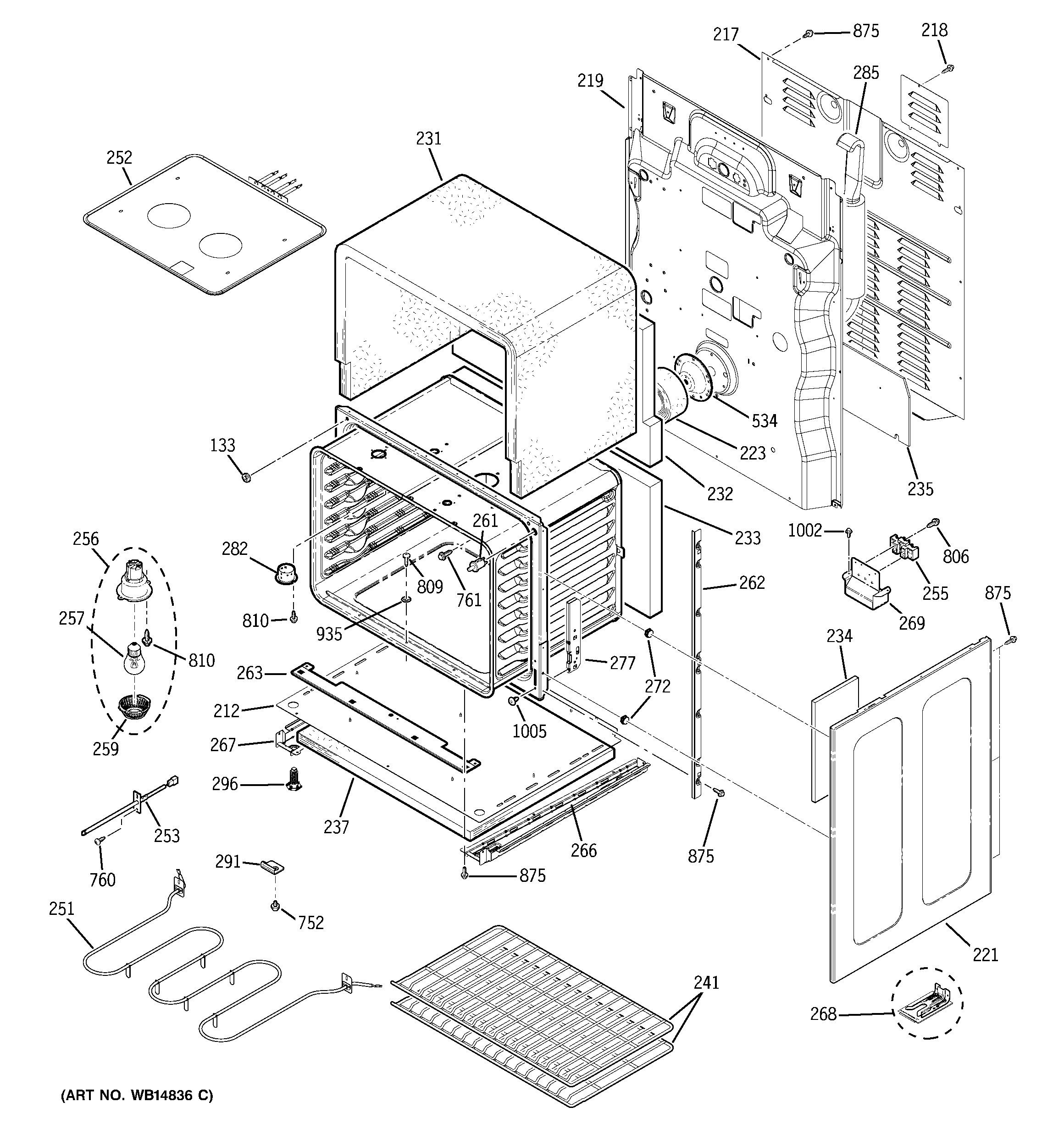

JB850SP2SS LOWER OVEN

JB850SP2SS LOWER OVEN

Written by

in

JB850SP2SS LOWER OVEN

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
212GEN WB39T10015
217GEN WB02T10476
218GEN WB02T10355
219WB02T10507 GE Main Back Panel
221WB56X28881 GE Oven Side Panel Black
231WB35X25049 GE Upper Insulation Wrapper
231WB35T10170 GE Oven Insulation Wrapper
232WB35T10223 GE Oven Back Insulation
233WB35X25122 GE Back Insulation
233WB35X25048 GE Back Insulation
234GEN WB35T10173
235GEN WB35T10227
237GEN WB35T10022
241WB48T10021 GE Oven Rack
251WB44X45493 GE Lower Bake Assembly
252GEN WB44T10102
253WB21X22134 GE Oven Sensor Assembly
255WB17T10011 GE Oven Terminal Block
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261WB24T10160 GE Oven High AMP SPDT Switch
262GEN WB07T10621
263GEN WB02T10370
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269GEN WB02T10492
272WB02T10034 GE Oven Body Side Support
277GEN WB10T10083
282WB38X33648 GE Vent Tube
285GEN WB38T10034
291GEN WB02X9152
296WB02X10521 GE Oven Leveling Leg
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
935WB1K5174 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
