JB850SP3SS UPPER DOOR

JB850SP3SS UPPER DOOR

Written by

in

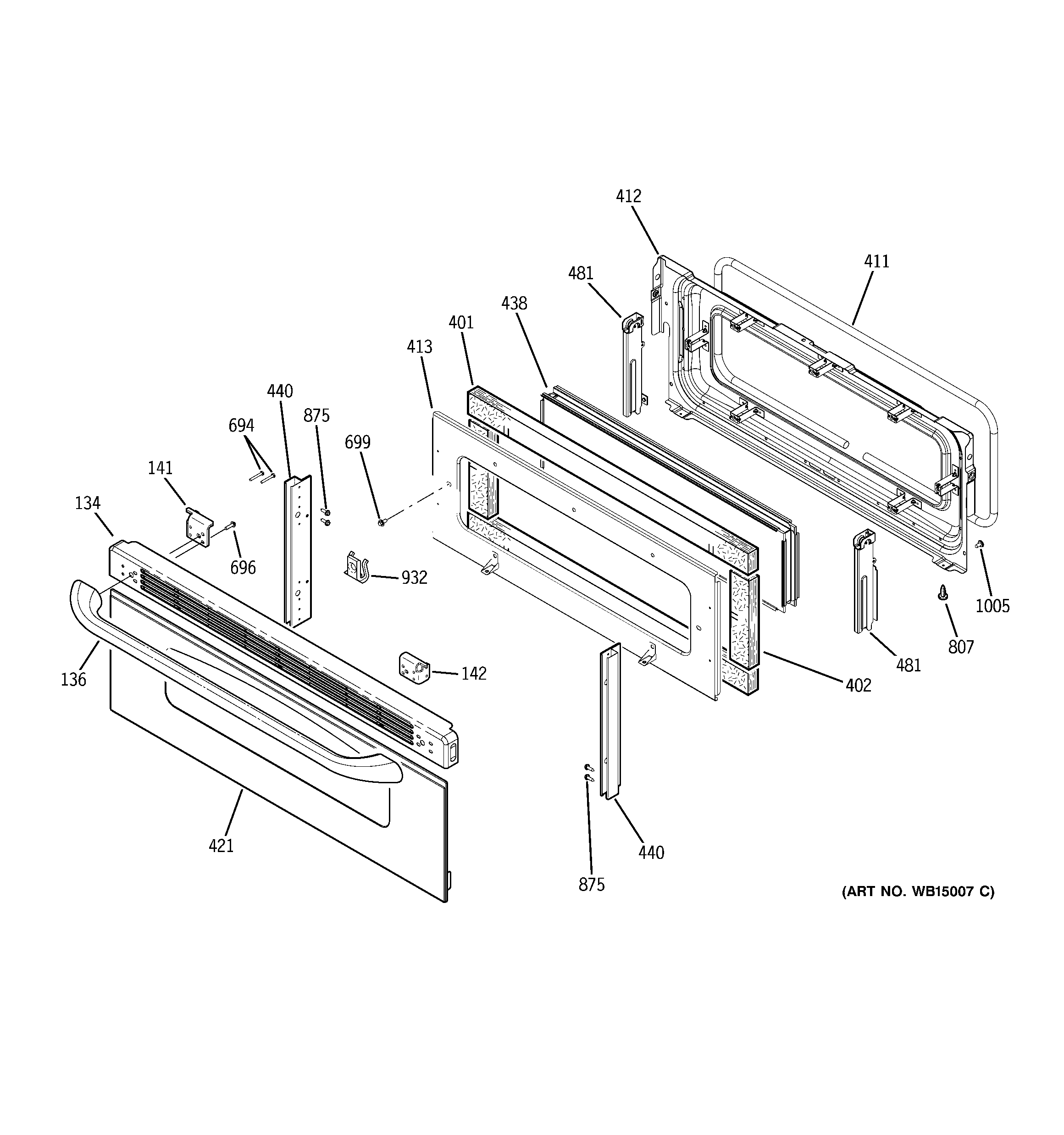

JB850SP3SS UPPER DOOR

Products

PositionProduct
134WB07X27233 GE Oven Trim Vent Door (Black)
136WB15T10163 GE Oven Stainless Steel Handle
141WB34X42670 GE Left Hand Door Handle Bracket
142WB34X42027 GE Right Hand Door Trim Bracket
401WB35T10167 GE Oven Door Top Insulation Up
402WB35T10168 GE Oven Upper Side Insulation Door
411WB35X27911 GE Oven Door Gasket
412WB55T10186 GE Oven Door Lining Assembly
413WB56T10318 GE Oven Insulation Retainer
421GEN WB56T10300
438WB56T10244 GE Oven Upper Window Pack Assembly
440GEN WB56T10313
481WB10T10104 GE Oven Hinge Assembly
481WB10T10105 GE Oven Hinge Assembly
694WB1X1116 GE Oven Screw
696WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
699WB1M1 GE Oven Screw
807WB1K5165 GE Oven Black Screw
875WZ4X245D GE Screw Package
932GEN WB02T10497
1005WB01T10008 GE Oven Screw 10-32
