JB855SP4SS UPPER OVEN

JB855SP4SS UPPER OVEN

Written by

in

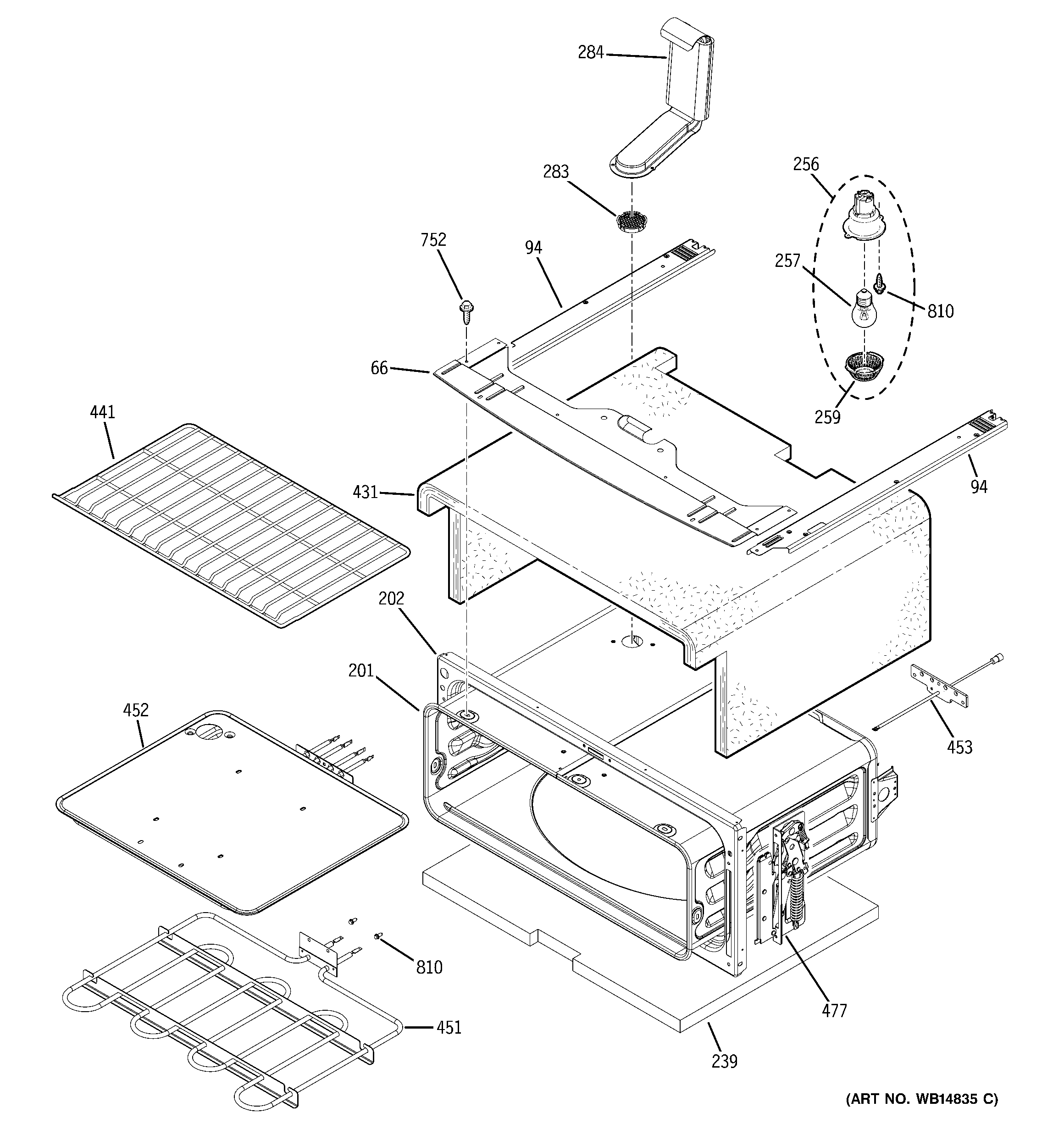

JB855SP4SS UPPER OVEN

Products

PositionProduct
66WB34T10125 GE Enclosure Raptor
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
201GEN WB63T10148
202GEN WB63T10157
239WB35T10235 GE Middle Insulation
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
283WB38T10033 GE Oven Smoke Eliminator
284WB38T10035 GE Vent Tube Assembly
431WB35X25049 GE Upper Insulation Wrapper
441GEN WB48T10073
451WB44X45487 GE Bake Element
452WB44X45489 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
477WB10T10100 GE Oven Right-Hand Hinge Receiver
477WB10T10101 GE Oven Upper Receiver Hinge
752WB1K5200 GE Oven Screw 340531
810WB1X1130 GE Oven Screw 10-32
