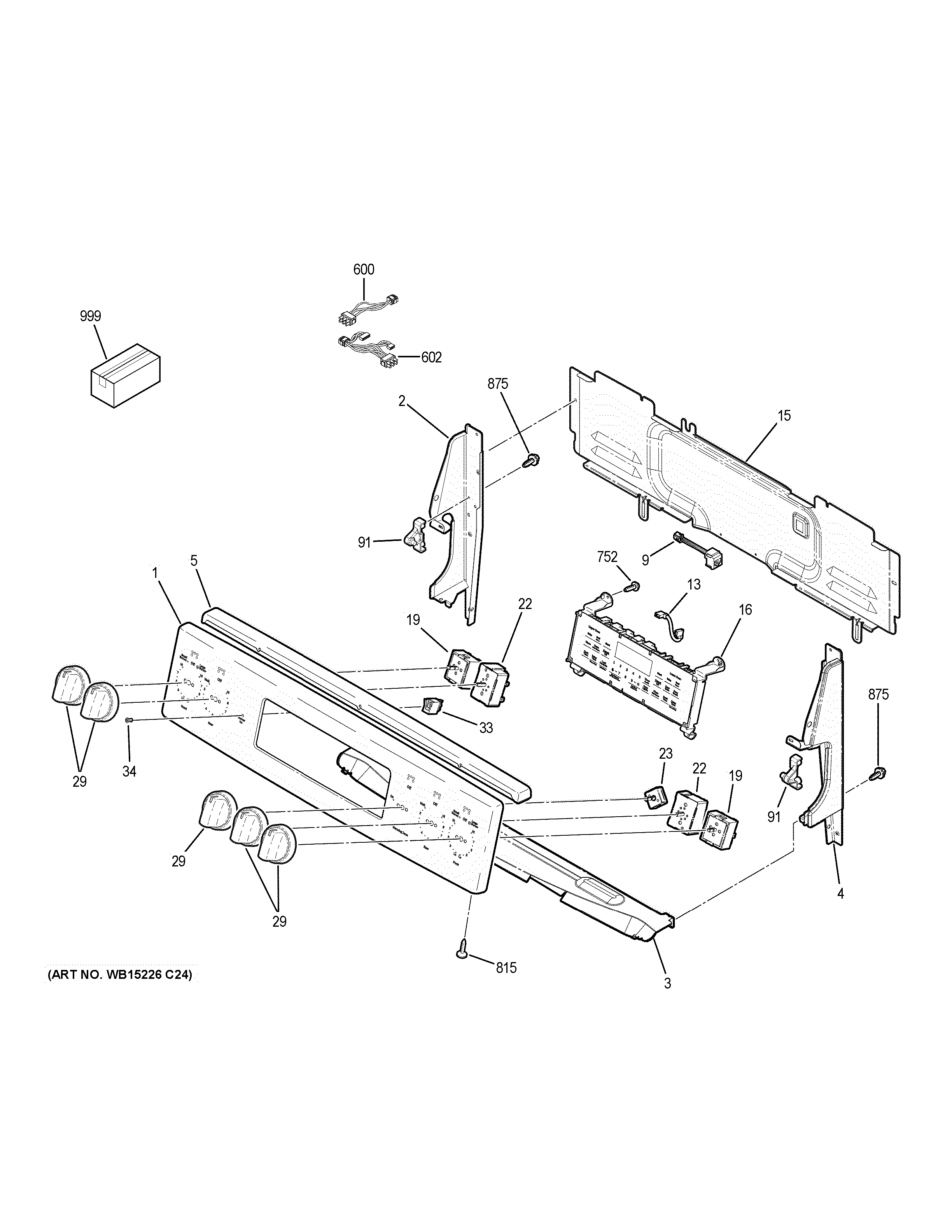

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB07X30072 GE Oven Control Panel Trim Assembly |
| 2 | WB07X29534 GE Oven Left Hand End Plate |
| 3 | WB34X28565 GE Oven Heat Backguard Shield |
| 4 | WB07X29535 GE Oven Right Hand End Plate |
| 5 | WB07X28582 GE Oven Top Trim Assembly |
| 9 | WB27X30706 GE RJ45 Connector Harness |
| 13 | WB18X30704 GE Jumper |
| 15 | WB34X25565 GE Oven Control Cover |
| 16 | WB27X33133 GE Oven Control and Overlay Assembly |
| 19 | WB24X25013 GE Oven Control Infinite Switch |
| 22 | WB24T10029 GE Oven Infinite Burner Switch |
| 23 | WB24X25302 GE Oven Rotary Switch |
| 29 | WB03X29165 GE Oven Knob Assembly |
| 33 | WB25X20005 GE Oven Light Indicator Pilot |
| 34 | WB25T10103 GE Oven Lens |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 600 | WB18X32781 GE Infinite Switch Harness |
| 602 | WB18X32734 GE UI Connection Harness Wire |
| 752 | WB1K5200 GE Oven Screw 340531 |
| 815 | WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel |
| 875 | WH2X930 GE Screw |
| 999 | PM QUICK GUIDE |
| 999 | INSTRUCTION INSTALL |
| 999 | MANUAL U&C TIP SHEET |
| 999 | PM INSTRUCTIONS INSTALL |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
