JB860BJ8TS UPPER OVEN

JB860BJ8TS UPPER OVEN

Written by

in

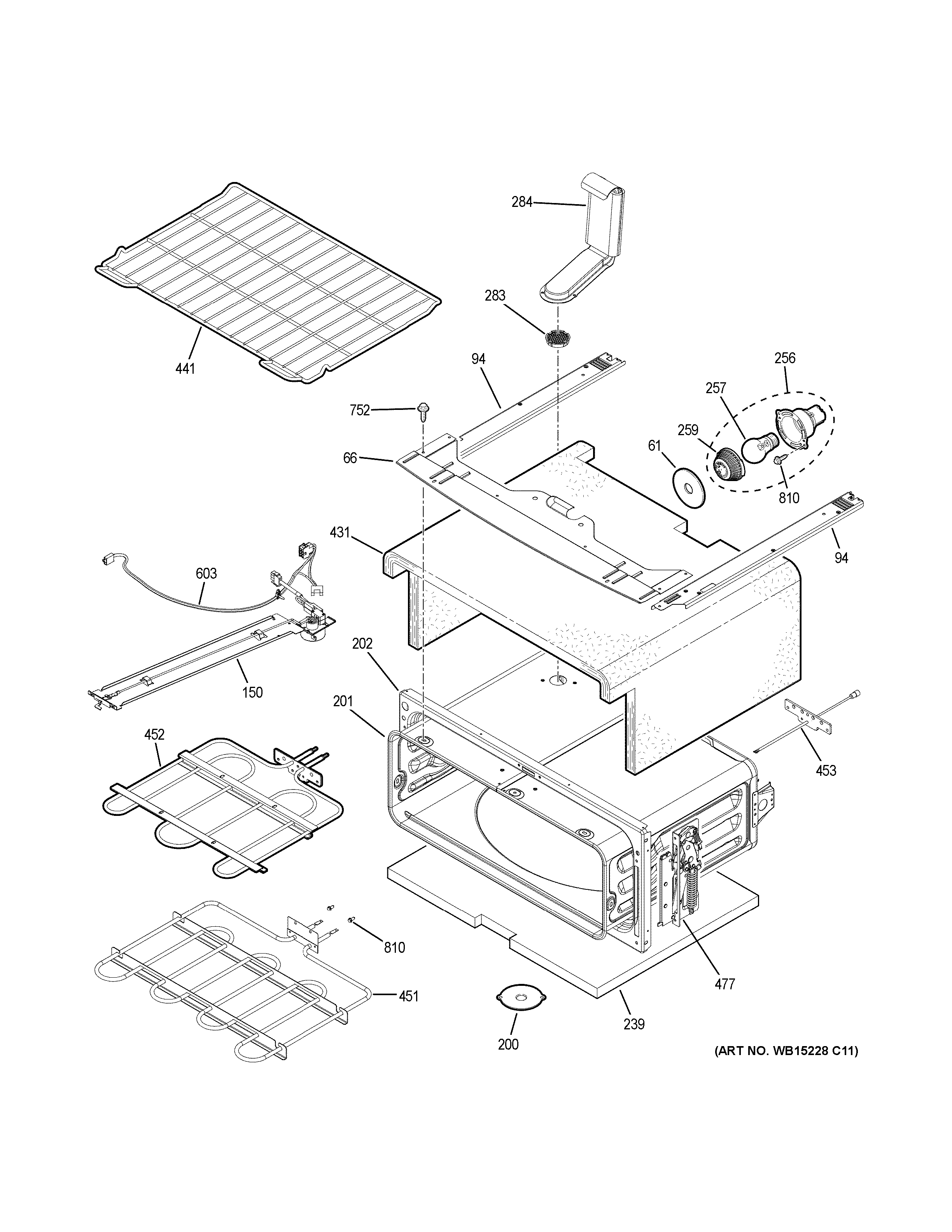

JB860BJ8TS UPPER OVEN

Products

PositionProduct
61GEN WB04T10021
66WB34X30165 GE Range Top Enclosure
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
150WB10X25238 GE Oven Latch Assembly
200WB34X20009 GE Cover Hole Assembly (Black)
201WRAPPER OVN CAV ASM
202WB63X20010 GE Front Upper Frame (Black)
239WB35T10235 GE Middle Insulation
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
283WB38T10033 GE Oven Smoke Eliminator
284WB38T10035 GE Vent Tube Assembly
431WB35X25049 GE Upper Insulation Wrapper
441WB48T10072 GE Oven Rack
451WB44X45487 GE Bake Element
452WB44X45489 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
477WB10T10105 GE Oven Hinge Assembly
477WB10T10104 GE Oven Hinge Assembly
603WB18X32732 GE Plunger Switch Harness
752WB1K5200 GE Oven Screw 340531
810WB01M10002 GE Oven Screw
