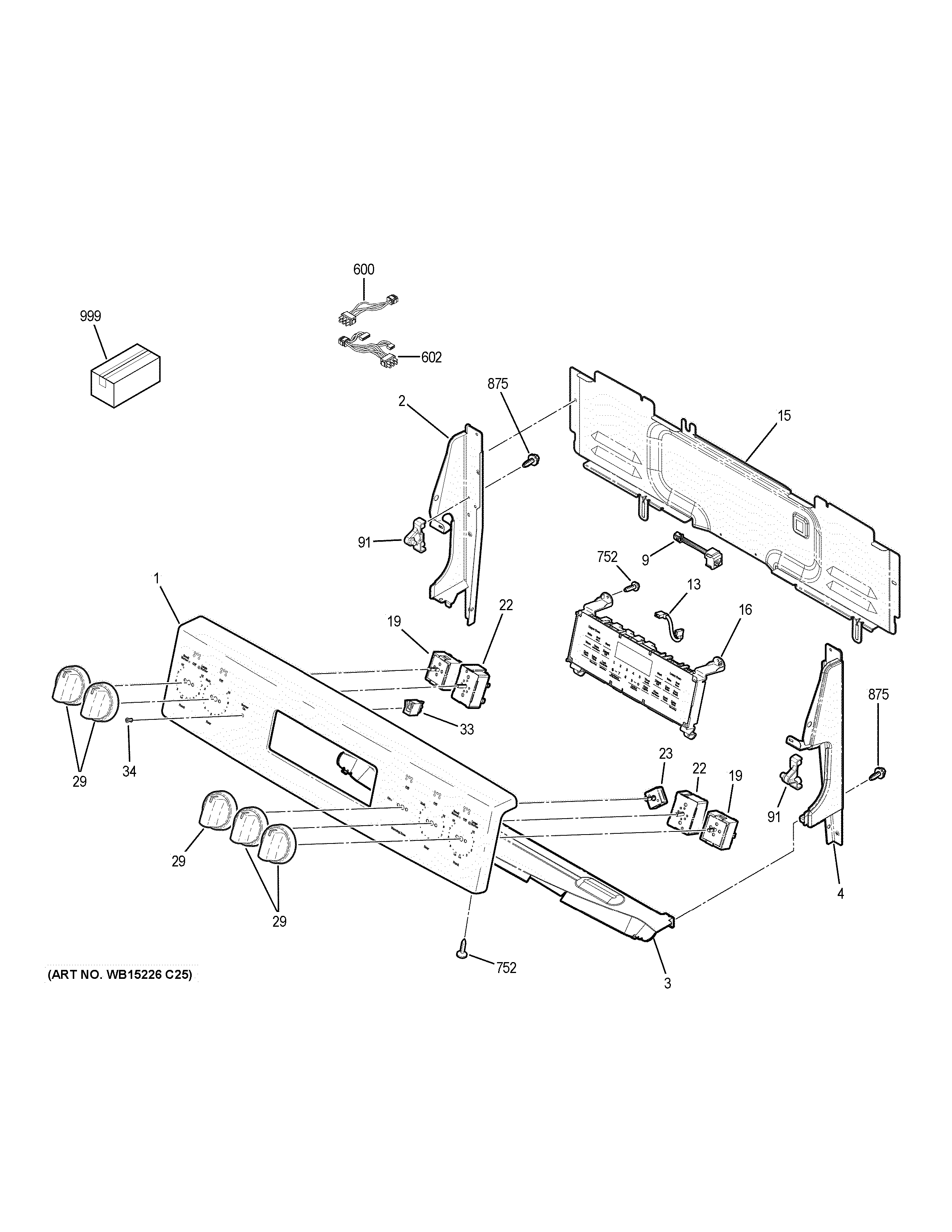

JB860DJ7BB CONTROL PANEL

Products

Position	Product
1	CONTROL PANEL TRIM ASM BK
1	LABEL WIRE DIAGRAM
2	WB07X27830 GE Oven End Plate Left (Black)
3	WB34X28565 GE Oven Heat Backguard Shield
4	WB07X27826 GE Oven Right End Plate (Black)
9	WB27X30706 GE RJ45 Connector Harness
13	WB18X30704 GE Jumper
15	WB34X25565 GE Oven Control Cover
16	WB27X33139 GE Oven Control and Overlay Assembly
19	WB24X25013 GE Oven Control Infinite Switch
22	WB24T10029 GE Oven Infinite Burner Switch
23	WB24X25302 GE Oven Rotary Switch
29	WB03X24904 GE Oven Infinite Control Knob
33	WB25X20005 GE Oven Light Indicator Pilot
34	WB25X24023 GE Oven Indicator Light Lens
91	WB10T10116 GE Range Top Hinge Pin
600	WB18X32781 GE Infinite Switch Harness
602	WB18X32734 GE UI Connection Harness Wire
752	WB1K5200 GE Oven Screw 340531
875	WH2X930 GE Screw
999	PM QUICK GUIDE
999	INSTRUCTION INSTALL
999	MANUAL U&C TIP SHEET
999	PM INSTRUCTIONS INSTALL
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
