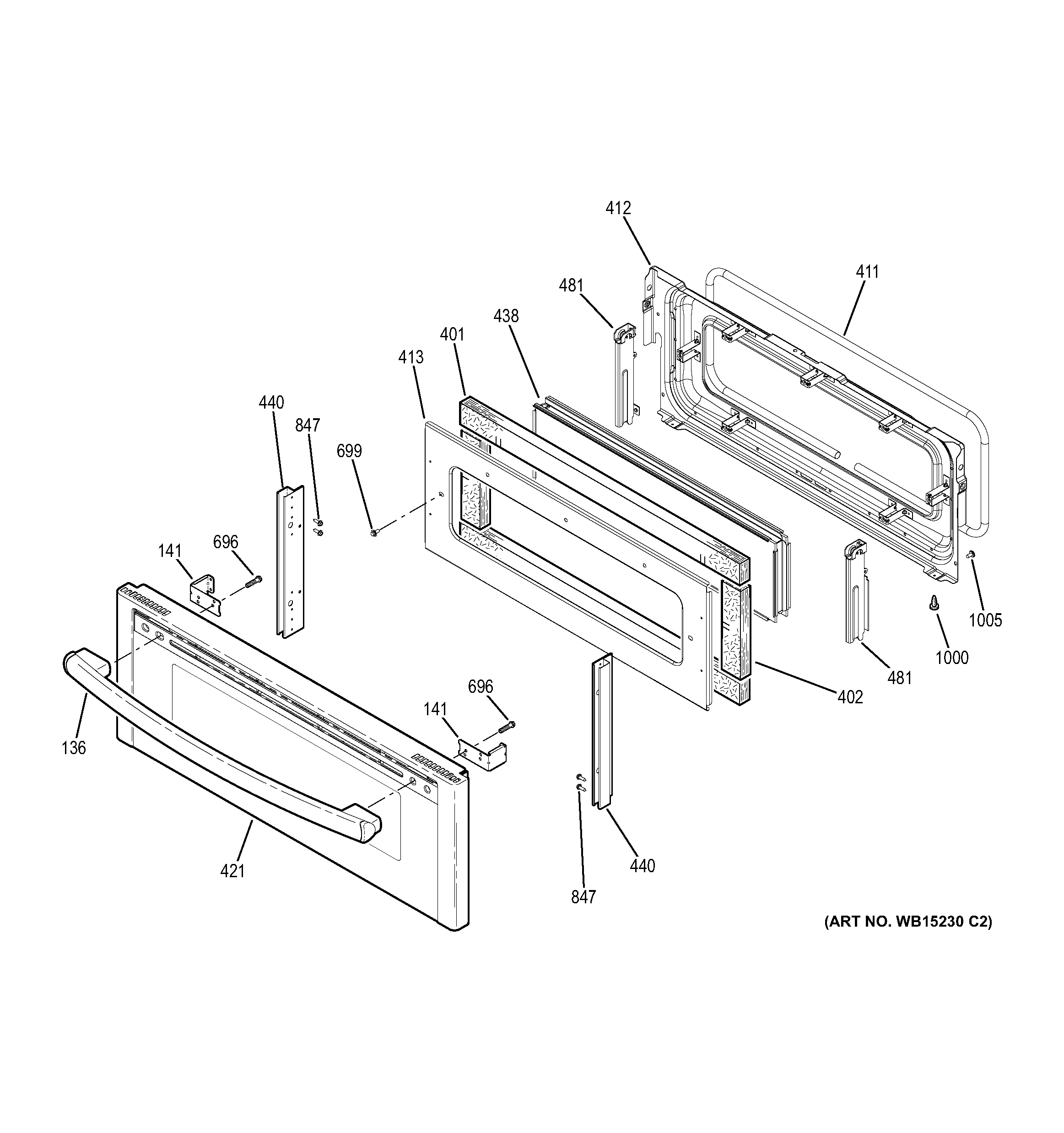

JB870DF1BB UPPER DOOR

JB870DF1BB UPPER DOOR

Written by

in

JB870DF1BB UPPER DOOR

Products

PositionProduct
136WB15X21771 GE Oven Handle Black
141WB37X20012 GE Handle Spacer Bracket
401WRAPPER OVN CAV ASM
401WB35T10167 GE Oven Door Top Insulation Up
402WB35T10168 GE Oven Upper Side Insulation Door
402WB63X20010 GE Front Upper Frame (Black)
411WB04T10077 GE Range Oven Door Gasket
412WB63X20854 GE Oven Door Liner Assembly
413WB56T10318 GE Oven Insulation Retainer
421GEN WB56X20148
438WB56T10244 GE Oven Upper Window Pack Assembly
440WB56X21404 GE Door Side Frame
481WB10T10100 GE Oven Right-Hand Hinge Receiver
481WB10T10101 GE Oven Upper Receiver Hinge
696SCREW
699WB1M1 GE Oven Screw
847WZ4X245D GE Screw Package
1000WB1X500D GE Oven Screw Package
1005WB01T10008 GE Oven Screw 10-32
