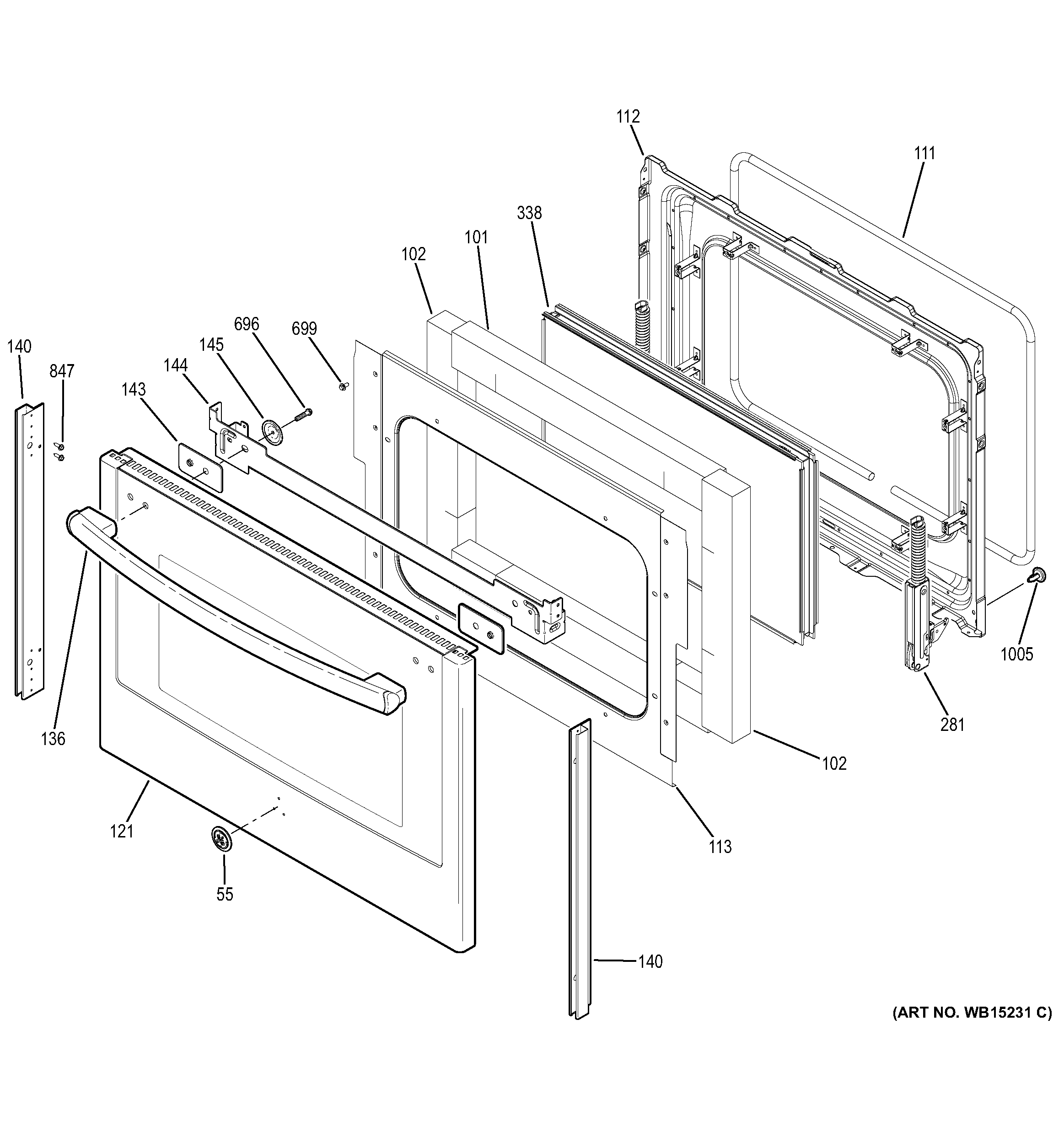

JB870DF2BB LOWER DOOR

Products

Position	Product
55	WB02T10589 GE Range Gray Nameplate Badge
101	WB35X30052 GE Oven Door Insulation Assembly
102	WB35K10025 GE Oven Side Door Insulation
111	WB04T10076 GE Oven Door Gasket
112	WB63X20852 GE Oven Door Liner Assembly
113	WB02T10371 GE Oven Retainer Insulation
121	PANEL ASM BONDED LWR(BK)
136	WB15X21771 GE Oven Handle Black
140	WB56X21397 GE Door Frame Side
143	WB02X21398 GE Ran Handle Bracket Spacer
144	BRACKET HANDLE DOOR
145	SPACER DR HANDLE
281	WB10T10106 GE Oven Right Door Hinge
281	WB10T10107 GE Oven Left Door Hinge
338	WB56X22160 GE Stove Inner Door Glass Assembly
696	SCREW
699	WB1M1 GE Oven Screw
847	WZ4X245D GE Screw Package
1005	WB01T10008 GE Oven Screw 10-32
