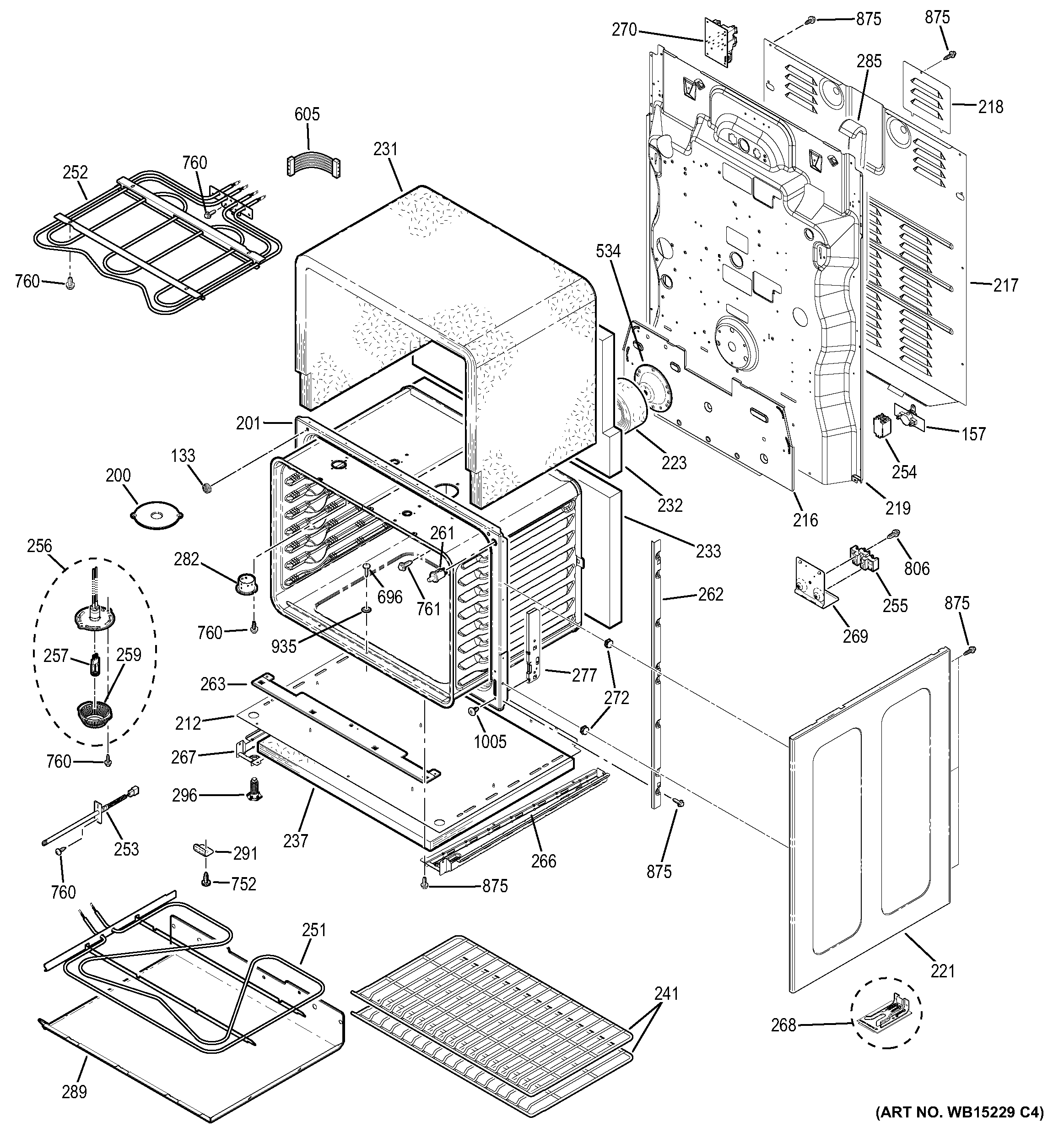

JB870DF2BB LOWER OVEN

JB870DF2BB LOWER OVEN

Written by

in

JB870DF2BB LOWER OVEN

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
157WB24T10105 GE Oven Runaway TCO
200WB34X20009 GE Cover Hole Assembly (Black)
201FRAME FRONT LWR (BK)
212GEN WB39T10015
216WB02X20855 GE Washer Rear Heat Shield
217WB02T10575 GE Main Wire Cover
218WB02T10564 GE Oven Terminal Block Cover
219WB02T10507 GE Main Back Panel
221WB56X28881 GE Oven Side Panel Black
223WB35T10223 GE Oven Back Insulation
231WB35T10170 GE Oven Insulation Wrapper
232WB35X25122 GE Back Insulation
233WB35X25048 GE Back Insulation
237GEN WB35T10228
241RACK OVEN
252WB44X20885 GE Oven Broil Shield Assembly 3600W
253WB21X22134 GE Oven Sensor Assembly
254WB18T10352 GE Oven Relay
255WB17T10011 GE Oven Terminal Block
256GEN WB25T10097
257WB08T10045 GE Oven G9 Halogen Lamp
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
262GEN WB07T10621
263COVER FRONT
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269GEN WB02T10492
270WB27T11330 GE Oven Board Relay Daughter Assembly
272WB02T10034 GE Oven Body Side Support
277GEN WB10T10083
282WB38X33648 GE Vent Tube
285GEN WB38T10034
289WB49T10071 GE Oven Reflector Pan
291GEN WB02X9152
296WB02X10521 GE Oven Leveling Leg
534WB02X20947 GE Oven Cavity Support
605HARNSS WIRE HIDDN BKE(L)
696SCREW
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
806WH2X1186 GE Screw
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
