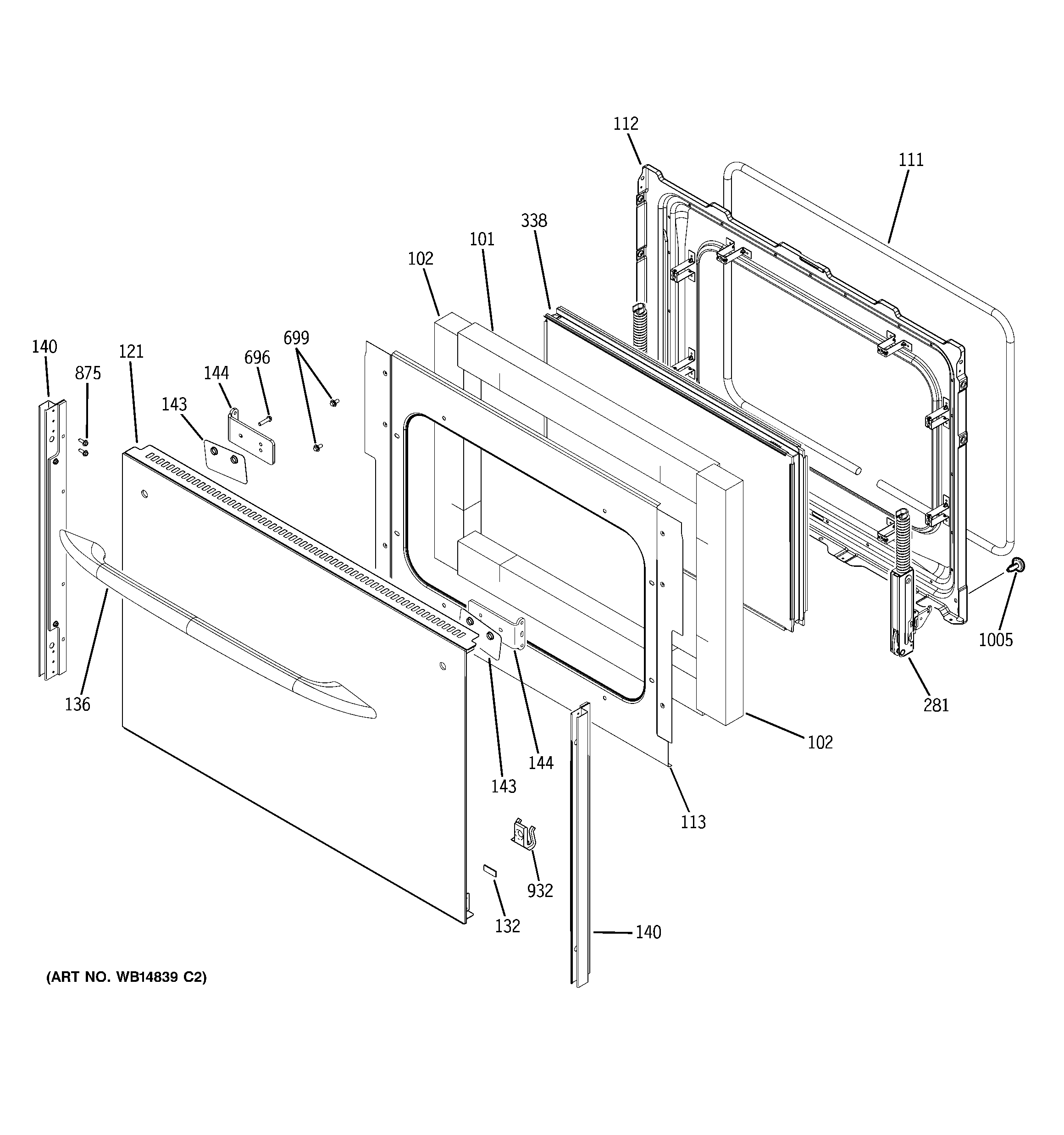

JB870DR2BB LOWER DOOR

JB870DR2BB LOWER DOOR

Written by

in

JB870DR2BB LOWER DOOR

Products

PositionProduct
101WB35X30052 GE Oven Door Insulation Assembly
102WB35K10025 GE Oven Side Door Insulation
111WB04T10050 GE Oven Door Gasket
112WB55T10148 GE Oven Door Liner Assembly
113WB02T10371 GE Oven Retainer Insulation
121PANEL ASM BONDED
121PANEL ASM BONDED
132WB01T10026 GE Oven Door Pad
136WB15T10188 GE Oven Handle White
136WB15T10183 GE Oven Handle Black
140GEN WB56T10314
140GEN WB56T10312
143GEN WB02T10496
144GEN WB02T10349
281WB10T10106 GE Oven Right Door Hinge
281WB10T10107 GE Oven Left Door Hinge
338WB56T10105 GE Oven Inner Window Assembly
696WB1K5156 GE Oven Screw
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
932GEN WB02T10497
1005WB01T10008 GE Oven Screw 10-32
