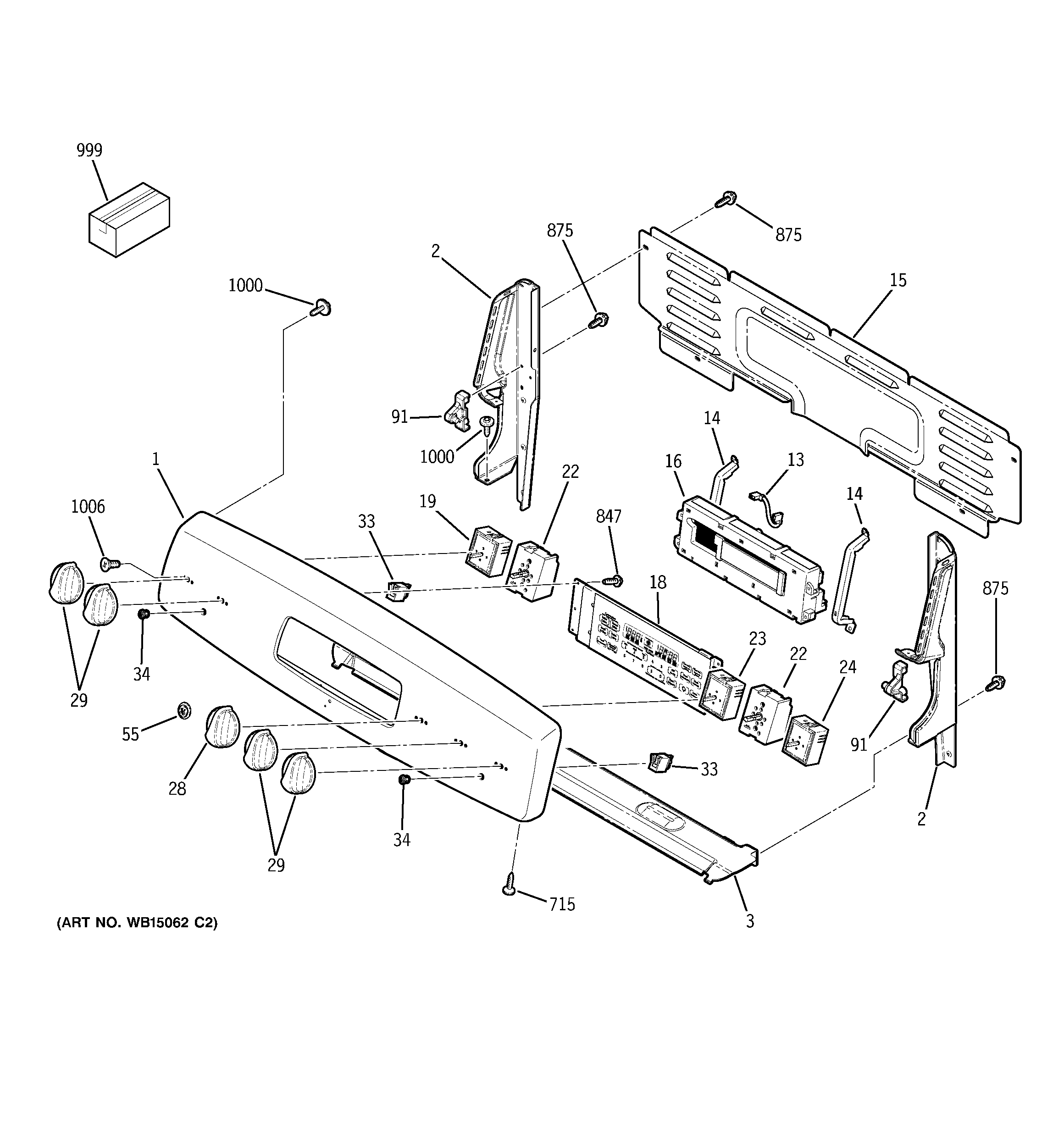

JB870DT1BB CONTROL PANEL

Products

Position	Product
1	GEN WB36T11348
1	GEN WB36T11350
2	GEN WB36T11043
2	GEN WB36T11042
2	GEN WB36T11040
2	WB36T11039 GE Oven End Plate Right (Black)
3	GEN WB02T10525
13	WB18X30704 GE Jumper
14	GEN WB37T10010
15	COVER CONTROL
16	GEN WB27T11375
18	GEN WB27T11387
18	GEN WB27T11388
19	WB24T10145 GE Oven Burner Switch
22	WB24T10153 GE Oven Infinite Switch Control
23	WB24T10162 GE Oven Infinite Control Switch
24	INFINITE CONTROL SWITCH
28	GEN WB03T10312
28	GEN WB03T10311
29	WB03T10282 GE Oven Infinite Knob (White)
29	KNOB INFINITE (BK)
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
55	WB02T10359 GE Oven Badge
91	GEN WB10T10125
715	WD2X432 GE Dishwasher Screw
847	WB1X5364 GE Oven Mounting Screw
875	WH2X930 GE Screw
999	GEN 31-15000
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	INSTR INSTALL OVN DOOR
999	GEN 31-10671
999	GEN 49-80633
999	GEN 31-10677
1000	WB01T10084 GE Screw 8-32 x .343 Truss
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
