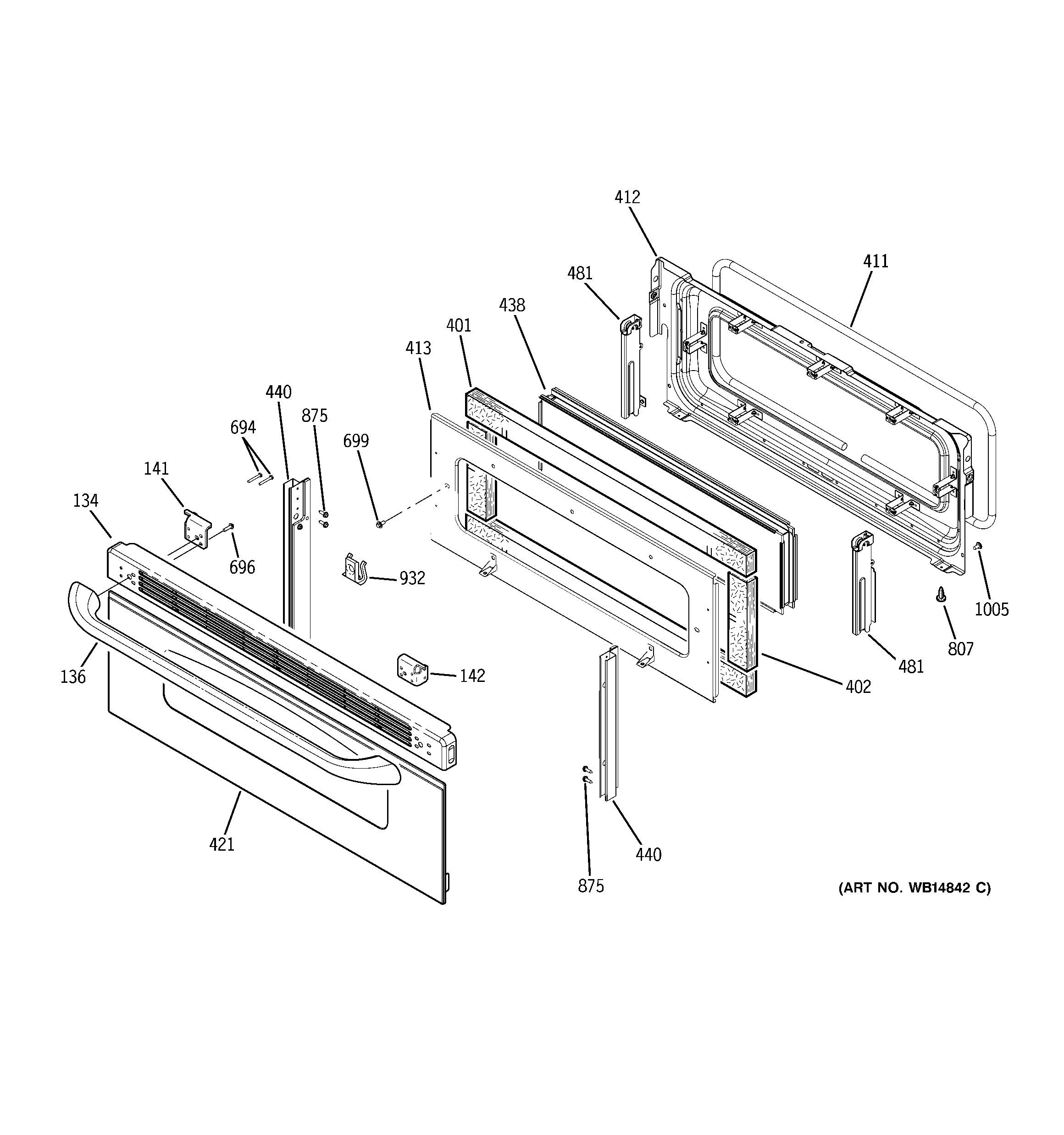

JB870DT1BB UPPER DOOR

JB870DT1BB UPPER DOOR

Written by

in

JB870DT1BB UPPER DOOR

Products

PositionProduct
134WB07X27233 GE Oven Trim Vent Door (Black)
134WB07X27236 GE Oven Vent Door Trim (White)
136WB15T10176 GE Oven Handle (White)
136WB15T10187 GE Oven Handle Black
136WB15T10183 GE Oven Handle Black
136WB15T10188 GE Oven Handle White
141WB34X42670 GE Left Hand Door Handle Bracket
142WB34X42027 GE Right Hand Door Trim Bracket
401WB35T10167 GE Oven Door Top Insulation Up
402WB35T10168 GE Oven Upper Side Insulation Door
411GEN WB04T10073
412WB55T10186 GE Oven Door Lining Assembly
413WB56T10318 GE Oven Insulation Retainer
421GEN WB56T10296
421GEN WB56T10298
438WB56T10244 GE Oven Upper Window Pack Assembly
440GEN WB56T10315
440GEN WB56T10313
481WB10T10105 GE Oven Hinge Assembly
481WB10T10104 GE Oven Hinge Assembly
694WB1K5157 GE Oven Black Screw
694WB01T10066 GE Oven Screw 10-16 XC02
696WB1K5156 GE Oven Screw
696SCREW
699WB1M1 GE Oven Screw
807WB1X500D GE Oven Screw Package
875WH2X930 GE Screw
932GEN WB02T10497
1005WB01T10008 GE Oven Screw 10-32
