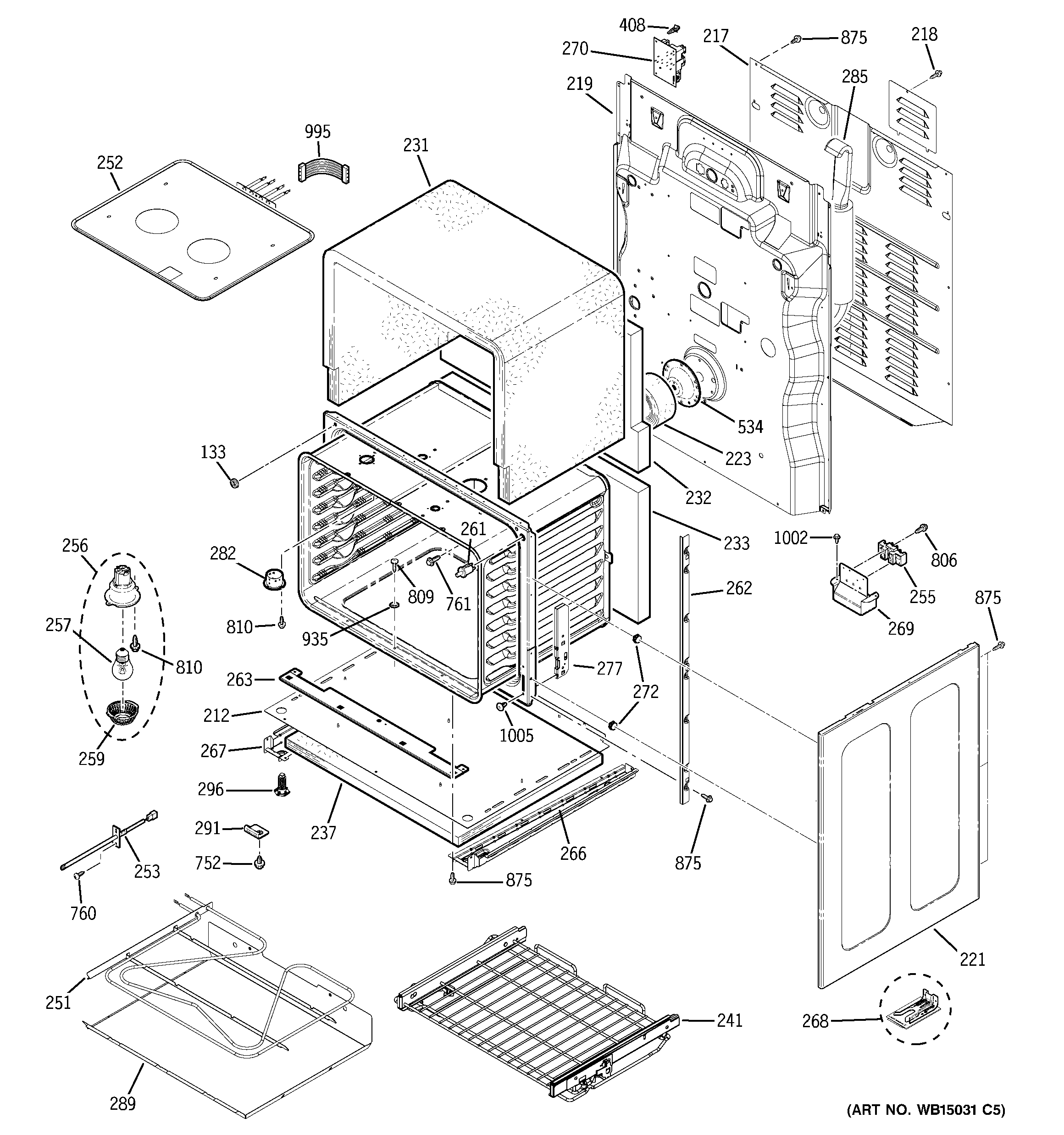

JB870SR2SS LOWER OVEN

JB870SR2SS LOWER OVEN

Written by

in

JB870SR2SS LOWER OVEN

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
212GEN WB39T10015
217GEN WB02T10476
218GEN WB02T10355
219WB02T10507 GE Main Back Panel
221WB56X28881 GE Oven Side Panel Black
223WB35T10223 GE Oven Back Insulation
231WB35T10170 GE Oven Insulation Wrapper
233WB35X25048 GE Back Insulation
233WB35X25122 GE Back Insulation
237GEN WB35T10228
241GEN WB48T10071
251WB44T10082 GE Oven Bake Element
252GEN WB44T10095
253WB21X22134 GE Oven Sensor Assembly
255WB17T10011 GE Oven Terminal Block
256WB25T10093 GE Oven Halogen Lamp Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
262GEN WB07T10621
263GEN WB02T10370
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269GEN WB02T10492
270WB27T11330 GE Oven Board Relay Daughter Assembly
272WB02T10034 GE Oven Body Side Support
277GEN WB10T10083
282WB38X33648 GE Vent Tube
285GEN WB38T10034
289WB49T10071 GE Oven Reflector Pan
291WB02T10487 GE Hole Cover
296WB02X10521 GE Oven Leveling Leg
408WB02T10477 GE Standoff PCB
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
995GEN WB18T10483
995HARNSS WIRE HIDDN BKE(L)
995GEN WB18T10459
995GEN WB18T10458
995WB18T10463 GE Oven Harness Wire HB
1002GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
