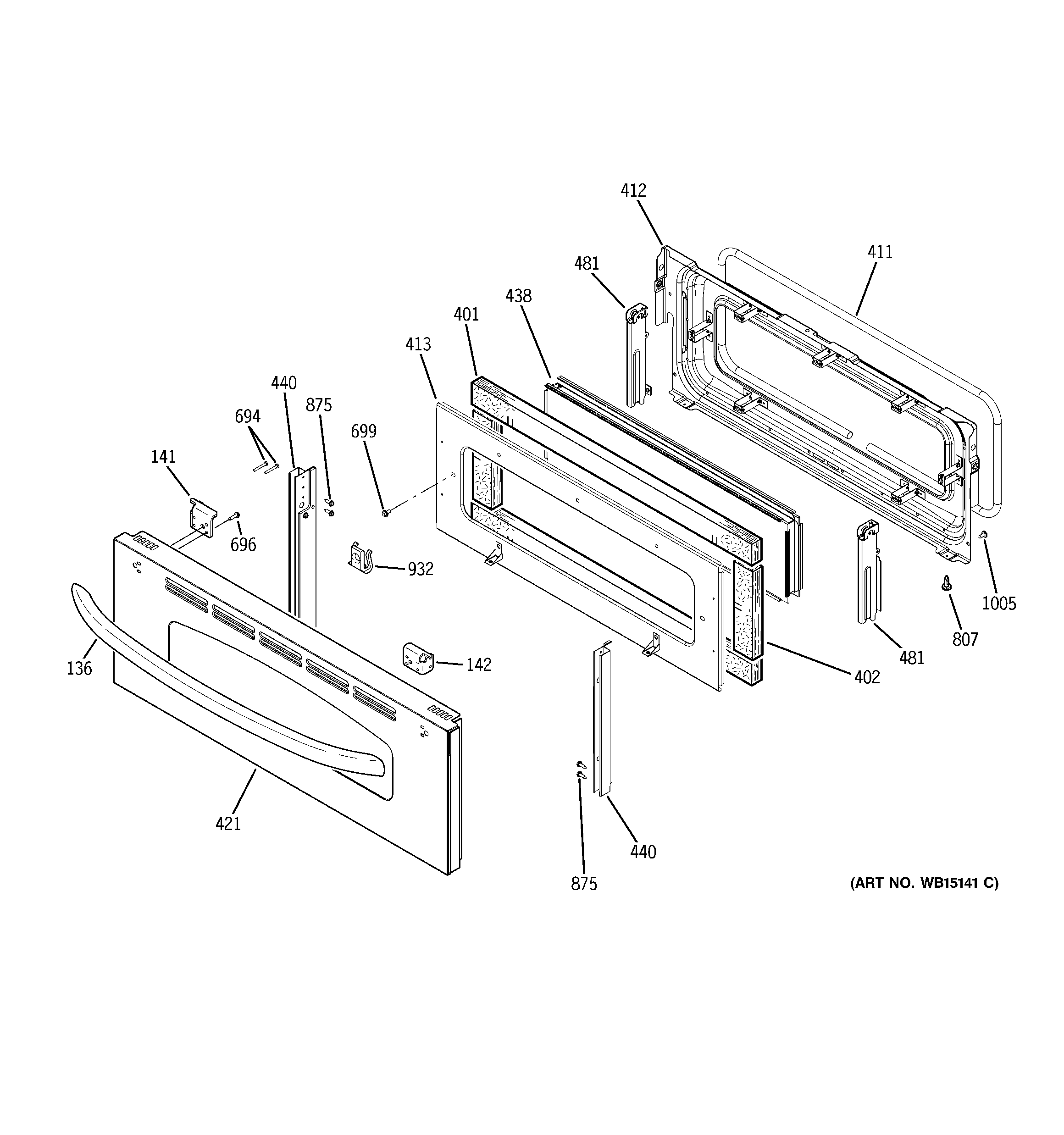

JB870ST1SS UPPER DOOR

JB870ST1SS UPPER DOOR

Written by

in

JB870ST1SS UPPER DOOR

Products

PositionProduct
136GEN WB15T10194
141WB34X42670 GE Left Hand Door Handle Bracket
142WB34X42027 GE Right Hand Door Trim Bracket
401WB35T10167 GE Oven Door Top Insulation Up
402WB35T10168 GE Oven Upper Side Insulation Door
411GEN WB04T10073
412WB55T10186 GE Oven Door Lining Assembly
413WB56T10318 GE Oven Insulation Retainer
421GEN WB56T10336
438WB56T10244 GE Oven Upper Window Pack Assembly
440GEN WB56T10313
481WB10T10104 GE Oven Hinge Assembly
481WB10T10105 GE Oven Hinge Assembly
694WB1X1116 GE Oven Screw
696SCREW
699WB1M1 GE Oven Screw
807WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
875WH2X930 GE Screw
932GEN WB02T10497
1005WB01T10008 GE Oven Screw 10-32
