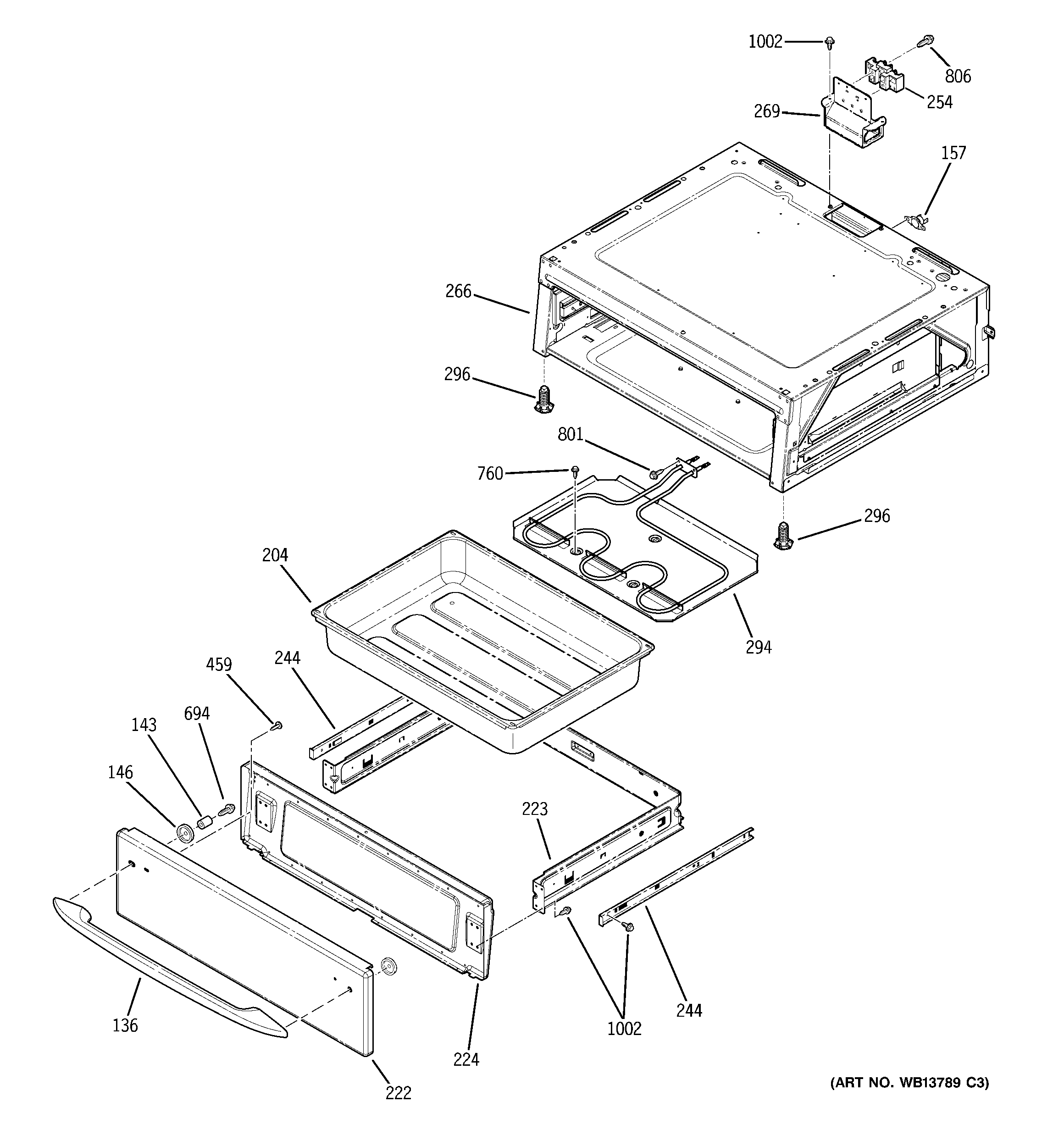

JB900SK6SS WARMING DRAWER

JB900SK6SS WARMING DRAWER

Written by

in

JB900SK6SS WARMING DRAWER

Products

PositionProduct
136WB15T10190 GE Oven Handle Assembly 30 (PRF-SS)
136GEN WB15K10063
143SPACER DR HANDLE
146WB1K5117 GE Oven Washer
157GEN WB24T10122
204GEN WB49T10011
222GEN WB56T10176
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224GEN WB56T10180
244GUIDE- SLIDE DRAWER
254WB17T10011 GE Oven Terminal Block
266GEN WB58T10013
266WB63X28540 GE Base Assembly Rivet
269WB17T10020 GE Oven Terminal Block Mount
294WB30T10144 GE Oven Heating Element (WARM)
296WB02X10521 GE Oven Leveling Leg
459WB1K5167 GE Screw 8-18 X 3/8"
694GEN WB01T10108
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
