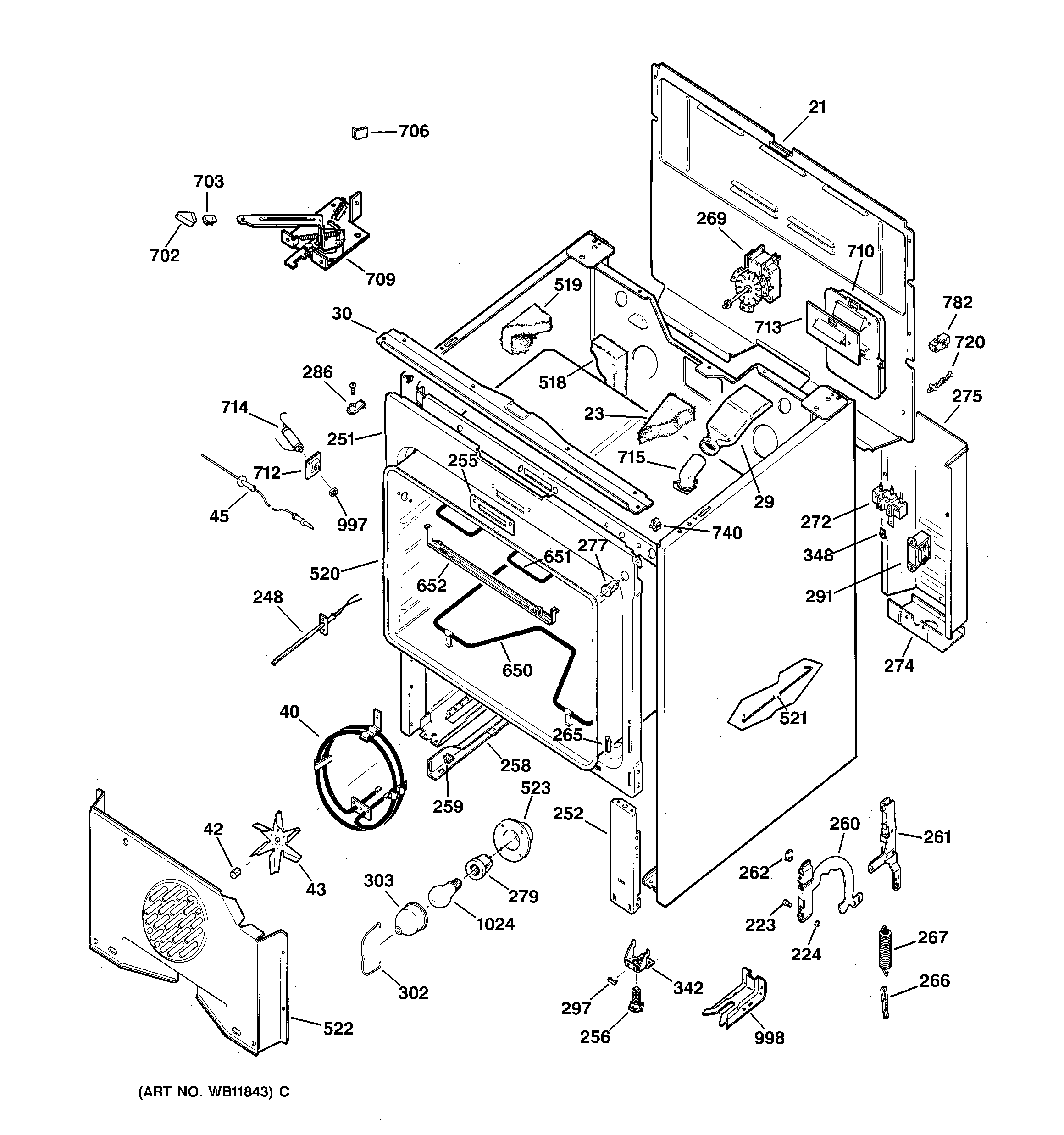

JB960AY4 BODY PARTS

JB960AY4 BODY PARTS

Written by

in

JB960AY4 BODY PARTS

Products

PositionProduct
21GEN WB49X10011
23GEN WB02X8316
23GEN WB02X8315
29GEN WB38X5066
30GEN WB02X8310
40GEN WB44T10002
42WB2X8454 GE Oven Nut
43WB2X8351 GE Oven Blade Fan
45PROBE COVER
45WB20T10024 GE Oven Thermistor Probe
223GEN WB02X6195
224RING RETAINING
248WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
251GEN WB56X7049
252GEN WB49X10032
256WB02X10521 GE Oven Leveling Leg
258GEN WB39X0051
259GEN WB02X10562
260GEN WB10X5206
261GEN WB10X0148
261GEN WB10X0149
262GEN WB02X3193
265GEN WB02X6342
266HOOK DOOR SPRING
267GEN WB09X5117
269WB26K5069 GE Oven Convection Fan Motor
272WB17X5095 GE Black Oven Terminal
274GEN WB02X8247
275GEN WB02X8249
277WB24T10147 GE Oven SPDT Light Switch
279WB08T10026 GE Range Push-In Receptacle
286GEN WB02X8107
291GEN WB08X5102
297GEN WB02X10522
302GEN WB02X7694
303WB36X192 GE Oven Light Cover
342GEN WB02X10520
348PLATE GROUND
518GEN WB02X8412
519GEN WB02X8219
520LINER ASM WELD OVEN 23IN
521GEN WB09X5118
521HOOK PACKAGE
522GEN WB02X8308
523GEN WB02X7693
650WB44X10016 GE Oven Bake Element 3410/OL
651WB44X10015 GE Stove Range Oven Broil Element
652SUPPORT BROIL
702GEN WB03X5815
703RETAINER KNOB
706GEN WB24X5322
709LATCH & SWITCH ASM
710GEN WB38X5065
710GEN WB38X5064
712GEN WB02X8309
713GEN WB02X8311
714GEN WB18X5149
715GEN WB38X5071
720GEN WB02X8323
740CLIP WIRE BLACK
782WB17X5060 GE Oven Block Assembly
997WB1X5572 GE Oven Nut
998WB02T10415 GE Oven Anti-Tip Bracket Assembly
1024RANGE ONLY 40W 120V APPL BULB
