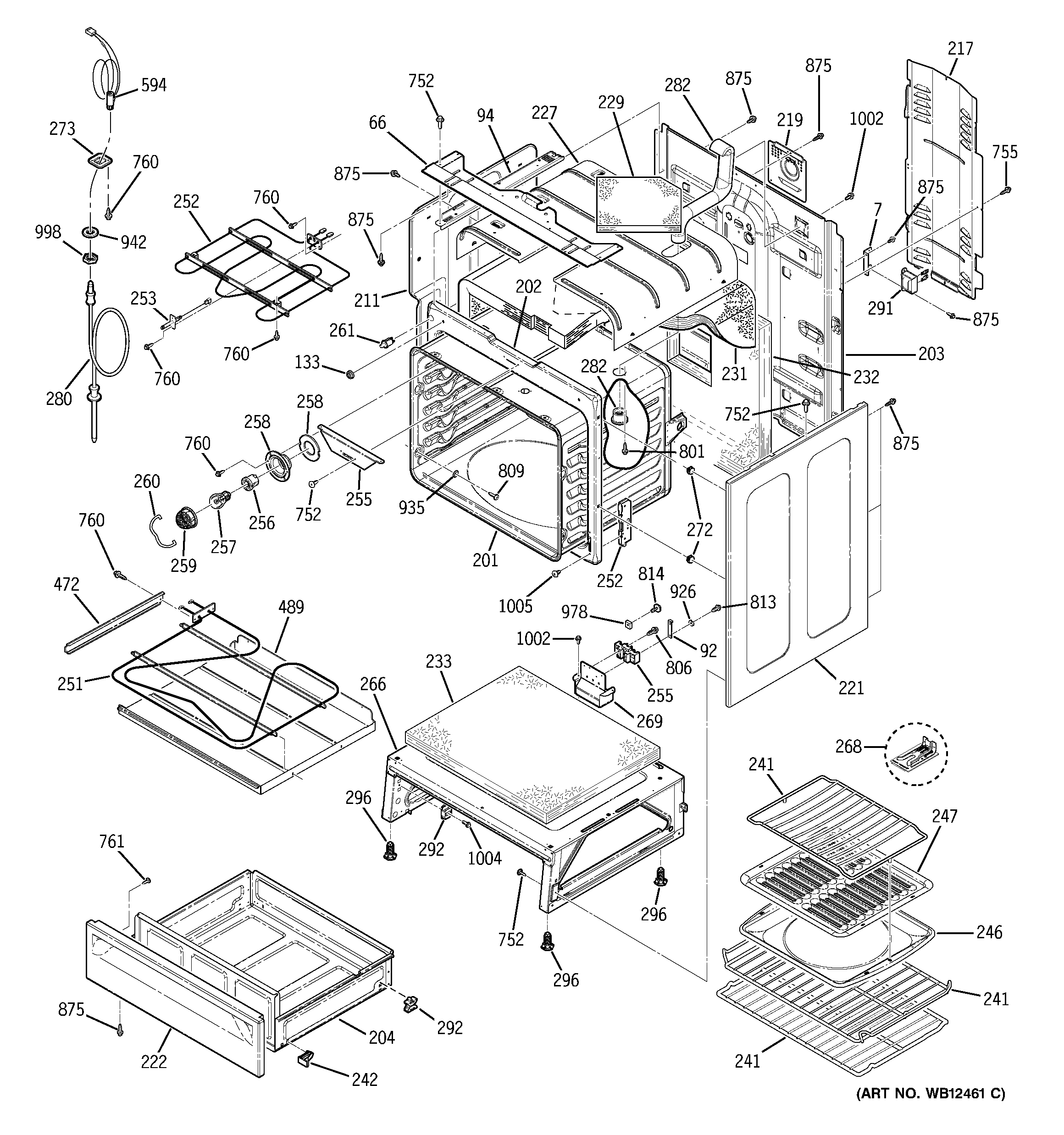

JB960KD1CC BODY PARTS

JB960KD1CC BODY PARTS

Written by

in

JB960KD1CC BODY PARTS

Products

PositionProduct
7GEN WB02T10052
66ENCLOSURE RANGETOP
92GEN WB02T10067
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
133WB02X29562 GE Range Top Bumper
133WB01T10022 GE Oven Door Bumper
133WB01T10026 GE Oven Door Pad
201GEN WB53T10004
202GEN WB63T10054
203GEN WB63T10047
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211GEN WB02T10028
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221GEN WB63T10056
222DRAWER PANEL-BISQUE
227GEN WB02T10029
229WB35T10017 GE Oven Vent Tube Insulation
229GEN WB35T10021
231GEN WB35T10012
232GEN WB35T10023
233GEN WB35T10022
233GEN WB49T10005
241GEN WB48T10015
241GEN WB48T10018
241GEN WB48T10019
242WB48T10068 GE Oven Wedge Drawer
246GEN WB48T10017
247WB48T10089 GE Oven Broiler Pan XL
251UNIT ASM (H/B)
252GEN WB10T10005
252WB44T10012 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
255GEN WB07T10109
255GEN WB17T10003
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10027 GE Oven Gasket
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261WB24T10147 GE Oven SPDT Light Switch
266BASE RIVET ASSY
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269TERMINAL BOX
272WB02T10034 GE Oven Body Side Support
273PROBE COVER
280WB20T10024 GE Oven Thermistor Probe
282GEN WB38T10016
282WB38X33648 GE Vent Tube
291GEN WB08X5102
292WB02X33180 GE Oven Drawer Glide
292WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
594JACK RECEPTACLE
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
814SCR 10-32 IND HXW .437
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
978GEN WB01X5968
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
