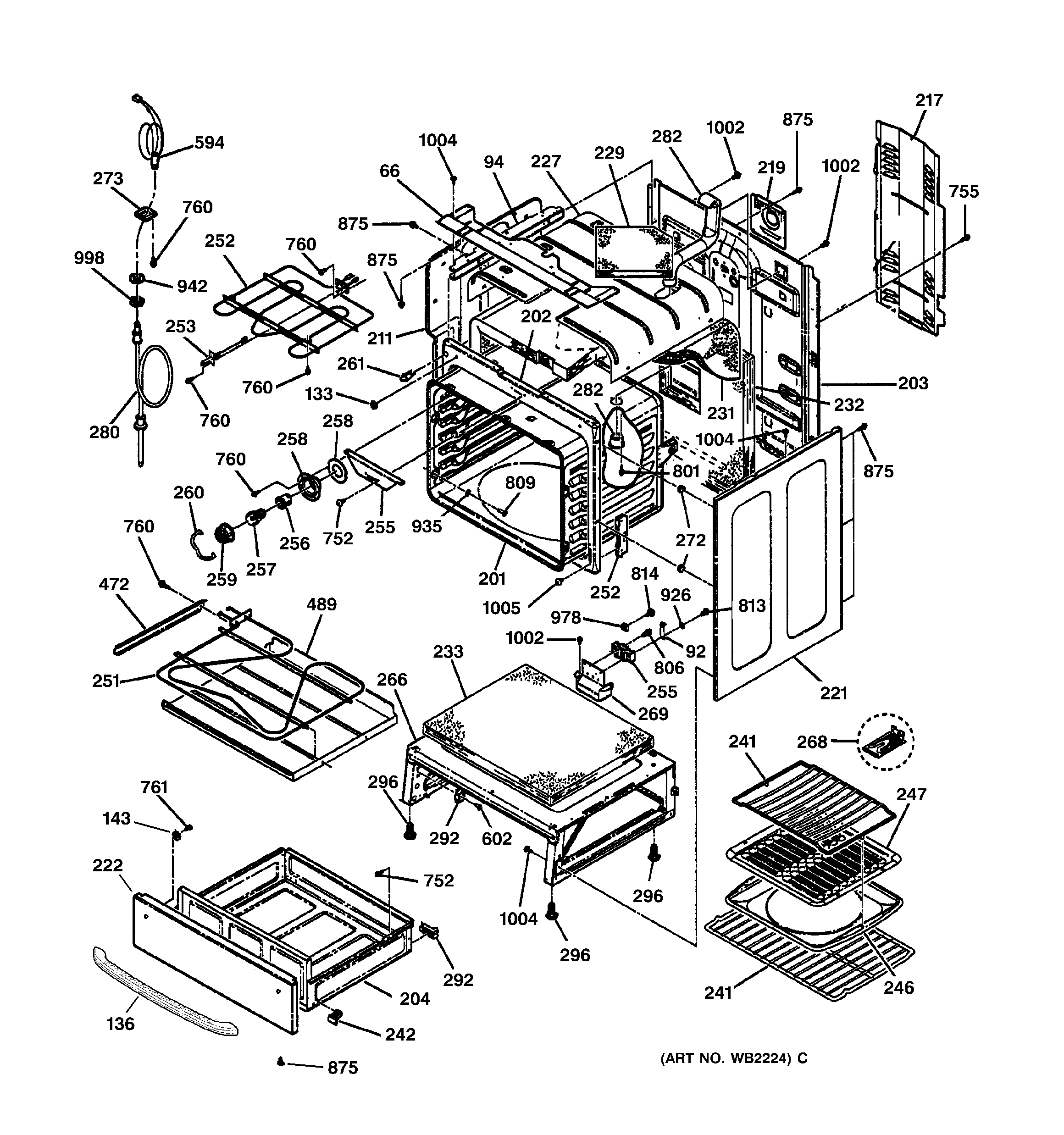

JB965SC1SS BODY & DRAWER PARTS

JB965SC1SS BODY & DRAWER PARTS

Written by

in

JB965SC1SS BODY & DRAWER PARTS

Products

PositionProduct
66ENCLOSURE RANGETOP
92GEN WB02T10067
94GEN WB02T10038
133WB01T10026 GE Oven Door Pad
133WB01T10022 GE Oven Door Bumper
133GEN WB01T10023
133WB02X29562 GE Range Top Bumper
136GEN WB15T10040
143SPACER DR HANDLE
201GEN WB53T10004
202GEN WB63T10054
203GEN WB63T10047
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211GEN WB02T10028
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28881 GE Oven Side Panel Black
222GEN WB56T10073
227GEN WB02T10029
229GEN WB35T10021
229WB35T10017 GE Oven Vent Tube Insulation
231GEN WB35T10012
232GEN WB35T10023
233GEN WB49T10005
233GEN WB35T10022
241GEN WB48T10015
241GEN WB48T10018
241GEN WB48T10019
242WB48T10068 GE Oven Wedge Drawer
246GEN WB48T10017
247WB48T10089 GE Oven Broiler Pan XL
251GEN WB44T10015
252WB44T10012 GE Oven Broil Element
252GEN WB10T10005
253SENSOR ASM
255GEN WB17T10003
255GEN WB07T10109
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10027 GE Oven Gasket
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261WB24T10147 GE Oven SPDT Light Switch
266BASE RIVET ASSY
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269TERMINAL BOX
272WB02T10034 GE Oven Body Side Support
273PROBE COVER
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
282GEN WB38T10013
292GEN WB02T10031
292WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
594JACK RECEPTACLE
602GEN WH02X0941
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
814GEN WB01X5967
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
978GEN WB01X5968
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WB01T10019
1004WB01T10037 GE Screw 8-18 7/16"
1005WB01T10008 GE Oven Screw 10-32
