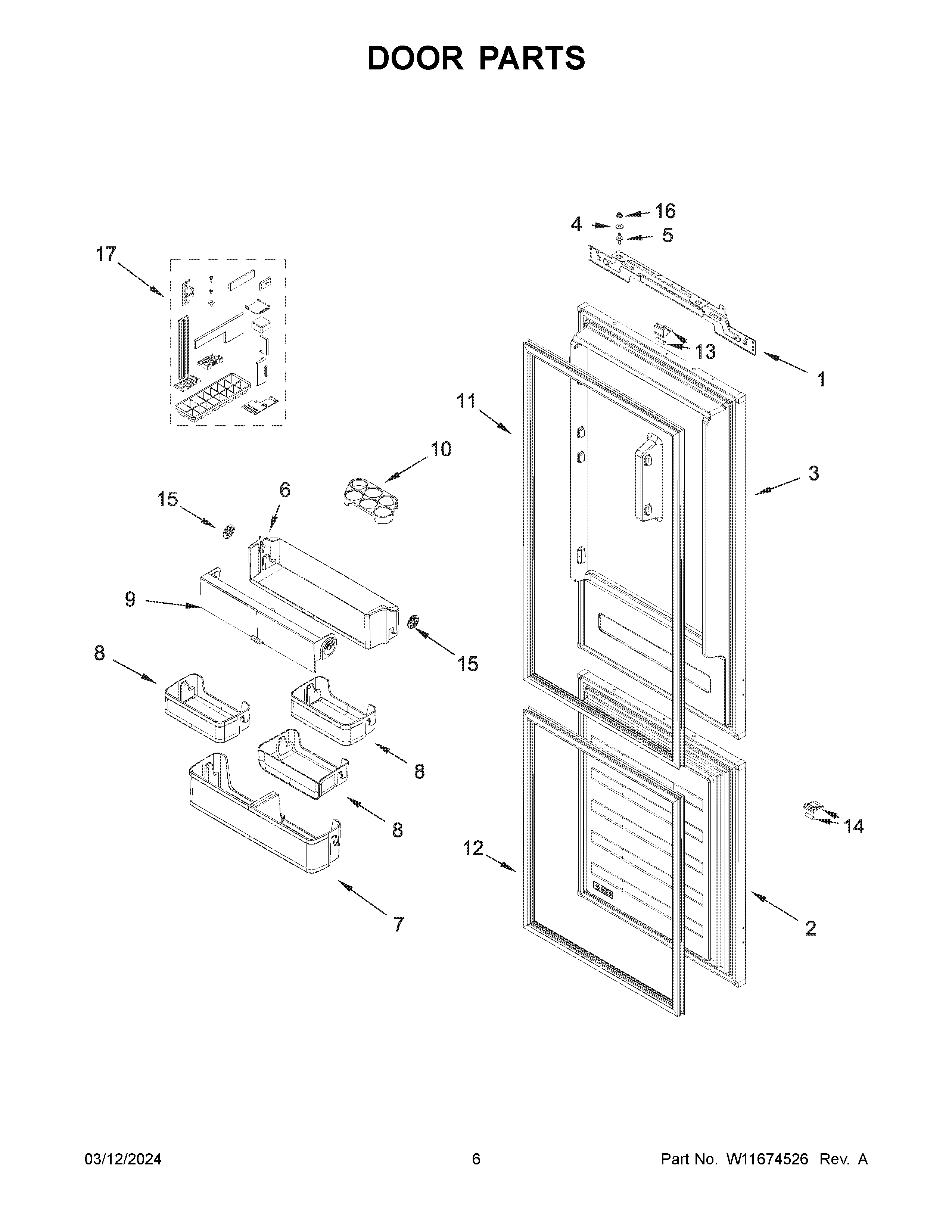

JBBFX22NMX00 04 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, BRACKET
2	DOOR, FREEZER
3	DOOR, REFRIGERATOR
4	WASHER
5	SCREW
6	W11676910 Whirlpool Compartment Door
7	BIN, BOTTLE
8	BIN, HALF
9	BIN, FRONT
10	HOLDER, EGG
11	GASKET, REFRIGERATOR
12	GASKET, FREEZER
13	SUPPORT, MAGNET
14	COVER, DOOR MAGNET
15	BUMPER, COMPARTMENT
16	NUT, LOCK
17	INSTALLATION KIT (INCLUDES PANEL MOUNTING HARDWARE, SCREW COVERS, ICE TRAY & SCRAPER)
