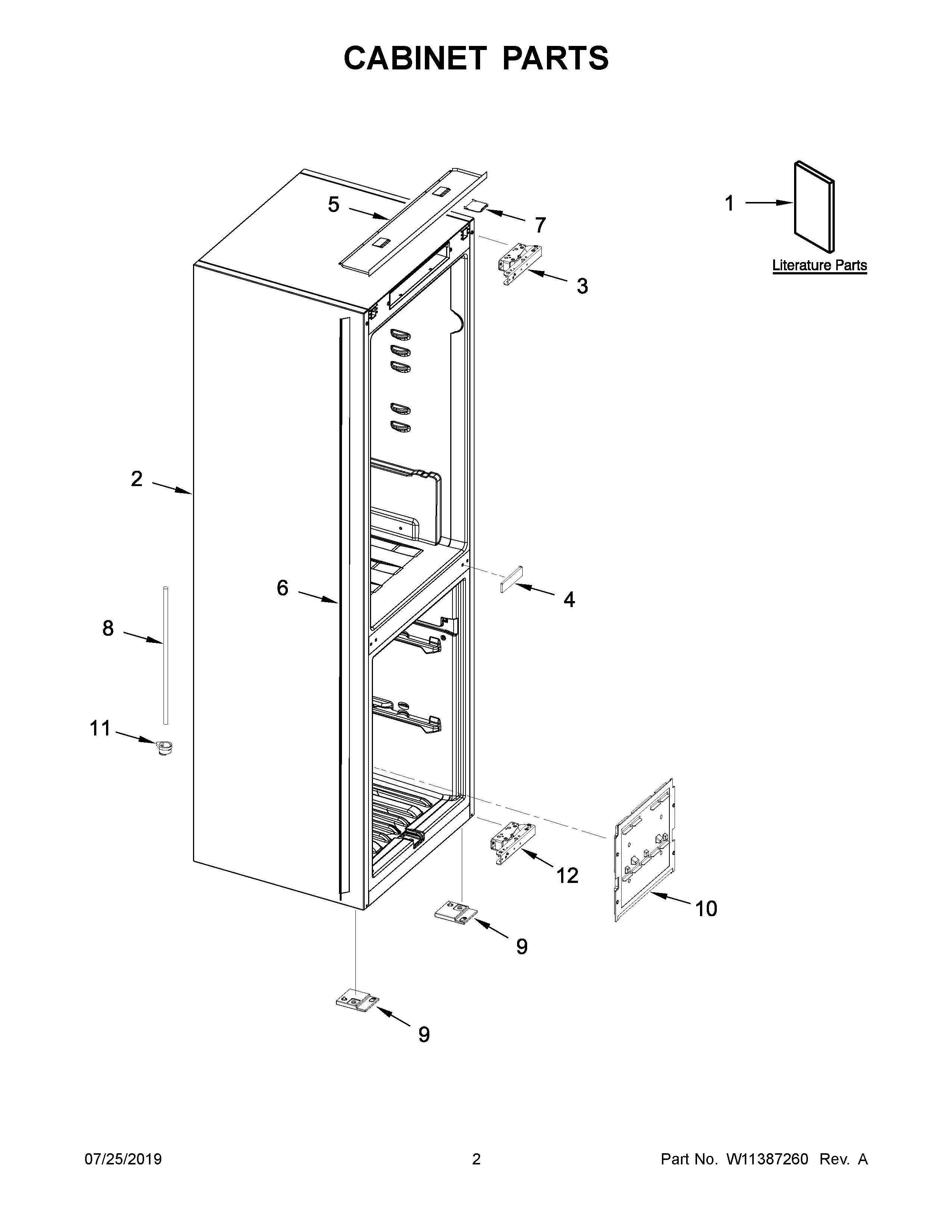

JBBFX24NHX00 02 – CABINET PARTS

Written by

Products

Position	Product
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
2	LINER (NOT A SERVICEABLE PART)
3	HINGE, TOP
4	COVER, HINGE
5	FASTENER, UPPER
6	TRIM, SIDE PANEL
7	COVER, SCREW
8	TUBE, DRAIN
9A	FOOT (RIGHT HAND)
9	FOOT (LEFT HAND)
10	COVER, UNIT (INCLUDES FAN MOTOR)
11	DIAPHRAM
12	HINGE, BOTTOM
