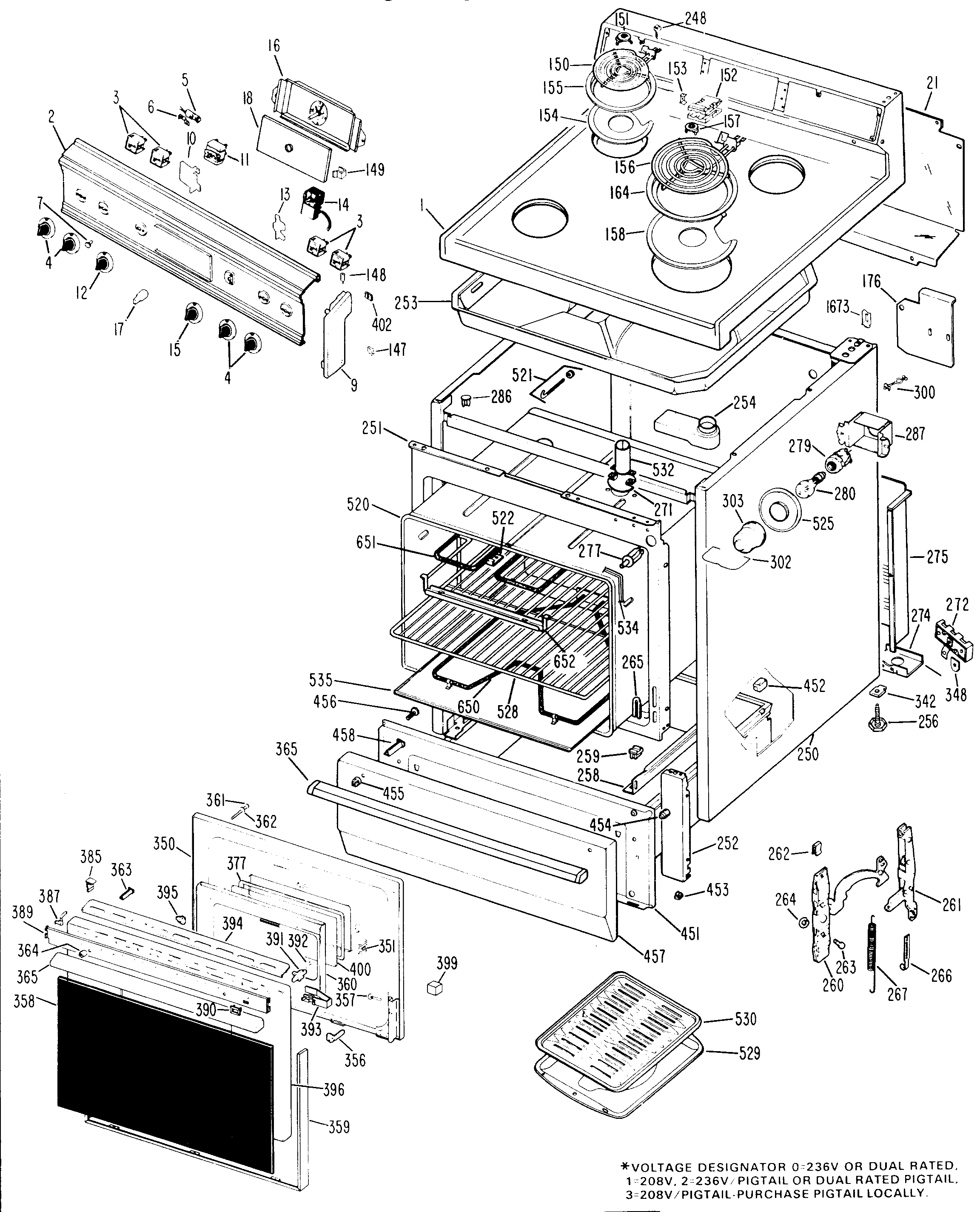

JBC16G*F2 RANGE

JBC16G*F2 RANGE

Written by

in

JBC16G*F2 RANGE

Products

PositionProduct
1GEN WB62X1474
1GEN WB62X1477
1GEN WB62X1478
1GEN WB62X5302
1GEN WB62X5303
2GEN WB07X6833
3WB21X36771 GE Surface Element Switch
4GEN WB03X5640
5NEON LAMP 118V
6CLIP MTG LAMP
7WB25X65 GE Oven Light Indicator
9GEN WB07X6828
9GEN WB07X6829
10GEN WB02X7305
11SWITCH, SELECTOR
12GEN WB03X5641
13GEN WB02X7306
14GEN WB02X1394
14GEN WB21X5208
15GEN WB03X5642
16GEN WB19X0154
17WB3X5699 GE Oven Timer Knob Kit
18GEN WB36X0485
21GEN WB49X0390
147GEN WB01X0578
148GEN WB01X5716
148GEN WB01X5682
149GEN WB02X2901
150WB30X342 GE Oven Cooktop 6" Burner Unit 3w No Trim Ring
151GEN WB32X0052
152WB2X1351 GE Oven Terminal Block
152TERM BLOCK SINGLE COIL
153CLIP INSULATOR
154WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
155WB31X5013 GE Oven 6" Chrome Trim Ring
156WB30X348 GE Oven 8" Surface Unit Element with Screw
157GEN WB32X0051
158WB32X10013 GE Oven 8" Chrome Drip Pan
164WB31X5014 GE 8-Inch Chrome Trim Ring
176GEN WB49X0391
251GEN WB56X1348
252GEN WB49X0322
253GEN WB49X0341
254GEN WB38X0050
256LEVELING LEG
258GEN WB39X0051
259SLIDE GUIDE
260GEN WB10X5148
261GEN WB10X0149
261GEN WB10X0148
263GEN WB02X6195
264RING RETAINING
265GEN WB02X6342
266HOOK DOOR SPRING
267GEN WB09X0144
271BAFFLE
272WB17X5095 GE Black Oven Terminal
274KNOCKOUT PLATE
275GEN WB59X0173
277SWITCH, OVEN LIGHT
279GEN WB08X0191
280RANGE ONLY 40W 120V APPL BULB
287GEN WB02X3447
300GEN WB02X7052
302GEN WB02X2885
303WB36X192 GE Oven Light Cover
342GEN WB02X7524
348PLATE GROUND
350GEN WB55X0382
351SPACER DOOR
356GEN WB02X6574
358GEN WB36X5379
358GEN WB02X3140
359GEN WB07X5637
360GEN WB49X0384
361GEN WZ04X0423
362WB1X119D GE Oven Range Washer
363SPACER PANEL
364GEN WB02X3258
365WB15X10225 GE Range Handle
377GEN WB07X1031
385GEN WB07X5631
387GEN WB02X6575
389GEN WB07X5623
390GEN WB07X5624
391GEN WB02X3052
392CAM LINK
393GEN WB09X5083
394GEN WB07X5636
395GEN WB02X3053
396GEN WB56X1351
399GEN WB02X3285
400GEN WB36X0526
402GEN WB01X0591
409GEN WB02X3470
440GEN WB01X0585
451GEN WB58X0050
452SLIDE TOP
453SLIDE BOTTOM
453GEN WB02X3394
454GEN WB02X0584
455GEN WB02X3135
456GEN WZ04
