JBC17G*R2

JBC17G*R2

Written by

in

JBC17G*R2

Products

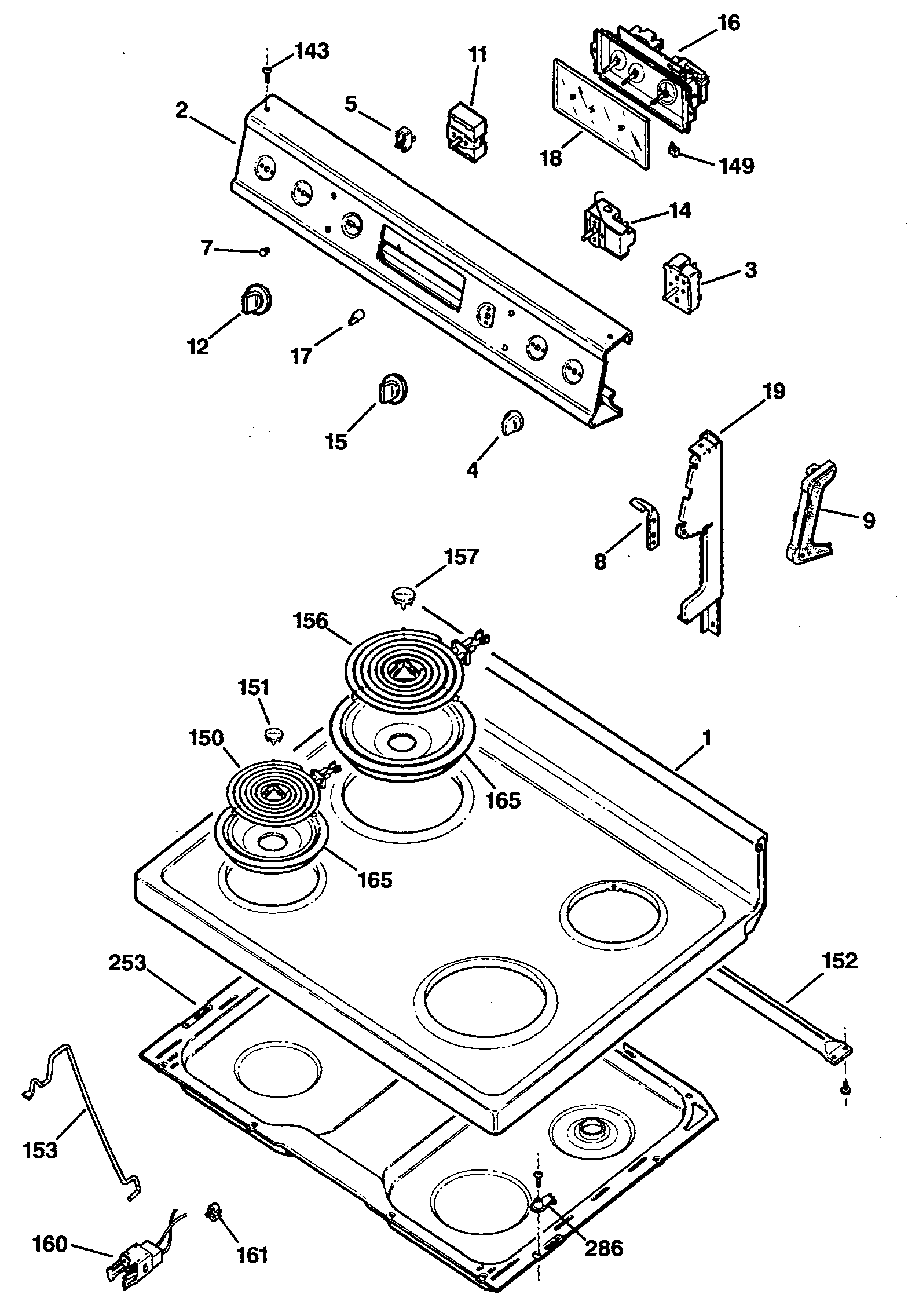

Position	Product
1	RANGE TOP ASM – WHITE
2	GEN WB36X5663
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5775
5	NEON LAMP 118V
7	WB25X65 GE Oven Light Indicator
8	GEN WB02X8127
8	GEN WB02X8126
9	GEN WB07X7130
9	GEN WB07X7131
11	GEN WB22X5100
12	OVEN SET KNOB
14	GEN WB21X5304
14	GEN WB02X6274
15	GEN WB03X5791
16	GEN WB19X5305
17	WB3X5699 GE Oven Timer Knob Kit
18	GEN WB36X5575
19	GEN WB07X7164
19	GEN WB07X7161
19	GEN WB07X7163
19	GEN WB07X7162
21	GEN WB49X5496
143	GEN WB01X5860
149	GEN WB02X7702
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
152	GEN WB02X8128
153	GEN WB02X8114
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
160	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
161	CLIP WIRE
165	BOWL BURNER 8 (CH)
165	6" BOWL BLACK REAR BUBBLE
251	GEN WB56X7036
252	GEN WB49X5498
252	WH2X930 GE Screw
253	GEN WB49X5499
256	GEN WB02X8116
258	GEN WB39X0051
259	SLIDE GUIDE
260	GEN WB10X5206
261	GEN WB10X0149
261	GEN WB10X0148
262	GEN WB02X3193
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	GEN WB9X5117
271	BAFFLE
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X8104
276	GEN WB2X8105
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
285	GEN WB02X8106
286	GEN WB02X8107
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
314	PAD
342	GEN WB02X8108
348	PLATE GROUND
350	GEN WB55X5362
356	GEN WB02X6574
358	GEN WB36X5659
359	GEN WB07X7129
360	GEN WB55X0378
361	WB1X5731D GE Oven Nut Package of 12
362	WB1X119D GE Oven Range Washer
363	GEN WB02X3030
365	GEN WB15X5174
371	GEN WB01X5732
376	GEN WB36X0526
391	GEN WB2X7881
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X7128
396	GEN WZ04X0384
397	WB15X5189 GE Oven Endcap 2-Pack
399	GEN WB02X3285
415	GEN WB02X7608
440	WB01K10093 GE Oven Speednut
441	GEN WB02X8110
441	GEN WB02X8111
442	GEN WB01X5743
451	GEN WB58X5013
452	SLIDE TOP
453	GEN WB02X3394
457	GEN WB56X7033
457	GEN WB56X7032
459	WB1X537 GE Oven Screw
518	GEN WB02X8120
519	GEN WB02X8121
520	GEN WB02X3471
520	GEN WB53X5147
521	HOOK PACKAGE
523	GEN WB02X7693
528	WB48X5099 GE Stove Oven Rack
529	WB48X10056 GE Broil Pan Set, Large Porcelain
530	BROILER PAN RACK
532	GEN WB38X5063
534	WB2X1522 GE Stove Range Oven Silcone Door GasKET
535	WB2X7749 GE Oven Aluminum Foil
650	BAKE ELEMENT SELF CLEAN
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
740	CLIP WIRE BLACK
782	WB17X5060 GE Oven Block Assembly
1024	RANGE ONLY 40W 120V APPL BULB
32767	GEN 31-0824
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 31-1048
32767	GEN 49-8375
