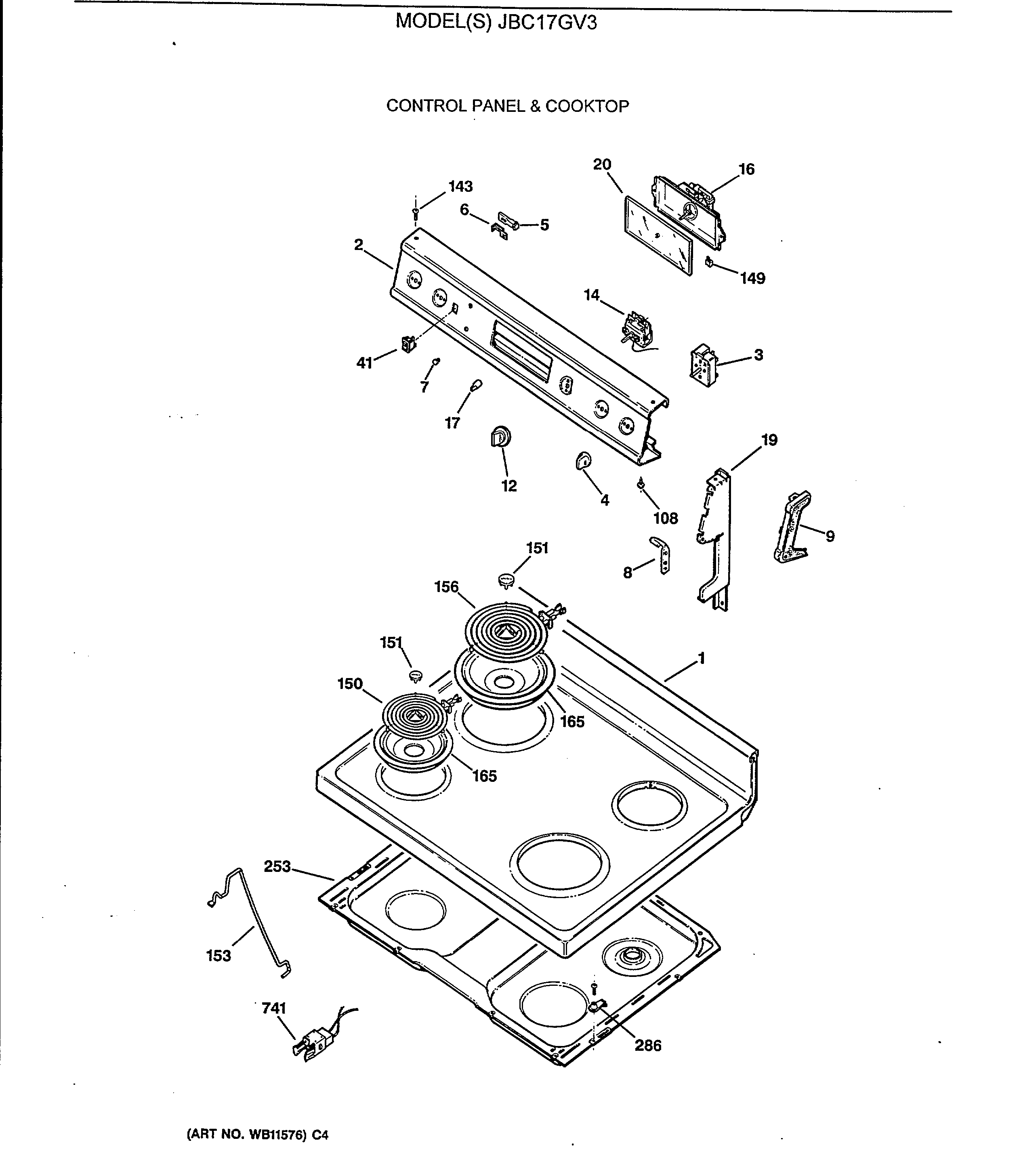

JBC17GV3 CONTROL PANEL & COOKTOP

Products

Position	Product
1	RANGE TOP ASM – WHITE
2	TRIM & BRACKET ASM
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5834
5	NEON LAMP 118V
6	CLIP MTG LAMP
7	WB25X65 GE Oven Light Indicator
8	GEN WB02X8126
8	GEN WB02X8127
9	GEN WB07X7136
9	GEN WB07X7137
12	GEN WB03X5839
14	WB20X5071 GE Oven Thermostat
16	GEN WB19X5305
17	WB3X5699 GE Oven Timer Knob Kit
19	GEN WB07X7270
19	PLATE END LH WH
19	PLATE END RH WH
19	GEN WB07X7271
20	GEN WB36X5575
41	WB24T10042 GE Oven Rocker Switch
108	WB1X5904 GE Oven Screw 8-18 BA
143	GEN WB01X5860
149	GEN WB02X7702
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB31X5021
153	GEN WB02X8114
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
165	BOWL BURNER 8 (CH)
165	BOWL BURNER 6 (CH)
253	GEN WB49X5566
286	GEN WB02X8107
741	RECEPTACLE W/CLIP
999	GEN 31-0824
999	WB02T10415 GE Oven Anti-Tip Bracket Assembly
999	GEN 31-20213
999	GEN 49-8722
