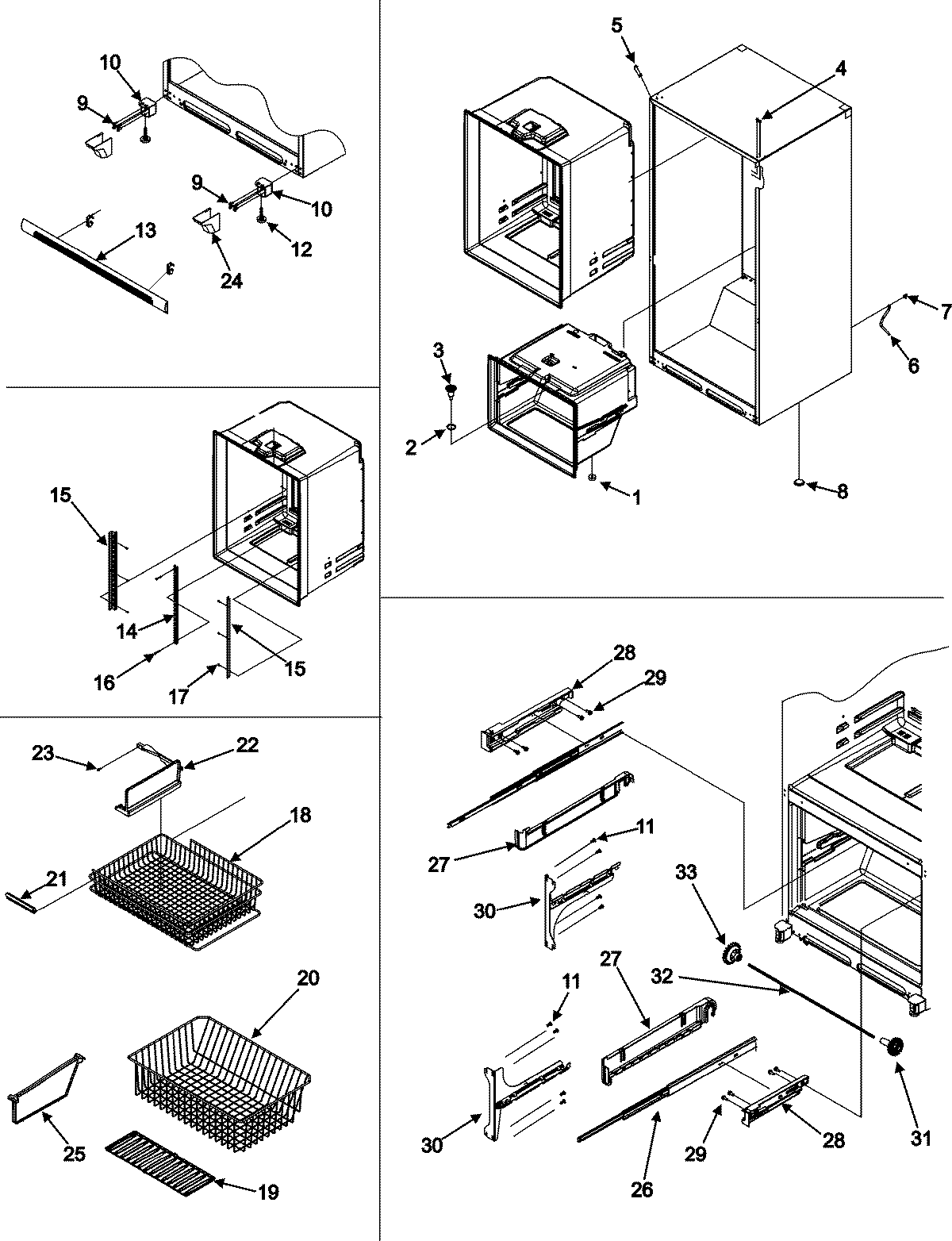

JBC2088HTW 09 – INTERIOR CABINET & FREEZER SHELVES

JBC2088HTW 09 – INTERIOR CABINET & FREEZER SHELVES

Written by

in

JBC2088HTW 09 – INTERIOR CABINET & FREEZER SHELVES

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003484 Whirlpool Refrigerator White Corner Cover
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
10HINGE, BOTTOM E-CT (WHT)
11MAY M0211018
12MAY 10354001
13TOE GRILLE ASSY (WHT)
13Clip, Grille
13WPW10534154 Whirlpool Refrigerator Front Grille
1467001073 Whirlpool Refrigerator Center Ladder
1567002489 Whirlpool Refrigerator Ladder L/R Side
16MAY M0231425
17SCREW, SM
18MAY 67002976
19W10332340 Whirlpool Refrigerator Mat
20MAY 67004726
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
24MAY 12561901W
25MAY 67004727
26MAY 67004758
27W10251557 Whirlpool Refrigerator Bracket
27MAY 67004728
28MAY 67004731
28MAY 67004730
29SCREW 1“
30WPW10330991 Whirlpool Refrigerator Bracket
30WPW10330993 Whirlpool Refrigerator Bracket
31MAY 67004066
32W11028221 Whirlpool Refrigerator Shaft
33MAY 67004016
3412906303WD Whirlpool Refrigerator Bracket
