JBD2256HEB 02 – COMPRESSOR

JBD2256HEB 02 – COMPRESSOR

Written by

in

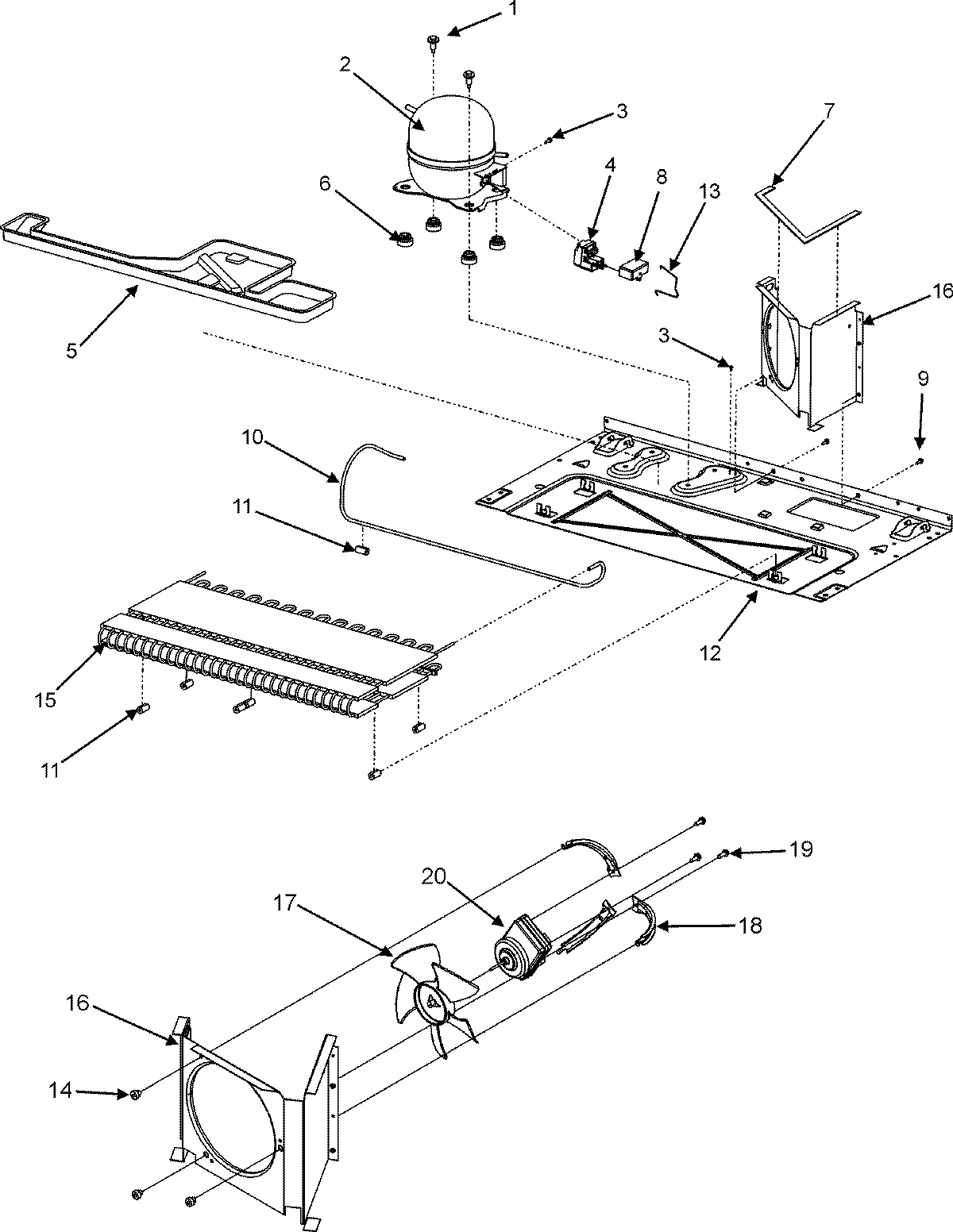

JBD2256HEB 02 – COMPRESSOR

Products

PositionProduct
1MAY M0221523
2W10160407 Whirlpool Refrigerator Compressor
3MAY M0231604
4W10613606 Whirlpool Refrigerator Start Device Relay Overload
5MAY 67001091
667003493 Whirlpool Refrigerator Compressor Grommet
7WP854334 Whirlpool Air Conditioner Sealing Strip
8CAPACITOR
9MAY M0238616
10MAY 67004262
1167005680 Whirlpool Refrigerator Condenser Grommet
12MAY 67001089
13MAY 12576801
14GROMMET, BRACKET
15MAY 67004263
16SHROUD, CONDENSER FAN
17W10156818 Whirlpool Refrigerator Fan Blade
18MAY 67004953
19Screw (3)
20MAY 67004432
2167004955 Whirlpool Refrigerator MC Harness
