JBD2256HEW 11 – REFRIGERATOR DOOR

JBD2256HEW 11 – REFRIGERATOR DOOR

Written by

in

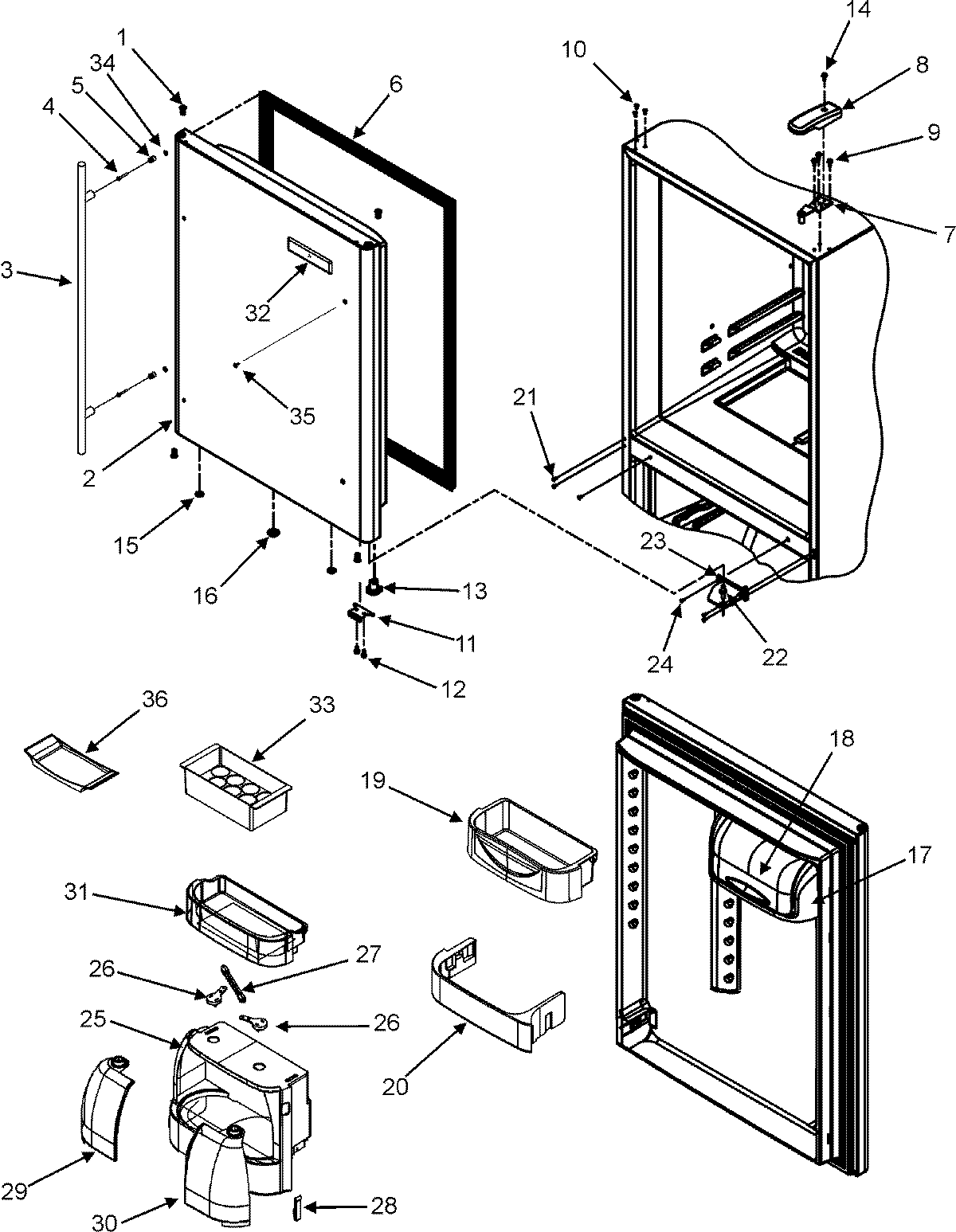

JBD2256HEW 11 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2Door, Refrigerator (White)
3Handle, Door (Stainless)
4340184 Whirlpool Screw
5MAY 67003114
6W10443313 Whirlpool Door Gasket
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001014 Whirlpool Refrigerator Top Hinge Cover White
9MAY M0238731
10MAY M0310729
1112968202W Whirlpool Refrigerator Door Stop
12MAY M0211533
13WP67003638 Whirlpool Closing Cam
14WP8281196 Whirlpool Screw
1510712401 Whirlpool Refrigerator Vent Plug (White)
16MAY A3080002
17WP67001279 Whirlpool Refrigerator Dairy Tray
18WP67003637 Whirlpool Dairy Door
1967004040 Whirlpool Refrigerator Bucket Door
20Retainer, Chiller
21WP489349 Whirlpool Refrigerator Screw
22WP67006642 Whirlpool Refrigerator Pin
23WP12607103WD Whirlpool Refrigerator Center Hinge
24MAY M0226233
25MAY 67004597
26Linkage, Chiller (4)
27MAY 67004601
28MAY 67004602
29MAY 67004599
30MAY 67004598
31MAY 67004600
3212848704 Whirlpool Refrigerator Nameplate
33MAY 67215-2
34MAY 67004789
35WP67001130 Whirlpool Refrigerator White Button Plug
36MAY 29936-2
