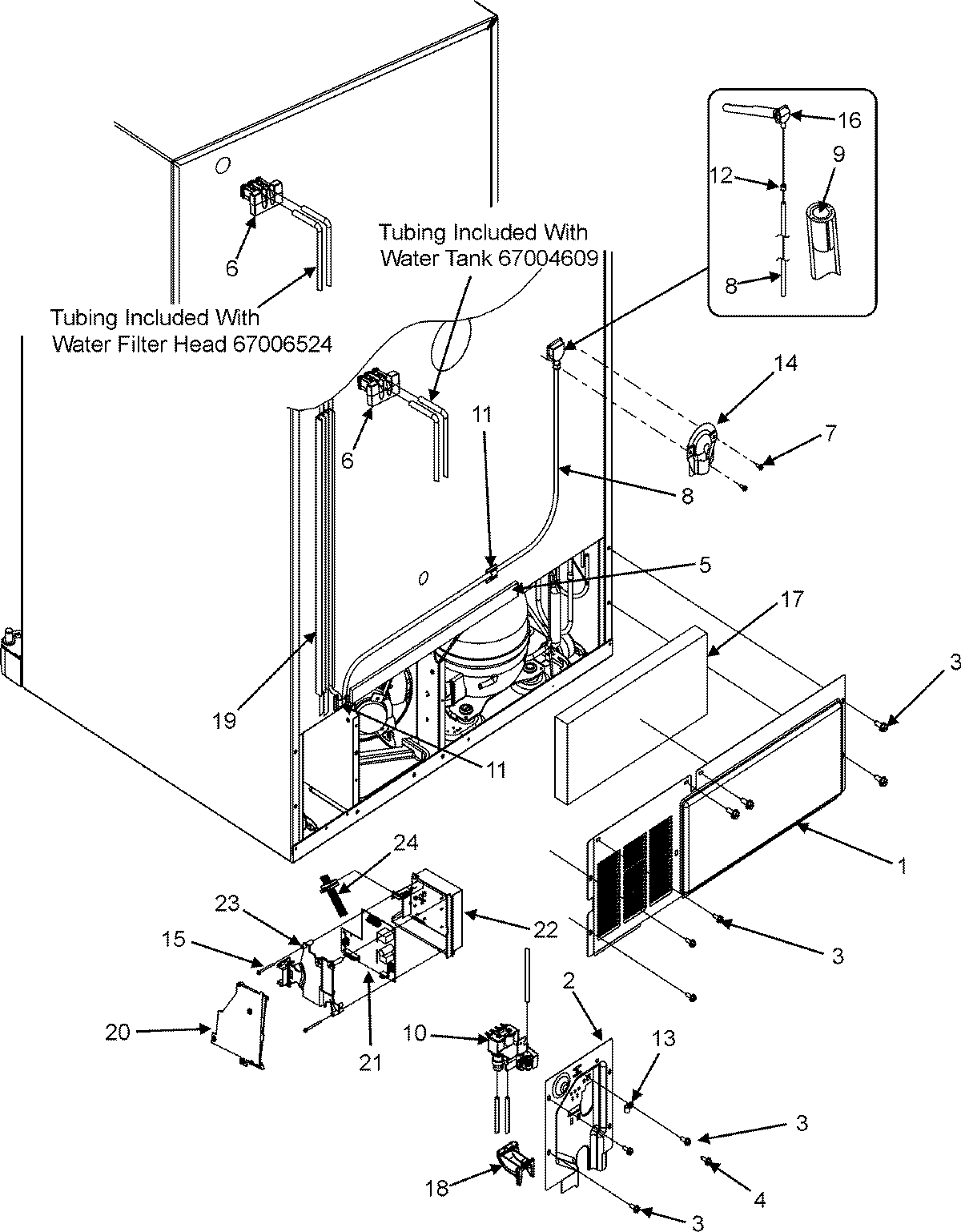

JBD2286KEB 01 – CABINET BACK

Products

Position	Product
1	MAY 67006101
2	MAY 67004611
3	Screw (10)
4	MAY 67006662
5	Gasket
6	WP12777701 Whirlpool Refrigerator Filler Block
7	WP98165 Whirlpool Screw
8	Tubing, Plastic
9	MAY A3223101
10	WP67006531 Whirlpool Water Inlet Valve
11	WPM0104106 Whirlpool Refrigerator Clip
12	Clip
13	W10833902 Whirlpool Refrigerator Clamp
14	COVER, WATER LINE
15	MAY 67005420
16	ELBOW, FILL TUBE
17	67003796 Whirlpool Refrigerator Fiber Acoustic
18	12831101 Whirlpool Refrigerator Tube Clamp
19	TRACK, WATERLINE
20	MAY 67005421
20	MAY 67006615
21	MAY 67007021
22	BOX, HV CONTROL
23	SPACER, HV BOX
24	MAY 12972901
25	MAY M0104102
26	WP67006506 Whirlpool Refrigerator Power Cord
