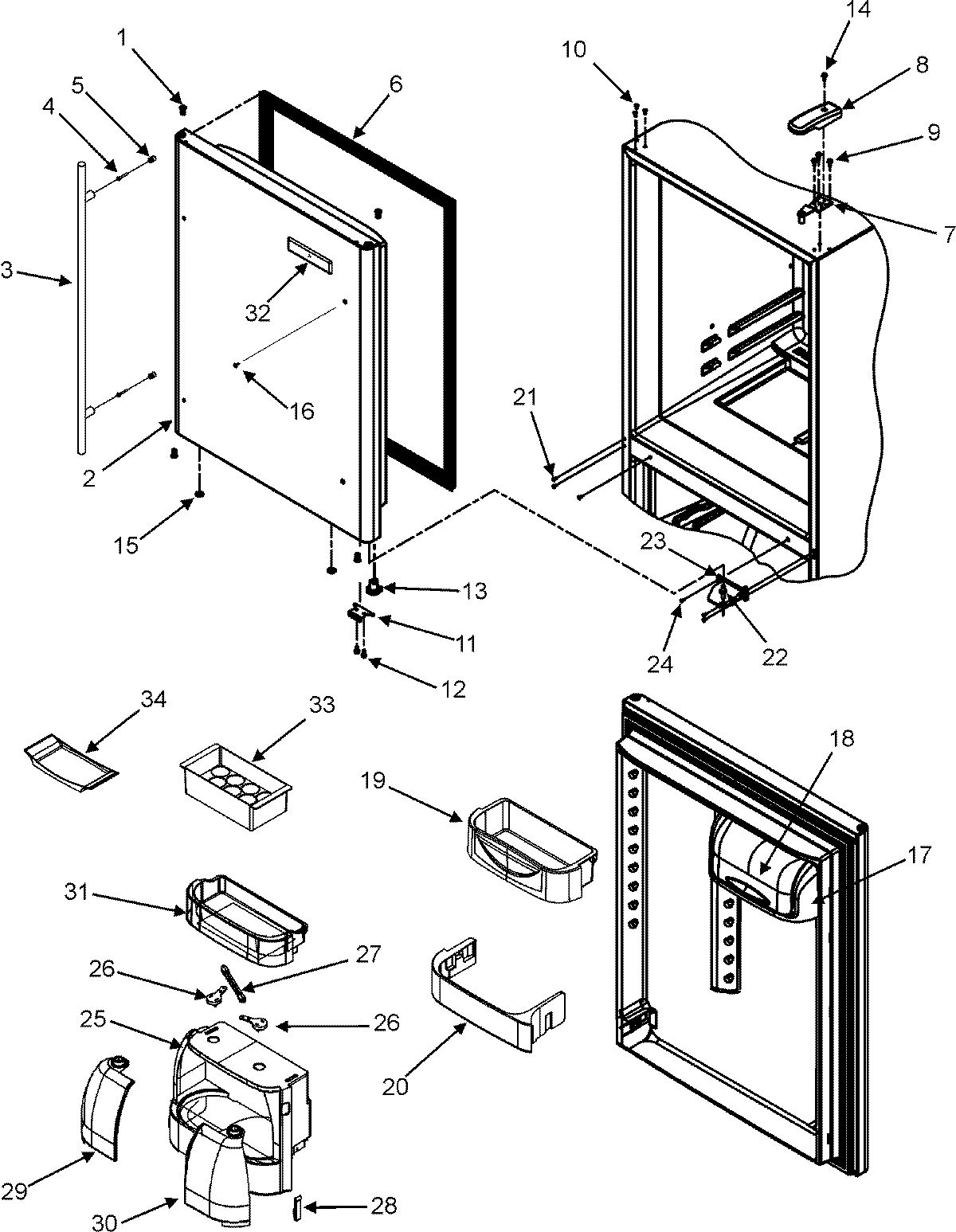

JBD2286KEB 11 – REFRIGERATOR DOOR

JBD2286KEB 11 – REFRIGERATOR DOOR

Written by

in

JBD2286KEB 11 – REFRIGERATOR DOOR

Products

PositionProduct
167004978 Whirlpool Refrigerator Black Door Bushing
2Door, Refrigerator (Black)
3Handle, Door (Stainless)
4SCREW
5MAY 67006109
6WPW10436248 Whirlpool Door Gasket
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9WP489349 Whirlpool Refrigerator Screw
10MAY M0310731
11W11708403 Whirlpool Door Stop
12WP98165 Whirlpool Screw
13WP67003639 Whirlpool Refrigerator Closer
14WP8281196 Whirlpool Screw
1567004838 Whirlpool Refrigerator Button Vent Plug
16WP12246608 Whirlpool Refrigerator Button
17WP67001279 Whirlpool Refrigerator Dairy Tray
18WP67003637 Whirlpool Dairy Door
1967004040 Whirlpool Refrigerator Bucket Door
20Retainer, Chiller
22WP67006642 Whirlpool Refrigerator Pin
23WP12607104ED Whirlpool Refrigerator Door Hinge
24WP67006380 Whirlpool Screw
25MAY 67004597
26Linkage, Chiller (4)
27MAY 67004601
28MAY 67004602
29MAY 67004599
30MAY 67004598
31MAY 67004600
3212848704 Whirlpool Refrigerator Nameplate
33MAY 67215-2
34MAY 29936-2
