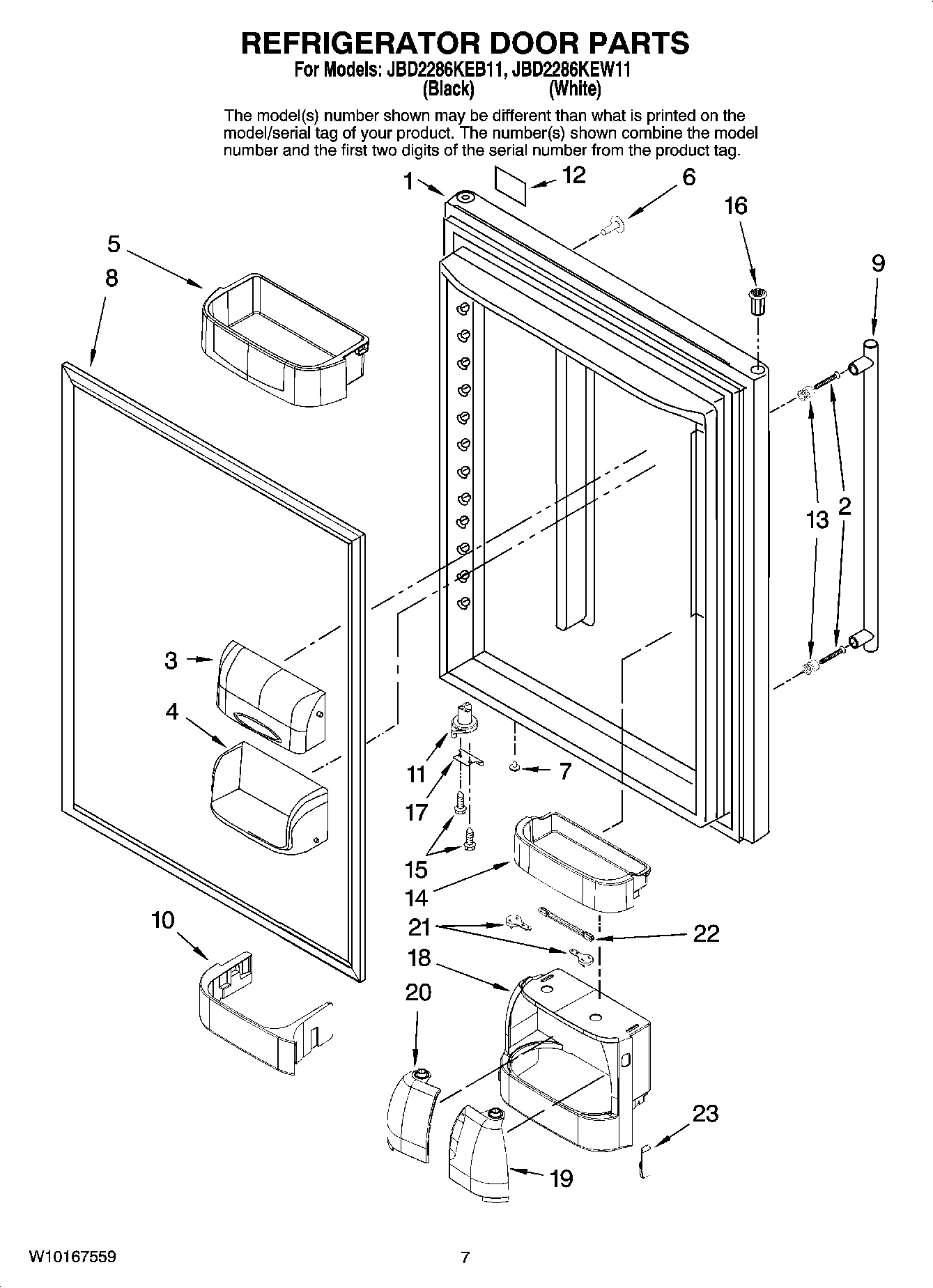

JBD2286KEB11 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Black)
1	Door, Refrigerator (White)
2	SCREW, HANDLE
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	67004040 Whirlpool Refrigerator Bucket Door
6	WP12246608 Whirlpool Refrigerator Button
6	WP67001130 Whirlpool Refrigerator White Button Plug
7	67004838 Whirlpool Refrigerator Button Vent Plug
7	10712401 Whirlpool Refrigerator Vent Plug (White)
8	GASKET, REF DOOR (WHT)
8	GASKET, REF DOOR (BLK)
9	Handle, Door (Stainless)
10	Retainer, Chiller
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	12848704 Whirlpool Refrigerator Nameplate
13	MAY 67006109
14	MAY 67004600
15	WP98165 Whirlpool Screw
16	67004978 Whirlpool Refrigerator Black Door Bushing
16	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	MAY 67004597
19	MAY 67004598
20	MAY 67004599
21	Linkage, Chiller (4)
22	MAY 67004601
23	MAY 67004602
