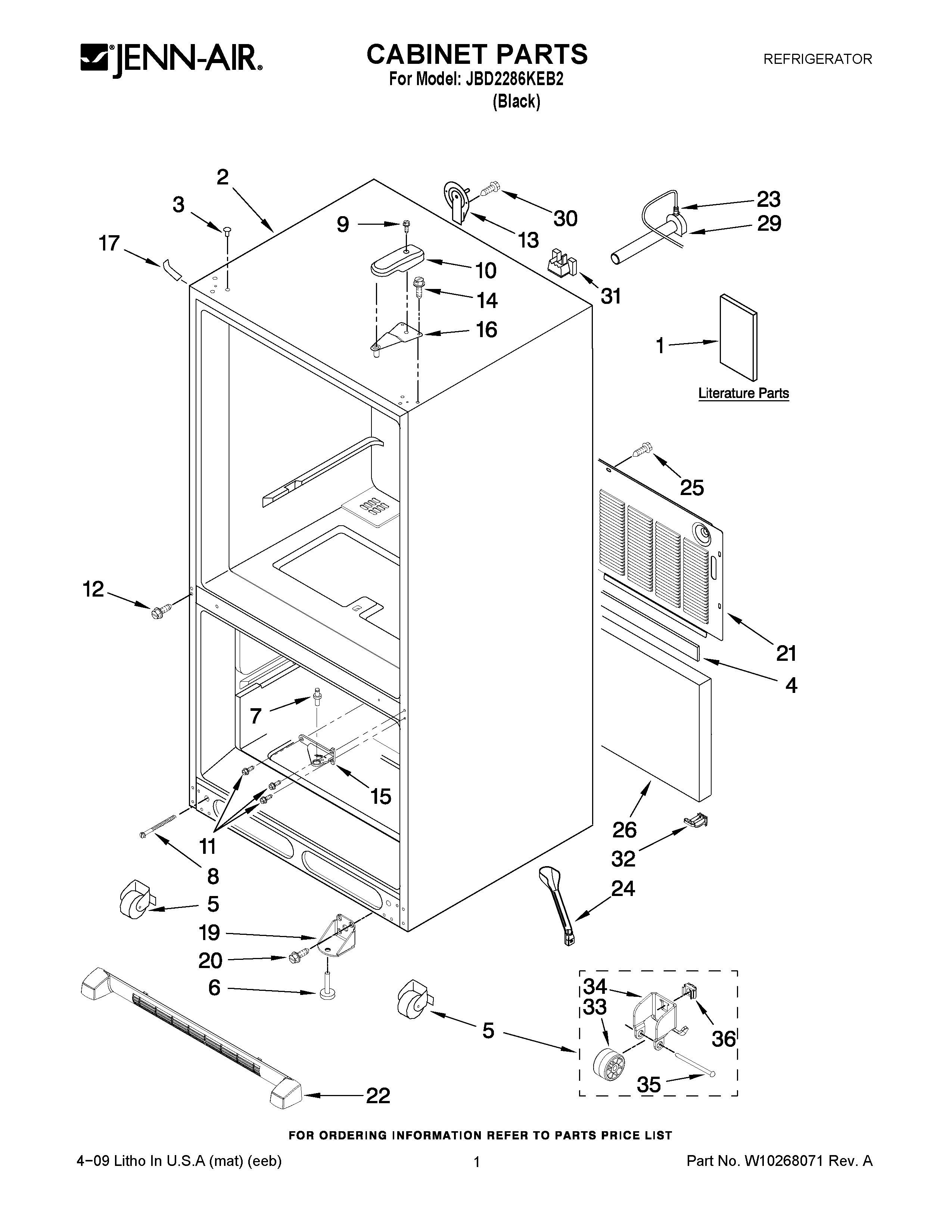

JBD2286KEB2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10238842
1MAY W10183269
1Owners Manual
3MAY M0310731
4Gasket
5ROLLER ASSY.(REAR)
6Foot Brake (2)
7MAY 10351006
8Bolt, Adjusting (Rear)
9MAY 12992602
10COVER, HINGE(BLACK)
11SCREW (6)
12MAY 12990513
13MAY 12726003
14SCREW (6)
15MAY 12607103ED
16Hinge, Top
17COVER, CORNER (BLACK)
19Bracket, Foot
20Screw (8)
21MAY W10210980
22MAY W10236196
23CLIP
24MAY W10210988
25SCREW (10)
26Insulation, Sound
29MAY 10463203SP
30MAY 12990504
31MAY 12777701
32MAY 12831101
33ROLLER (2)
34BRACKET, FOOT
35MAY M1205302
36MAY M0286708
