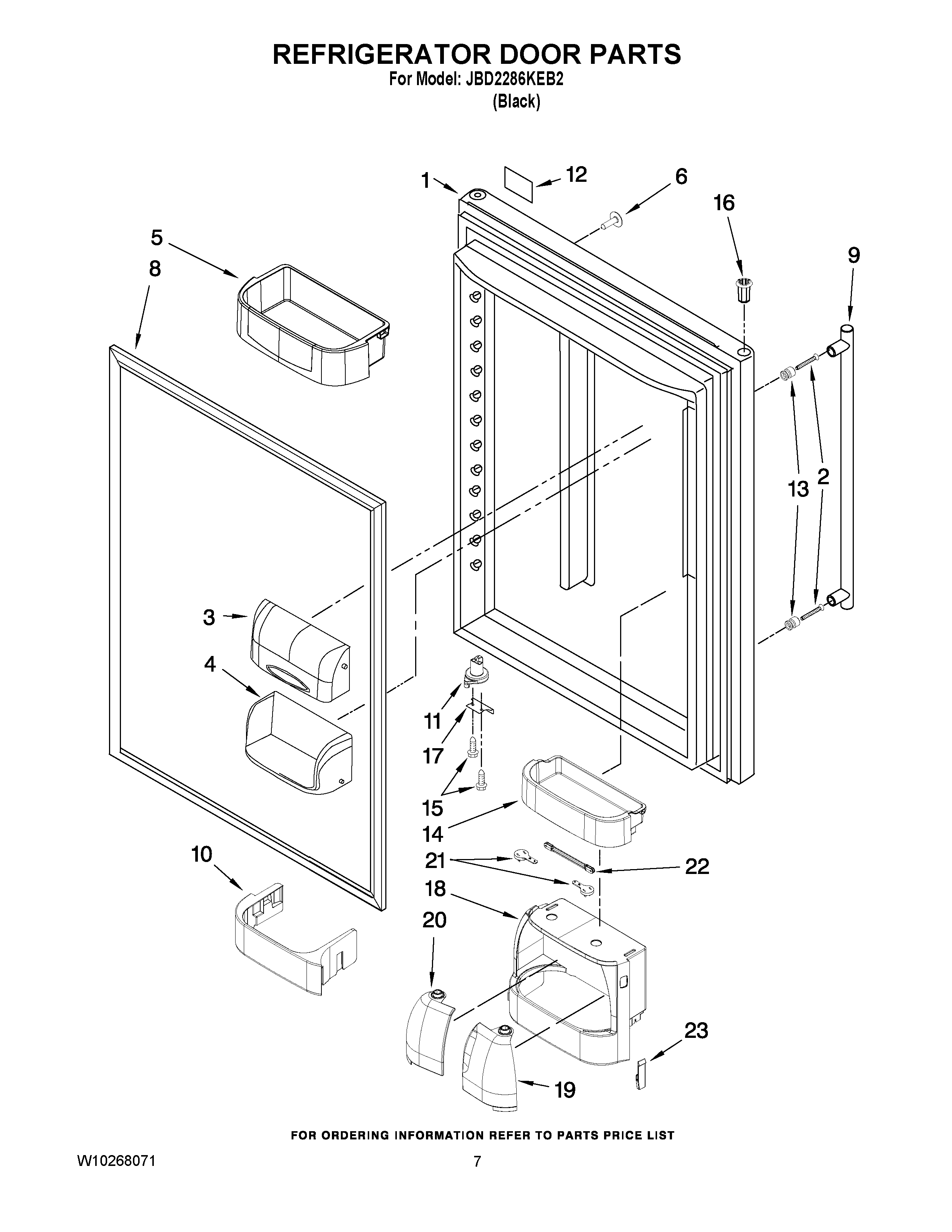

JBD2286KEB2 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (BLACK)
2	Screw, Handle
3	MAY 12804701SP
4	MAY 12369502
5	MAY 12801902V
6	PLUG, BUTTON (BLACK)
8	GASKET, DOOR MAGNETIC (BLACK)
9	HANDLE, DOOR (STAINLESS)
10	MAY 12805701
11	MAY 12028505B
12	12848704 Whirlpool Refrigerator Nameplate
13	MAY 12945201
14	MAY 12830302SP
15	MAY 12990504
16	Bushing (Black)
17	Stop, Door (Black)
18	MAY 12805801SP
19	MAY 12805301SP
20	MAY 12805402SP
21	MAY 12568401SP
22	MAY 12568502SP
23	MAY 12827501SP
