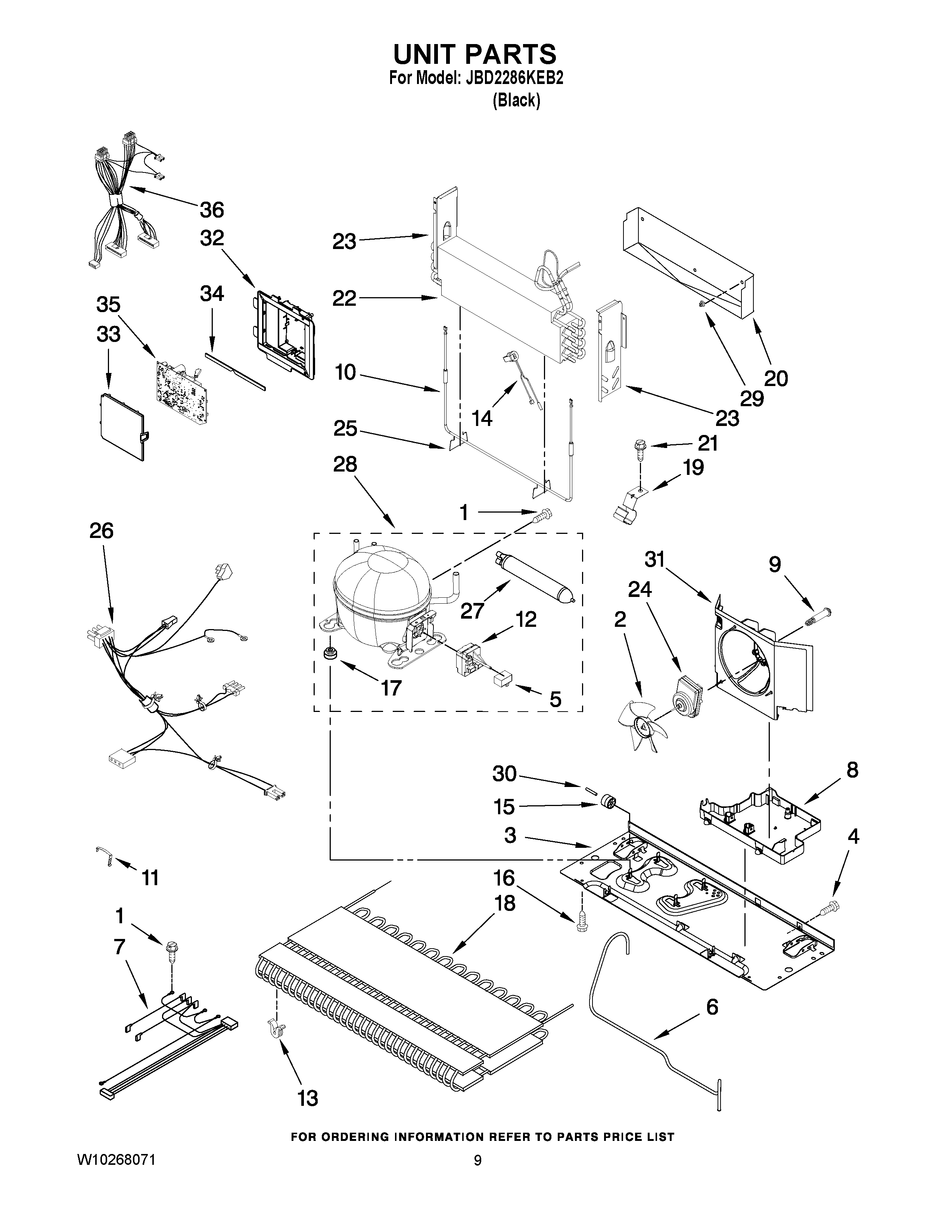

JBD2286KEB2 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210983
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10217745
7	MAY W10222805
8	Drain Pan
9	MAY W10216919
10	MAY 12729128
11	MAY W10174384
12	START PROTECT, COMBO (PRODUCTION)
13	GROMMET, COND (4)
14	Thermostat
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135027
19	MAY 10547003
20	MAY 12225402WD
21	MAY 12990701
22	MAY 12726402
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY 12825101
25	W11673433 Whirlpool Clip
26	MAY W10234025
27	Drier
28	COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	MAY W10257665
33	LID, HV BOX
34	GASKET-HV BOX
35	BOARD, CONTROL
36	MAY W10259909
