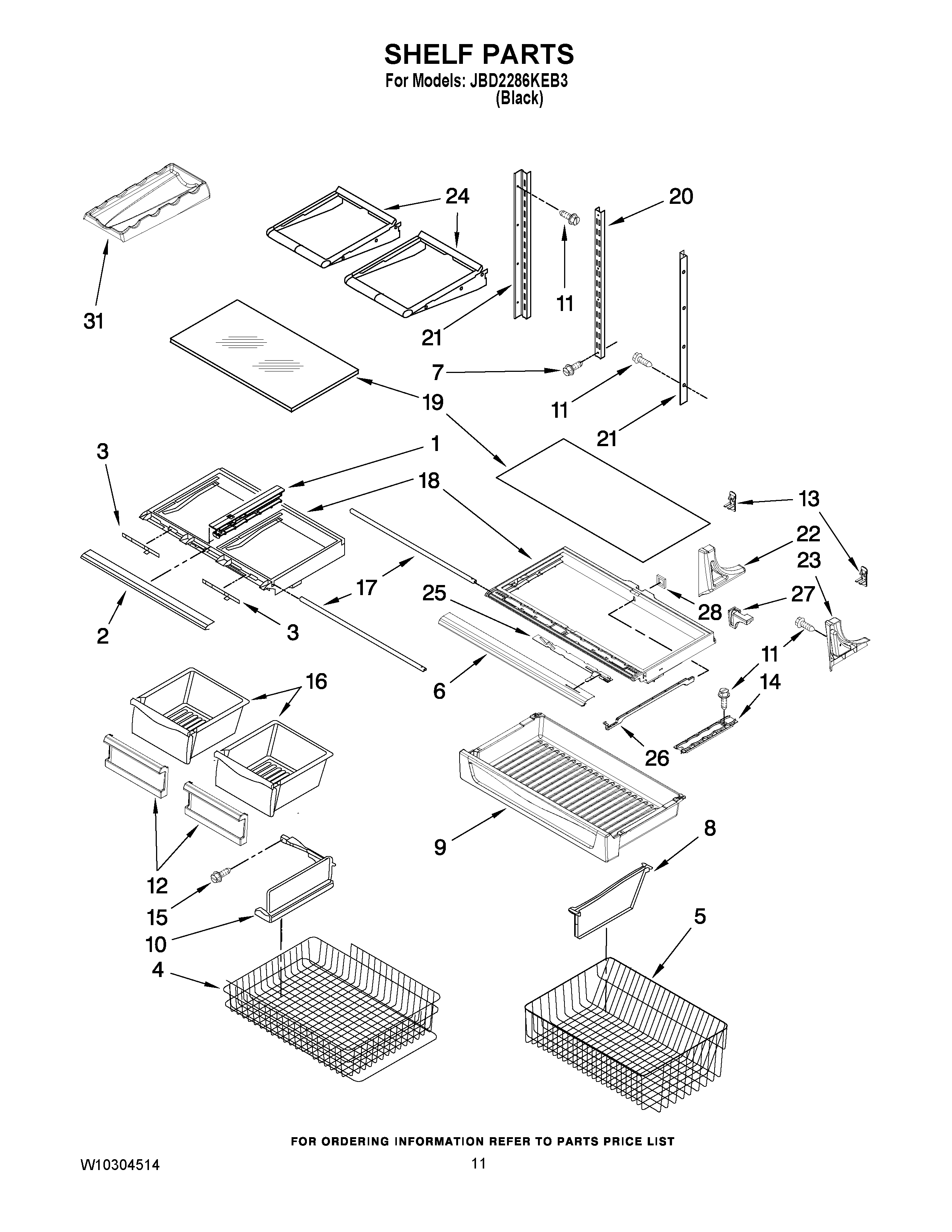

JBD2286KEB3 06 – SHELF PARTS

JBD2286KEB3 06 – SHELF PARTS

Written by

in

JBD2286KEB3 06 – SHELF PARTS

Products

Position	Product
1	Rail, Center Crisper
2	TRIM, CRISPER
3	MAY 12530805SP
4	BASKET, FREEZER UPPER
5	MAY 13016002
6	TRIM-PANTRY-FRONT
7	MAY 12990515
8	DIVIDER, BASKET LOWER
9	MAY 12645017
10	MAY 12693802N
11	MAY 12990513
12	FRONT, CRISPER
13	HOOK-LADDER (2)
14	TRACK, PANTRY
15	MAY 12990601N
16	MAY 12530505SP
17	BRACE, CRISPER FRAME
18	FRAME, CRISPER
19	MAY 12204822
20	MAY W10273463
21	MAY W10251969
22	SUPPORT-LEFT
23	SUPPORT-RIGHT
24	MAY 12463310V
25	Slide,Pantry
26	MAY 12531401
27	MAY 12531601
28	MAY 12531701
31	MAY 10448903N
