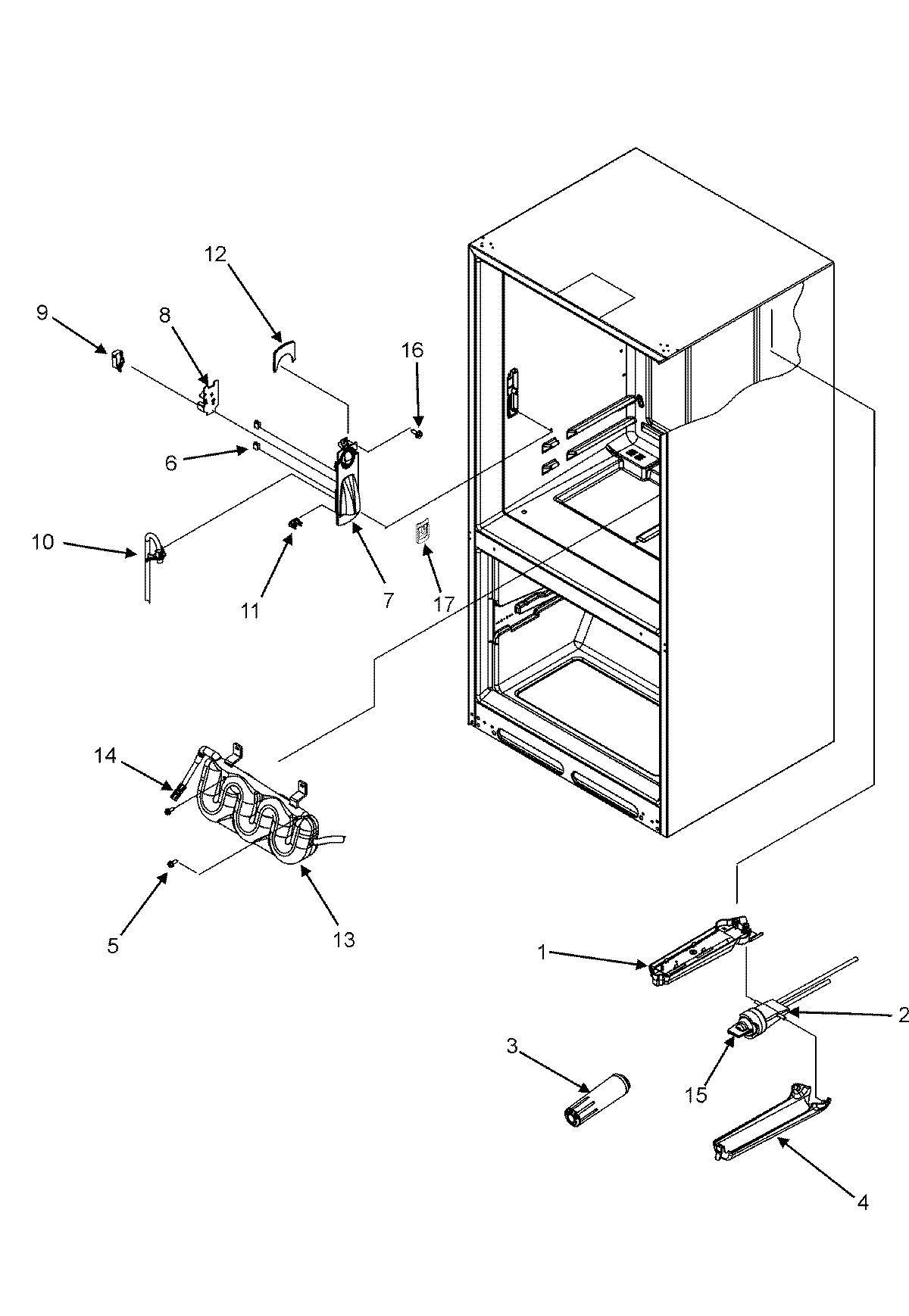

JBD2286KEW 14 – WATER DISPENSER/FILTER/TANK/VENT COVER

Products

PositionProduct
1PLATE-FIL
2WP67006524 Whirlpool Refrigerator Housing
3MAY 67006467
4WP12568001 Whirlpool Filter Cover
6Clip, Facade (2)
7FACADE, DISPENSER
812707303SP Whirlpool Refrigerator Plate
9WP12575501 Whirlpool Refrigerator Micro Switch
10MAY 67003827
1167002816 Whirlpool Refrigerator Waterline Clip
12W11519867 Whirlpool Refrigerator Cover
13MAY 67004609
14WP2300868 Whirlpool Refrigerator Fitting
15MAY 12664501
16MAY 67006400
17SUMP, TRAY
18COVER, CHILLER VENT
