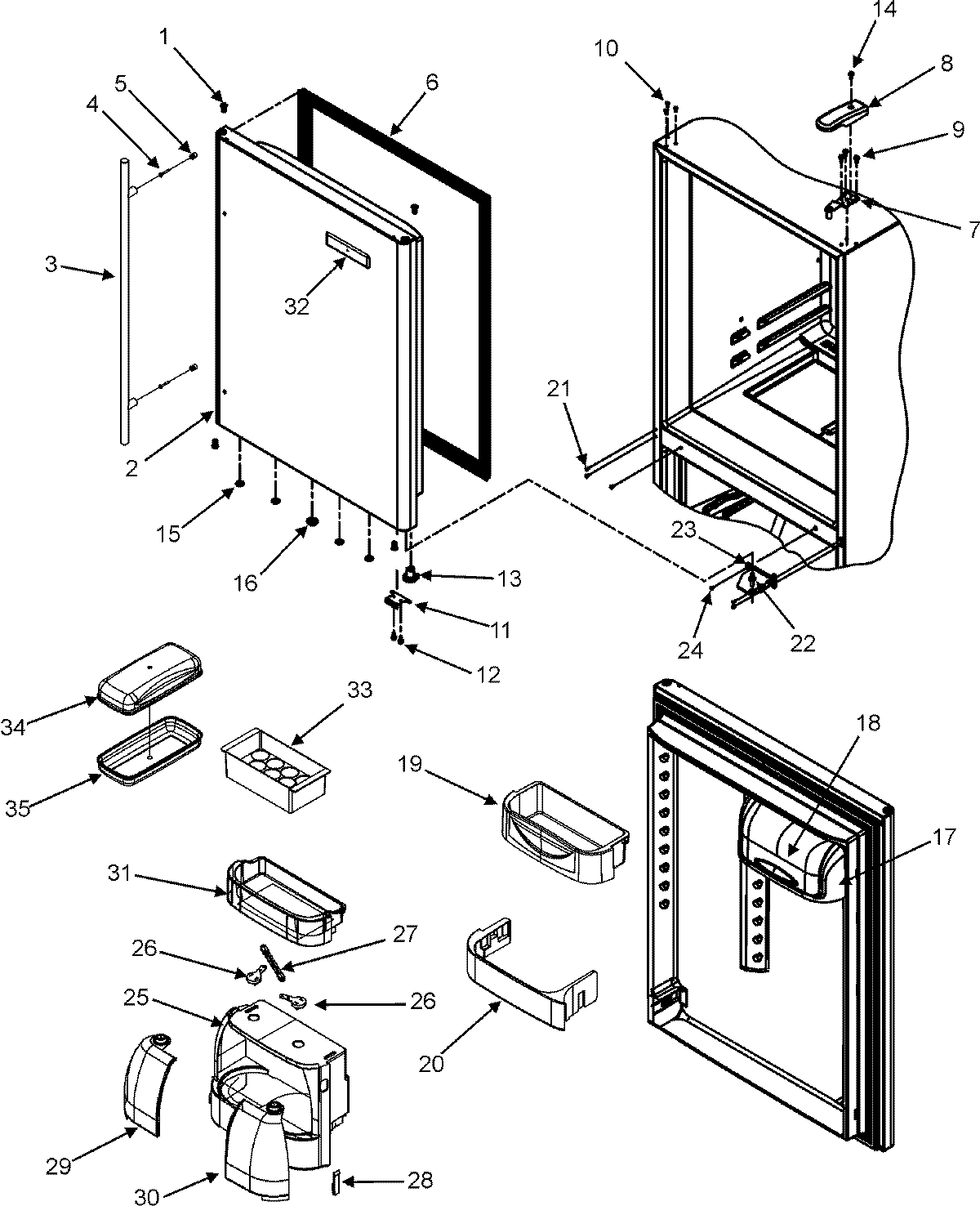

JBL2088HES 10 – REFRIGERATOR DOOR

Products

Position	Product
1	67004978 Whirlpool Refrigerator Black Door Bushing
2	MAY W10134520
2	MAY 67004716
3	MAY 67003394
4	340184 Whirlpool Screw
5	MAY 67003114
6	W10849442 Whirlpool Refrigerator FIP Gasket
7	WP12566606ED Whirlpool Refrigerator Door Hinge
8	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9	MAY M0238731
10	MAY M0310731
11	W11708403 Whirlpool Door Stop
12	MAY M0211533
13	WP67003639 Whirlpool Refrigerator Closer
14	WP8281196 Whirlpool Screw
15	67004838 Whirlpool Refrigerator Button Vent Plug
16	MAY A3080001
17	WP67001279 Whirlpool Refrigerator Dairy Tray
18	WP67003637 Whirlpool Dairy Door
19	MAY 67004718
20	MAY 67004717
22	WP67006642 Whirlpool Refrigerator Pin
23	WP12607104ED Whirlpool Refrigerator Door Hinge
24	WP489349 Whirlpool Refrigerator Screw
25	MAY 67004720
26	Linkage, Chiller (4)
27	MAY 67004601
28	MAY 67004602
29	MAY 67004719
30	MAY 67004598
31	MAY 67004721
32	12848704 Whirlpool Refrigerator Nameplate
33	MAY 67215-2
34	MAY 67004405
35	MAY 67004404
