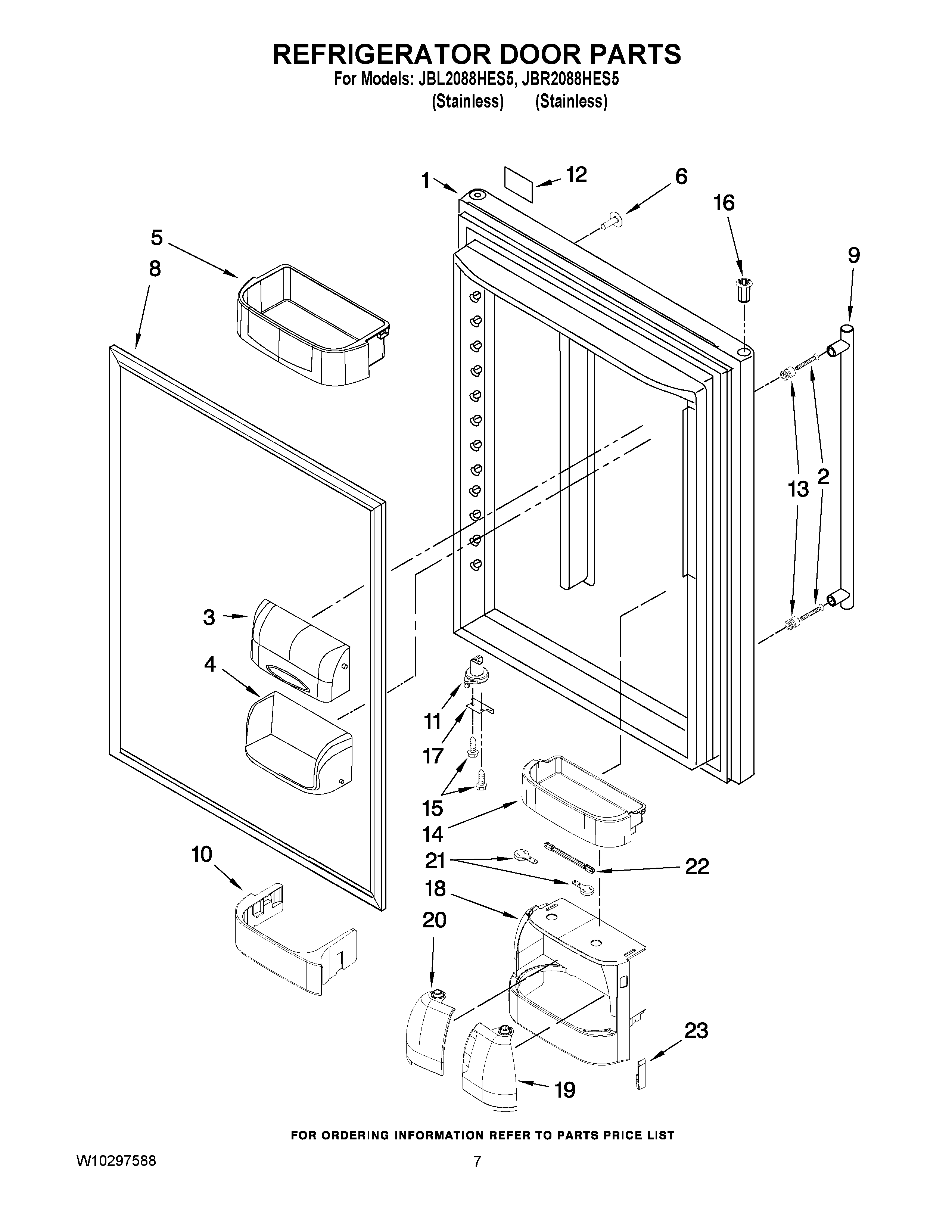

JBL2088HES5 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 13023894SQ
1	MAY 13023896SQ
2	Screw, Handle
3	MAY 12804701SP
4	MAY 12369502SP
5	MAY 12801905
6	WHITE
8	DOOR GASKET, MAGNETIC (BLACK)
9	HANDLE (STAINLESS STEEL)
10	MAY 12819901
11	MAY 12028505B
12	12848704 Whirlpool Refrigerator Nameplate
13	MAY 12945201
14	MAY 12830301SP
15	MAY 12990504
16	Bushing (Black)
17	Stop, Door (Black)
18	MAY 12805901SP
19	MAY 12805301SP
20	MAY 12805403SP
21	MAY 12568401SP
22	MAY 12568502SP
23	MAY 12827501SP
