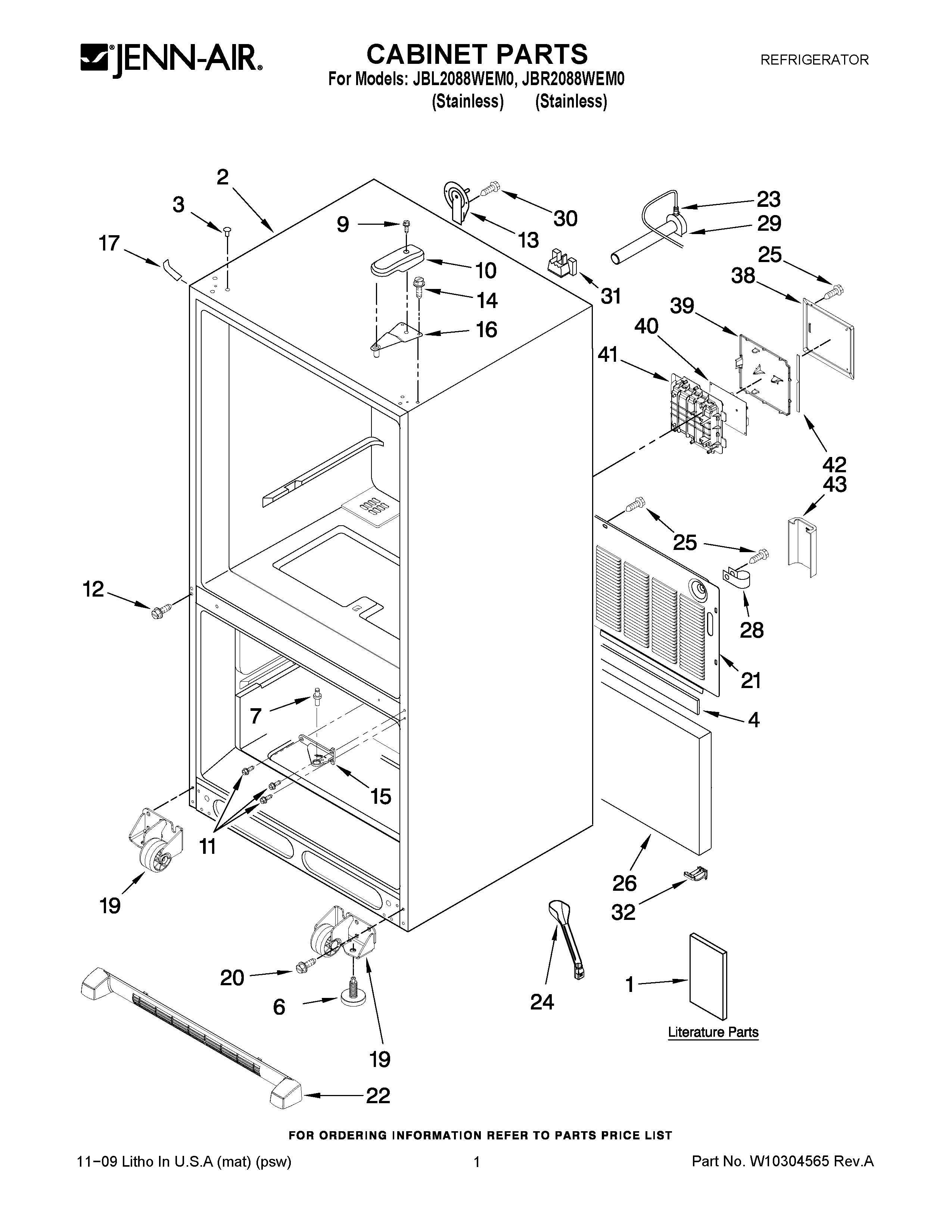

JBL2088WEM0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10279331
1	MAY W10277506
1	MAY W10292726
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
4	MAY B5759655
6	Brake, Foot
7	MAY 10351006
9	MAY 12992602
10	COVER, HINGE (APOLLO GREY)
11	SCREW (6)
12	MAY 12990513
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER (APOLLO GREY)
16	MAY 12626912ED
17	COVER, CORNER (GREY)
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY W10211855
22	GRILLE, TOE (GREY)
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY 10463203SP
30	MAY 12990504
31	MAY 12777701
32	MAY 12831101
38	MAY 12961602
39	LID, HV BOX
40	BOARD, CONTROL
41	MAY W10257665
42	GASKET-HV BOX
43	GUARD-WATER VALVE
