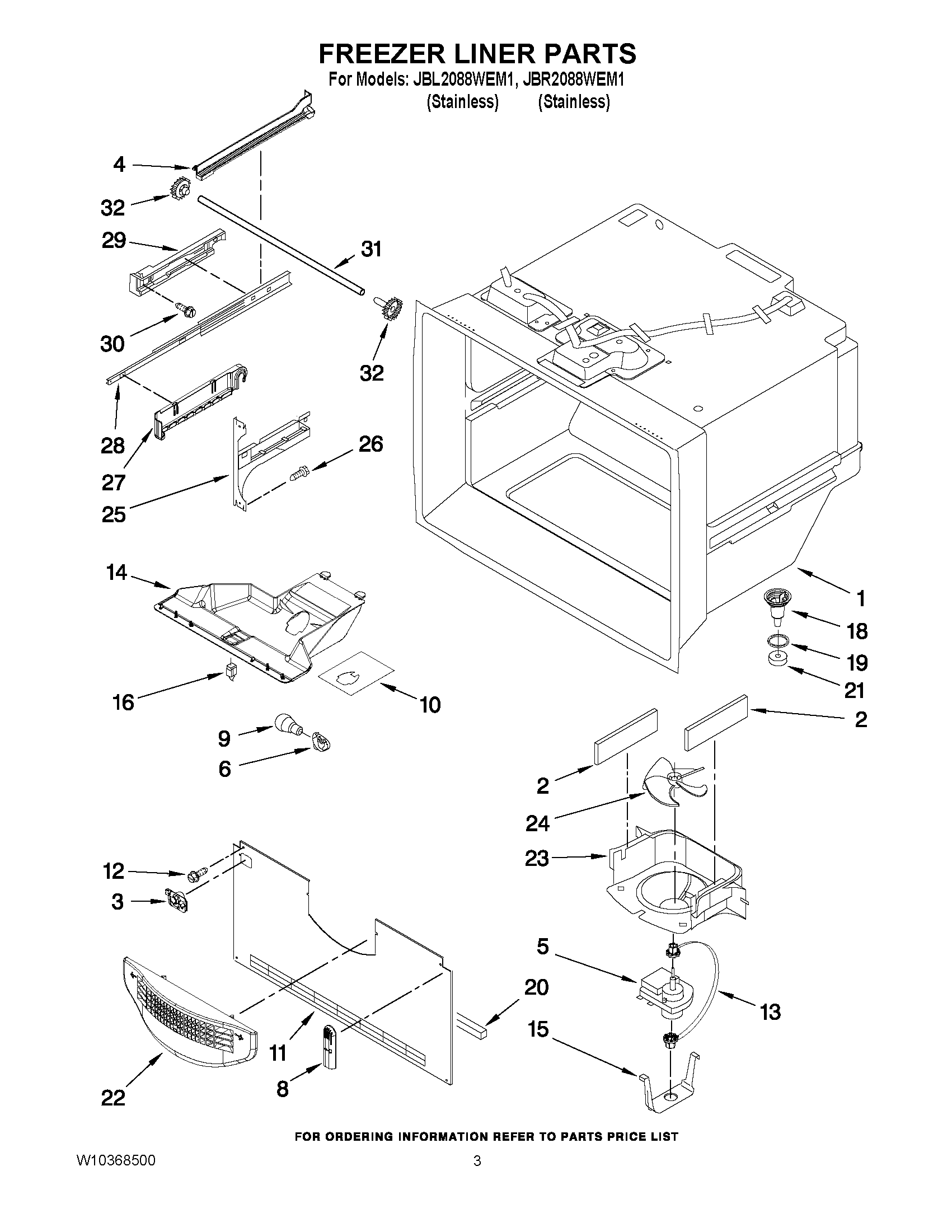

JBL2088WEM1 02 – FREEZER LINER PARTS

JBL2088WEM1 02 – FREEZER LINER PARTS

Written by

in

JBL2088WEM1 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
4MAY W10284697
4MAY W10284696
5MAY W10128551
6Socket, Light
8MAY 12815301
9BULB, LIGHT (2)
10FOIL-FZ LIGHT
11MAY W10308416
12SCREW (10)
13MAY W10121318
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
18MAY D7753903
19MAY M0500703
20GASKET, BOTTOM
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10119295
25MAY W10119064
26Screw (8)
27CRADLE, BASKET (RIGHT)
27CRADLE, BASKET (LEFT)
28Slide, Drawer (2)
29BRACKET, SLIDE (LEFT)
29BRACKET, SLIDE (RIGHT)
30Screw (6)
31SHAFT
3212002497 Whirlpool Refrigerator Drawer Gear Kit
