JBL2256HES 07 – FREEZER SHELVES

JBL2256HES 07 – FREEZER SHELVES

Written by

in

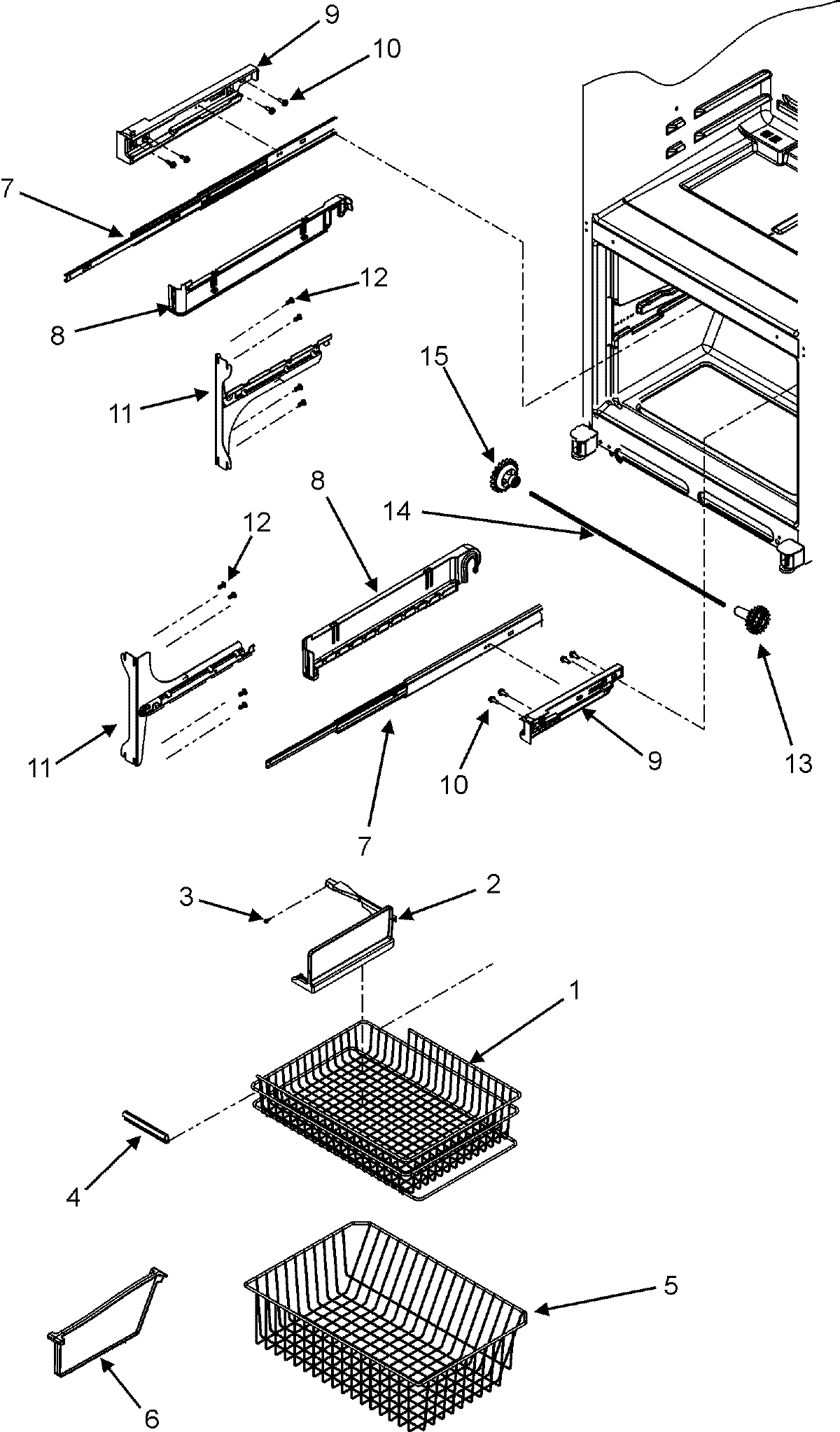

JBL2256HES 07 – FREEZER SHELVES

Products

PositionProduct
1MAY 67002918
2MAY 67001723
3MAY 67001310
4HANDLE, BASKET/SHELF
5MAY 67004260
6MAY 67004064
7MAY 67004065
8WPW10280613 Whirlpool Refrigerator Bracket
8WPW10280608 Whirlpool Refrigerator Bracket
9MAY 67004010
9MAY 67004011
10SCREW 1“
11BRACKET, DRAWER SLIDE (LT)
11BRACKET, DRAWER SLIDE (RT)
12MAY M0211018
13MAY 67004066
14SHAFT, RACK
15MAY 67004016
