JBL2286KES 07 – FREEZER SHELVES

JBL2286KES 07 – FREEZER SHELVES

Written by

in

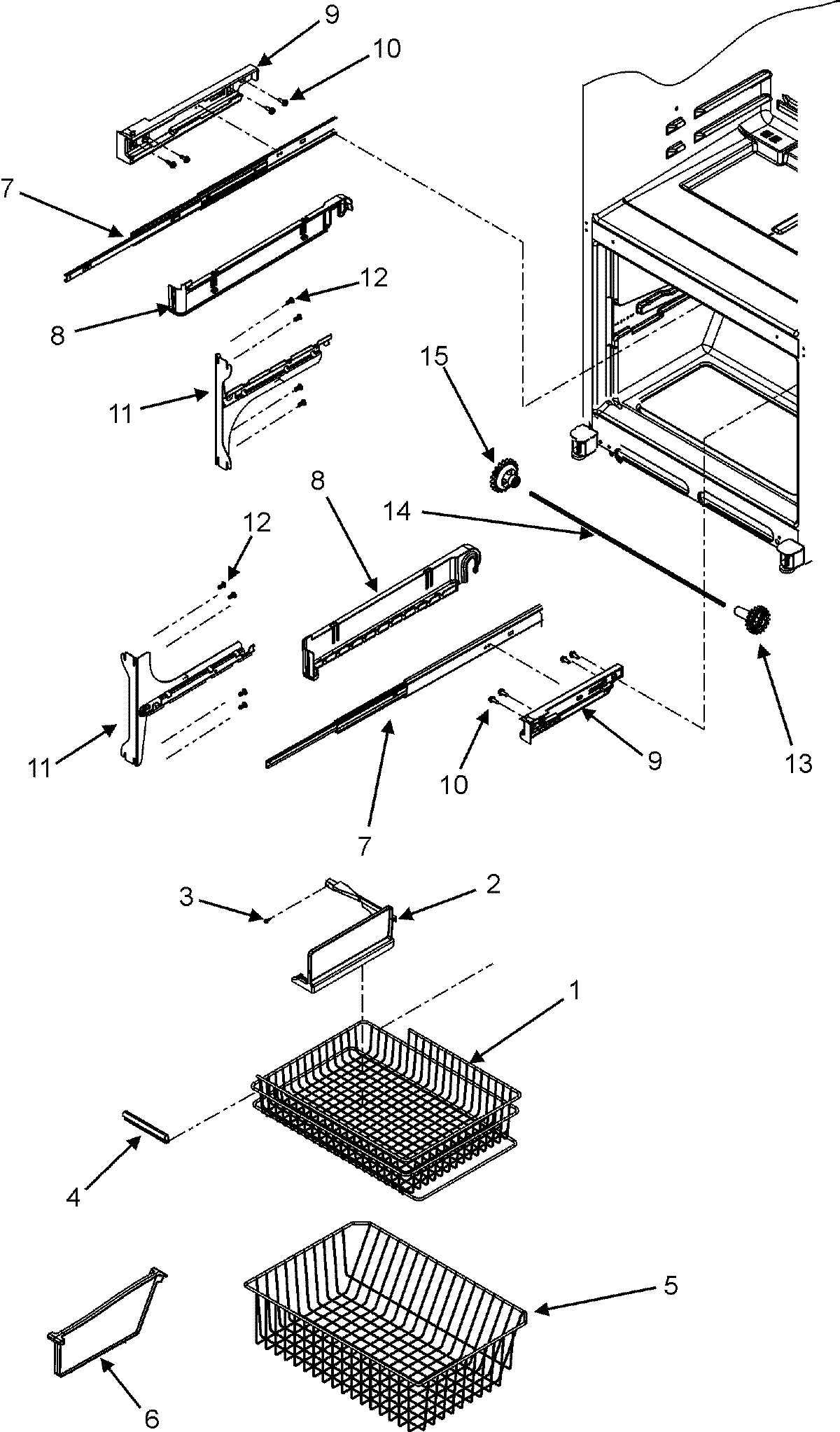

JBL2286KES 07 – FREEZER SHELVES

Products

PositionProduct
2Divider, Upper Basket
3MAY 67006608
4HANDLE, BASKET/SHELF
5MAY 67006024
6Divider, Lower Basket
7W11658402 Whirlpool Drawer Slide Rail
8WPW10280608 Whirlpool Refrigerator Bracket
8WPW10280613 Whirlpool Refrigerator Bracket
9ADAPTER, SIDE (RT)
9ADAPTER, SIDE (LT)
10Screw (6)
11BRACKET, DRAWER SLIDE (RT)
11BRACKET, DRAWER SLIDE (LT)
12Screw (8)
13GEAR (RT)
14SHAFT, RACK
15GEAR (LT)
