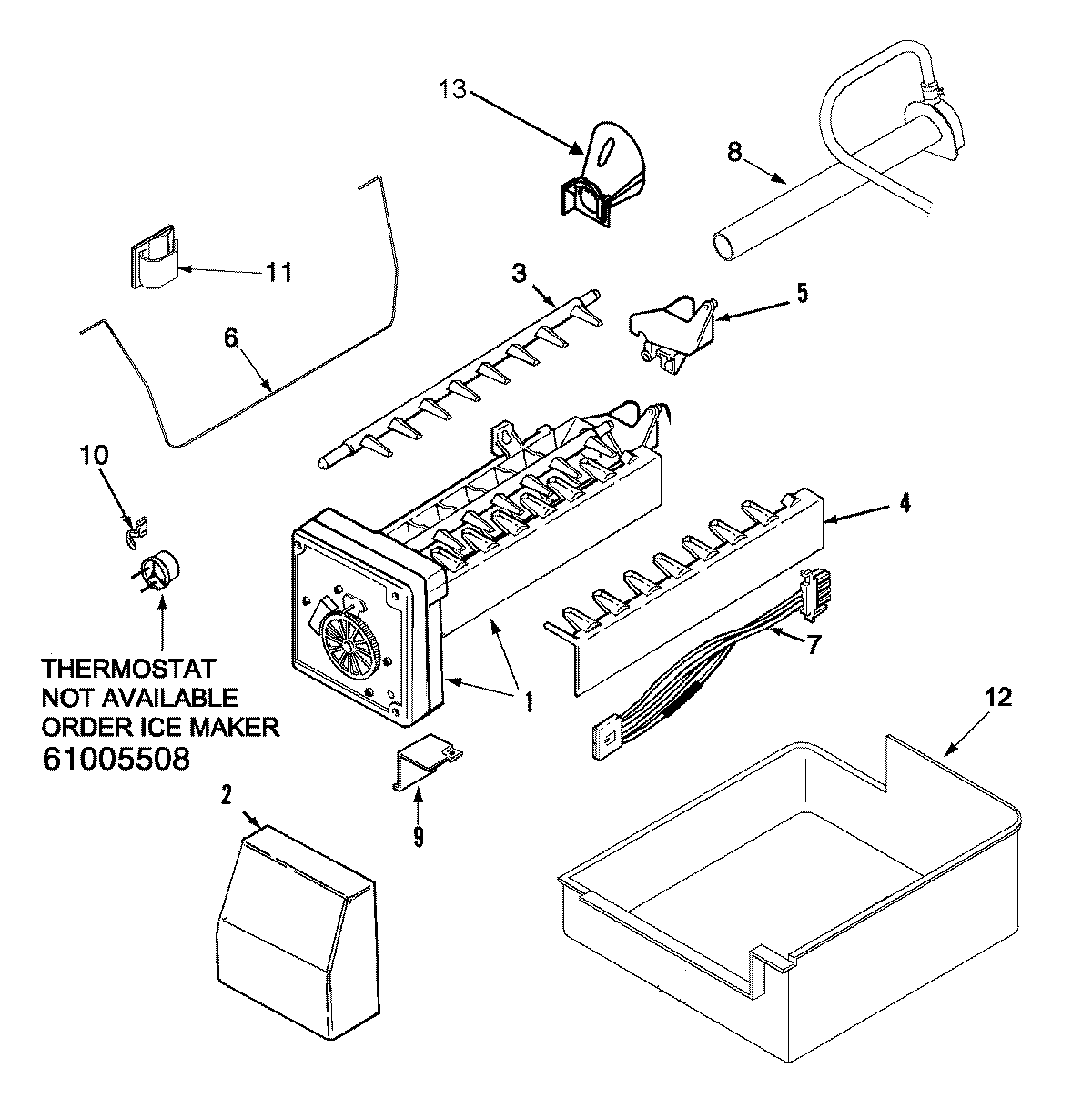

JBL2286KES 08 – ICE MAKER

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	WP2256087 Whirlpool Refrigerator Bracket
1	WP98165 Whirlpool Screw
2	WPW10289690 Whirlpool Ice Maker Cover
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP628356 Whirlpool Refrigerator Fill Cup
6	ARM-SHUT
7	WPD7813010 Whirlpool Refrigerator Wire Harness
8	ELBOW, FILL TUBE
9	BRACKET, MODULE & HEATER
9	MAY 95108-1
10	WP2315522 Whirlpool Refrigerator Clip
11	WPM0104106 Whirlpool Refrigerator Clip
12	WP67001255 Whirlpool Ice Bucket
13	MAY 67005603
14	W11033771 Whirlpool Refrigerator Coupling
15	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
