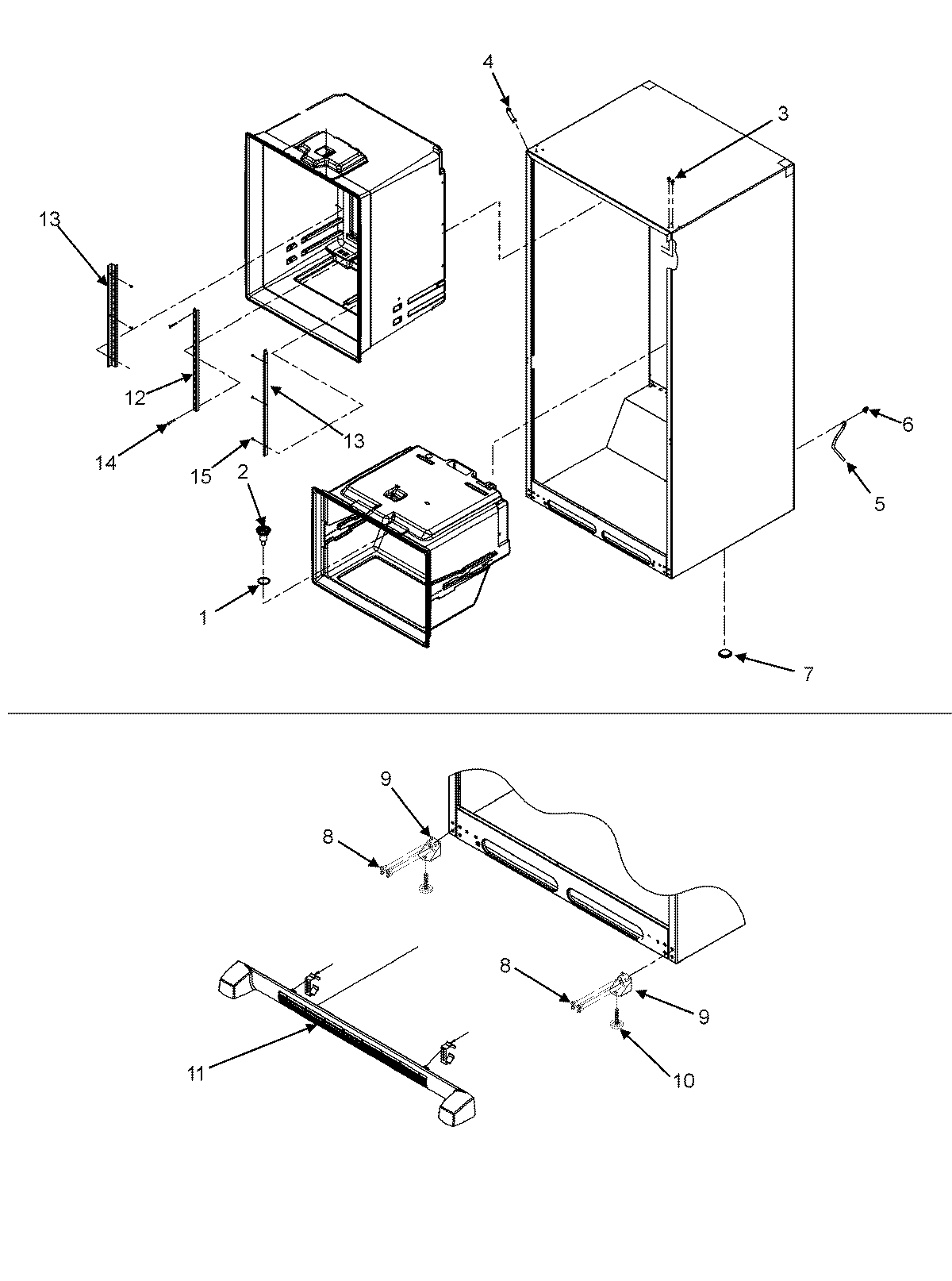

JBL2286KES 09 – INTERIOR CABINET & TOE GRILLE

JBL2286KES 09 – INTERIOR CABINET & TOE GRILLE

Written by

in

JBL2286KES 09 – INTERIOR CABINET & TOE GRILLE

Products

PositionProduct
1Gasket
1MAY M0500703
2MAY D7753903
3MAY A4539607
467003485 Whirlpool Refrigerator Corner Cover (Black)
5MAY 67001066
667001067 Whirlpool Refrigerator Drain Tube Clip
7A3076901 Whirlpool Refrigerator Plug
8MAY 67006564
912906303WD Whirlpool Refrigerator Bracket
10W11177593 Whirlpool Leveling Feet
11Clip, Grille
11WPW10534162 Whirlpool Refrigerator Front Grille
1267001073 Whirlpool Refrigerator Center Ladder
13LADDER, SIDES
14W10709795 Whirlpool Refrigerator Screw
15MAY 67006400
