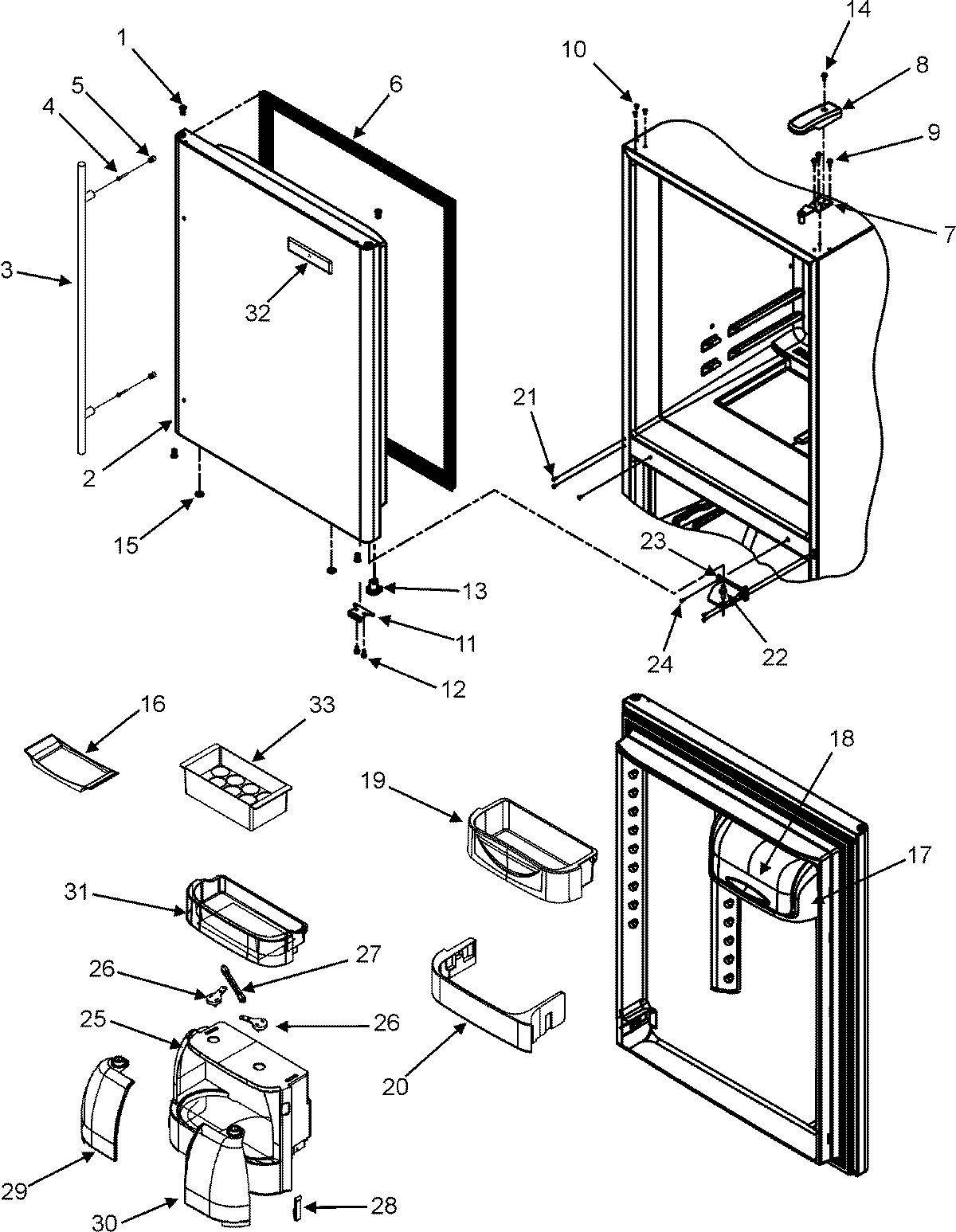

JBL2286KES 11 – REFRIGERATOR DOOR

Products

Position	Product
1	67004978 Whirlpool Refrigerator Black Door Bushing
2	MAY 67005723
3	Handle, Door (Stainless)
4	SCREW
5	MAY 67006109
6	WPW10436248 Whirlpool Door Gasket
7	WP12566606ED Whirlpool Refrigerator Door Hinge
8	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9	WP489349 Whirlpool Refrigerator Screw
10	MAY M0310731
11	W11708403 Whirlpool Door Stop
12	WP98165 Whirlpool Screw
13	WP67003639 Whirlpool Refrigerator Closer
14	WP8281196 Whirlpool Screw
15	67004838 Whirlpool Refrigerator Button Vent Plug
16	MAY 29936-2
17	WP67001279 Whirlpool Refrigerator Dairy Tray
18	WP67003637 Whirlpool Dairy Door
19	67004040 Whirlpool Refrigerator Bucket Door
20	Retainer, Chiller
22	WP67006642 Whirlpool Refrigerator Pin
23	WP12607104ED Whirlpool Refrigerator Door Hinge
24	WP67006380 Whirlpool Screw
25	MAY 67004597
26	Linkage, Chiller (4)
27	MAY 67004601
28	MAY 67004602
29	MAY 67004599
30	MAY 67004598
31	MAY 67004600
32	12848704 Whirlpool Refrigerator Nameplate
33	MAY 67215-2
