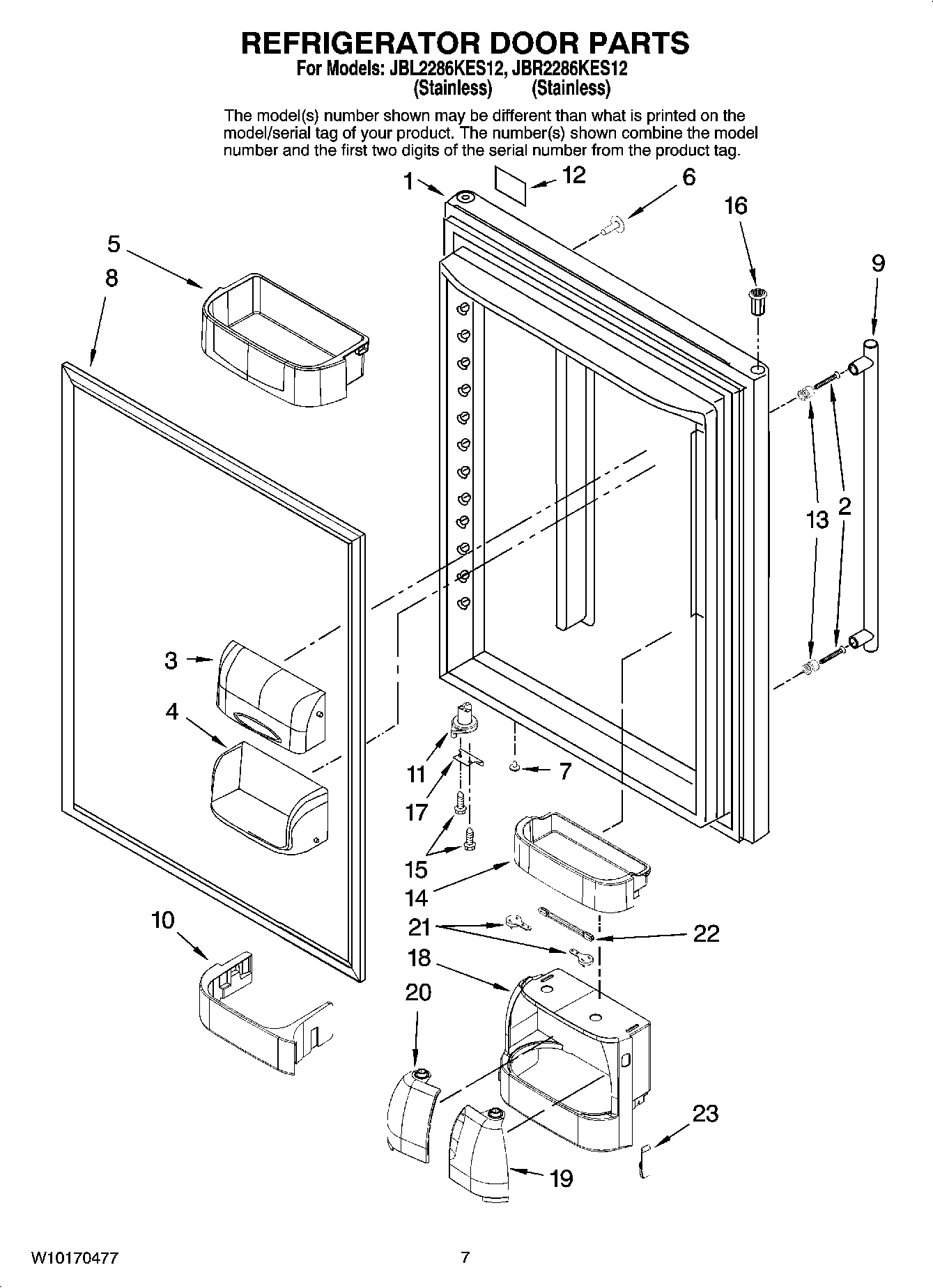

JBL2286KES12 04 – REFRIGERATOR DOOR PARTS

JBL2286KES12 04 – REFRIGERATOR DOOR PARTS

Written by

in

JBL2286KES12 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Stainless (For JBL2286KES12))
1Door, Refrigerator (Stainless (For JBR2286KES12))
2SCREW, HANDLE
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567004040 Whirlpool Refrigerator Bucket Door
6WP12246608 Whirlpool Refrigerator Button
767004838 Whirlpool Refrigerator Button Vent Plug
8GASKET, REF DOOR (BLK)
9Handle, Door (Stainless)
10Retainer, Chiller
11WP67003639 Whirlpool Refrigerator Closer
1212848704 Whirlpool Refrigerator Nameplate
13MAY 67006109
14MAY 67004600
15WP98165 Whirlpool Screw
1667004978 Whirlpool Refrigerator Black Door Bushing
17W11708403 Whirlpool Door Stop
18MAY 67004597
19MAY 67004598
20MAY 67004599
21Linkage, Chiller (4)
22MAY 67004601
23MAY 67004602
